Air Bypass Valve: Removal

  1. Disconnect the air bypass hoses from air bypass valve.

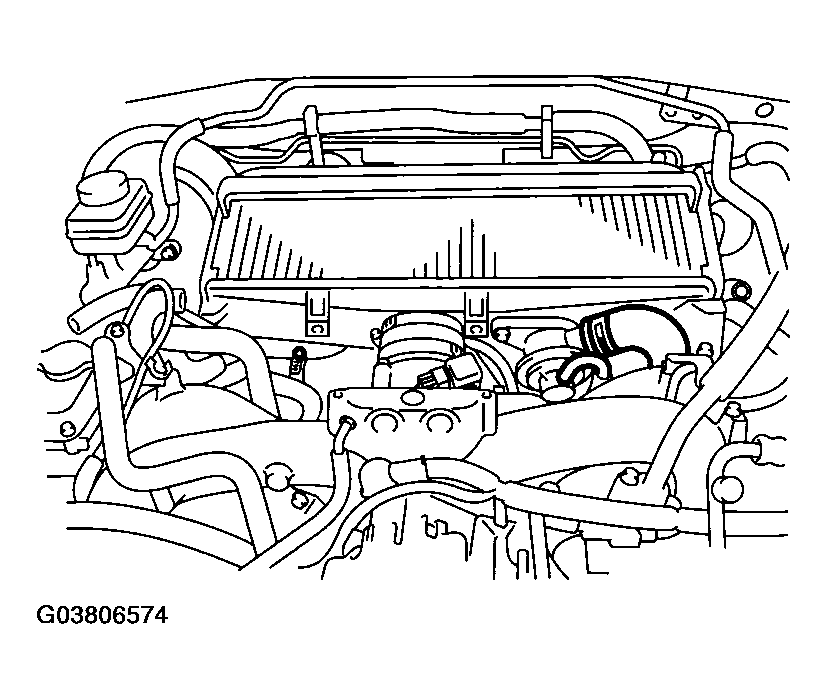

    Fig 1: Disconnecting Air By-Pass Hoses From Air Bypass Valve
    G03806574Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air bypass valve from intercooler.

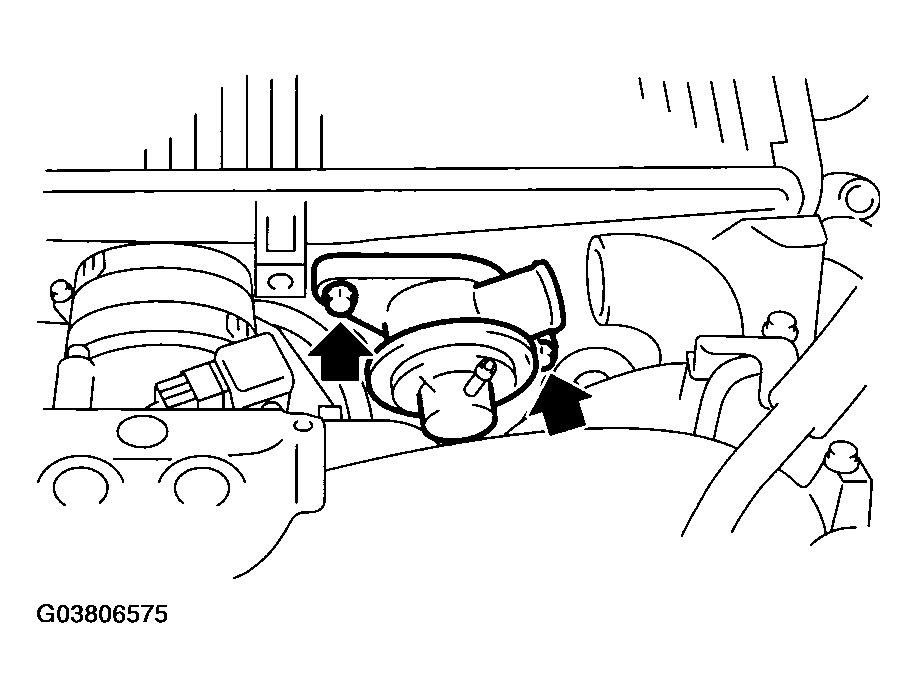

    Fig 2: Removing Air By-Pass Valve From Intercooler
    G03806575Courtesy of SUBARU OF AMERICA, INC.
