Air Bypass Valve: Installation

Install in the reverse order of removal.

NOTE: Install the O-ring in proper position.

Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)

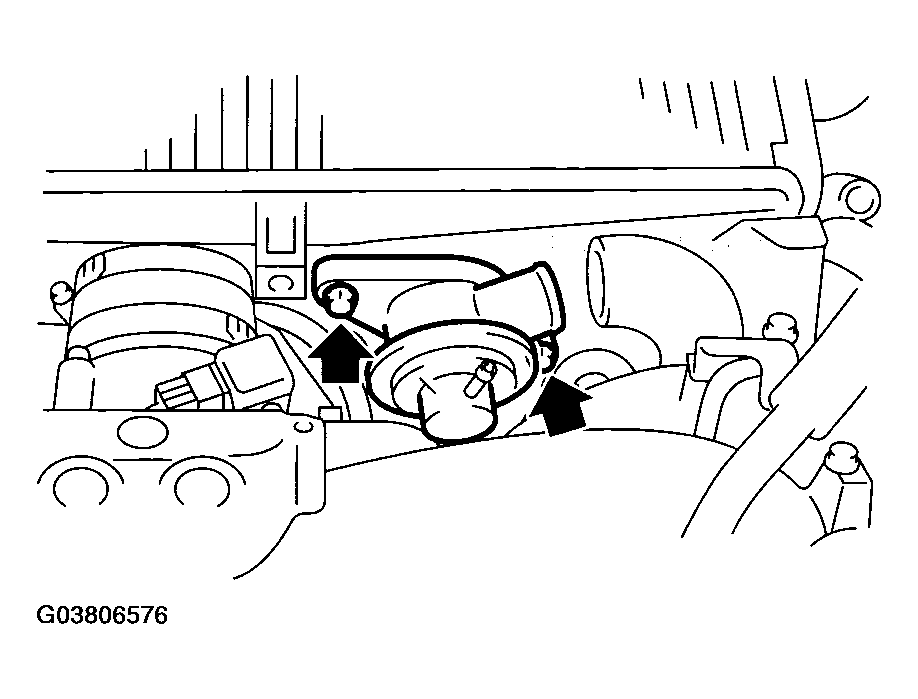

Fig 1: Installing Air By-Pass Valve

Courtesy of SUBARU OF AMERICA, INC.
