Combination Meter: Disassembly: Notes

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

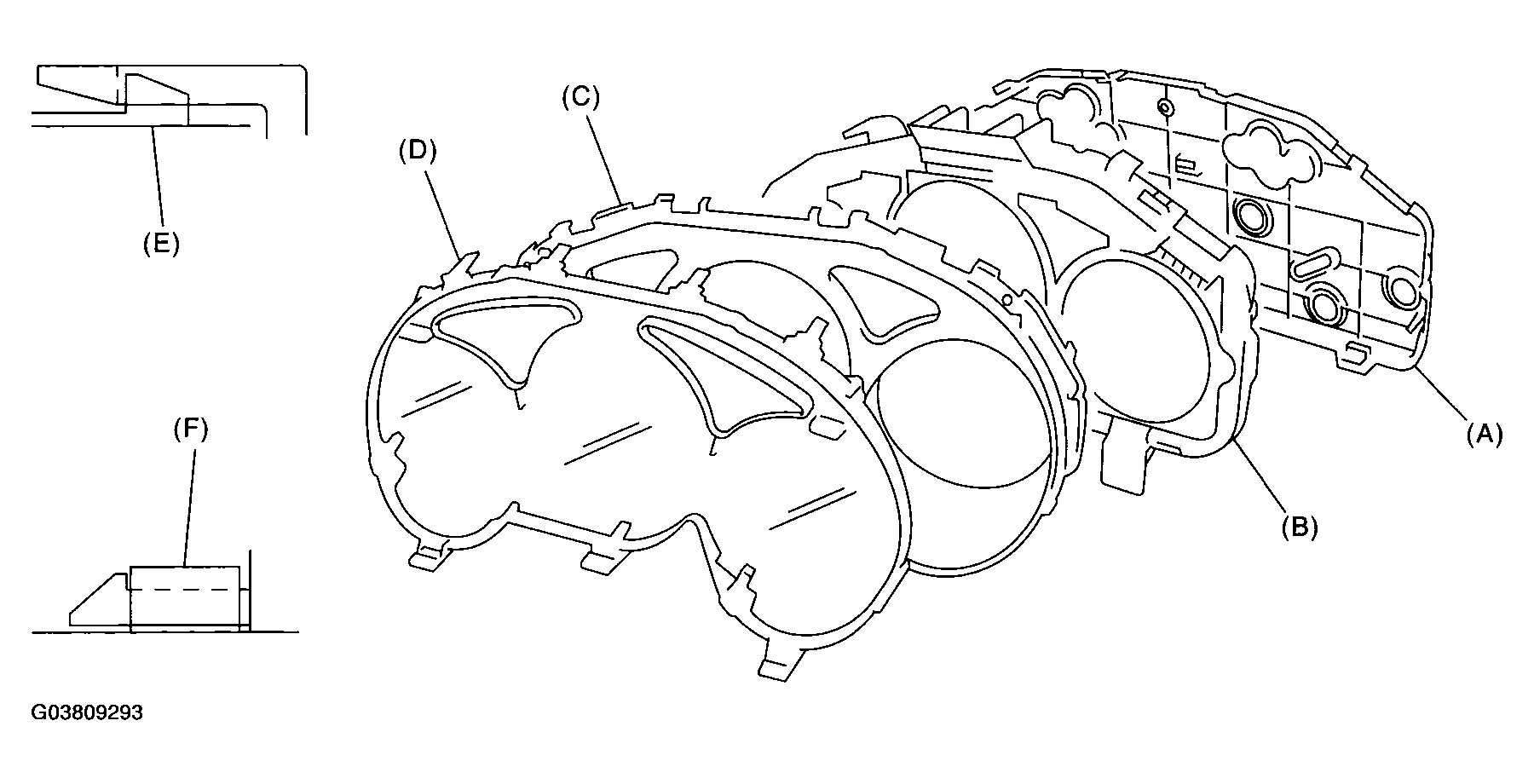

Disengage the claw (E) to remove case (B) from back cover (A).
Disengage the claw (F) to remove meter glass (D) and reflector (C) from inner case.

Fig 1: Disengaging Claw (E) To Remove Case (B) From Back Cover (A)
Courtesy of SUBARU OF AMERICA, INC.

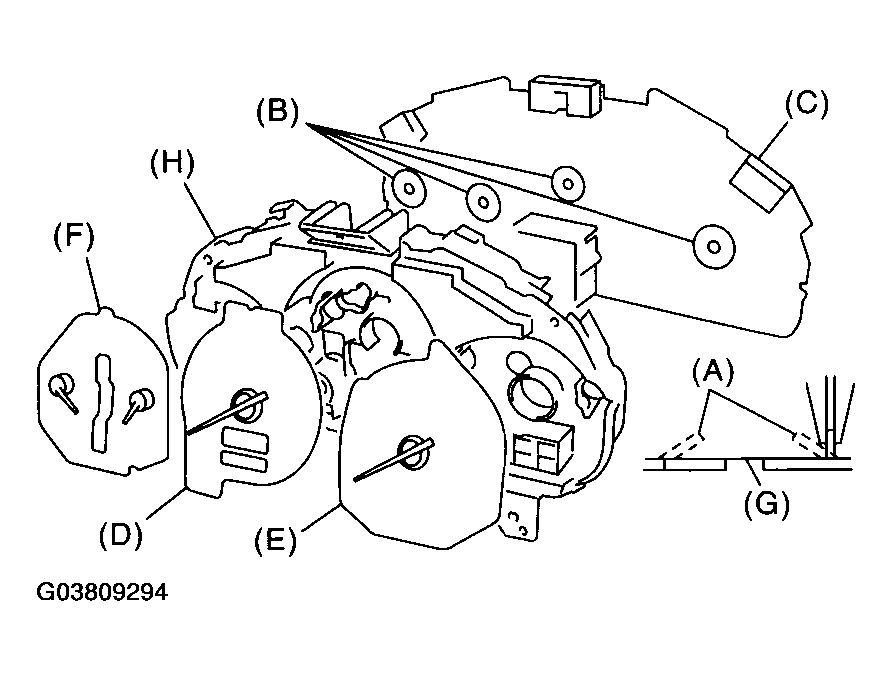

Pull up the claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers. Push out the speedometer (D), tachometer (E) and fuel gauge & water temperature gauge assembly (F) using hole (G).
Pull up the claw in center of combination meter printed circuit (C), and remove the printed circuit from case (H).

Fig 2: Pulling Up Claw In Center Of Combination Meter Printed Circuit (C), And Removing Printed Circuit From Case (H)
Courtesy of SUBARU OF AMERICA, INC.
