Center Exhaust Pipe: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Remove the intercooler bracket.

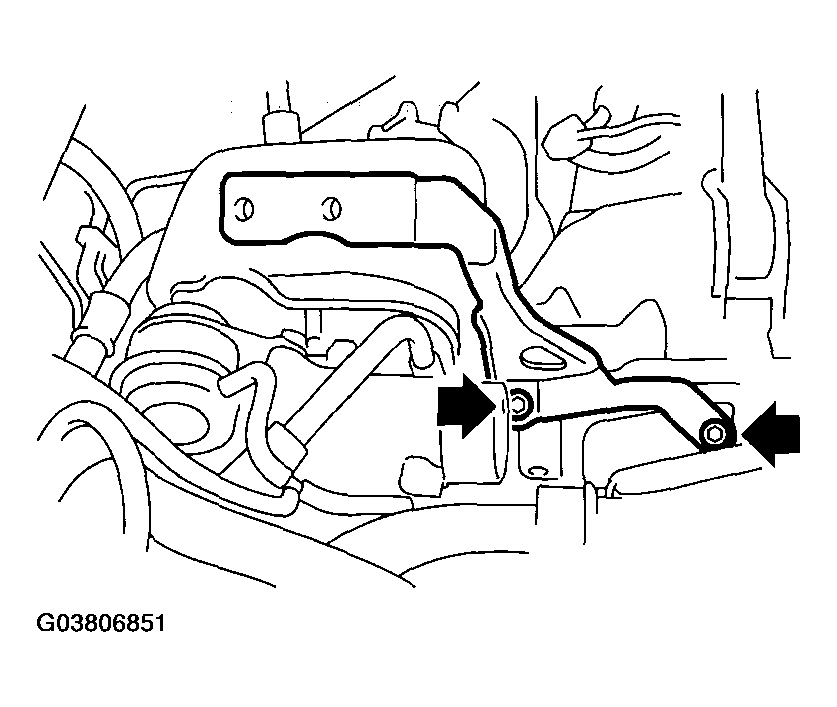

Fig 1: Removing Intercooler Bracket
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Remove the bolts which install lower side of turbocharger upper cover.
CAUTION: Be careful, the turbocharger and exhaust pipe are hot.

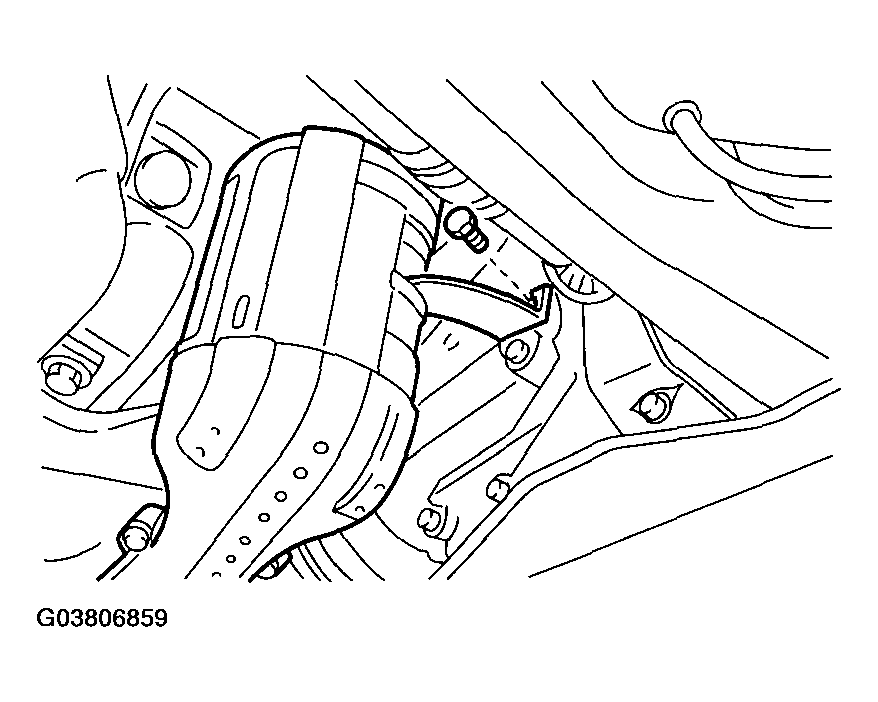

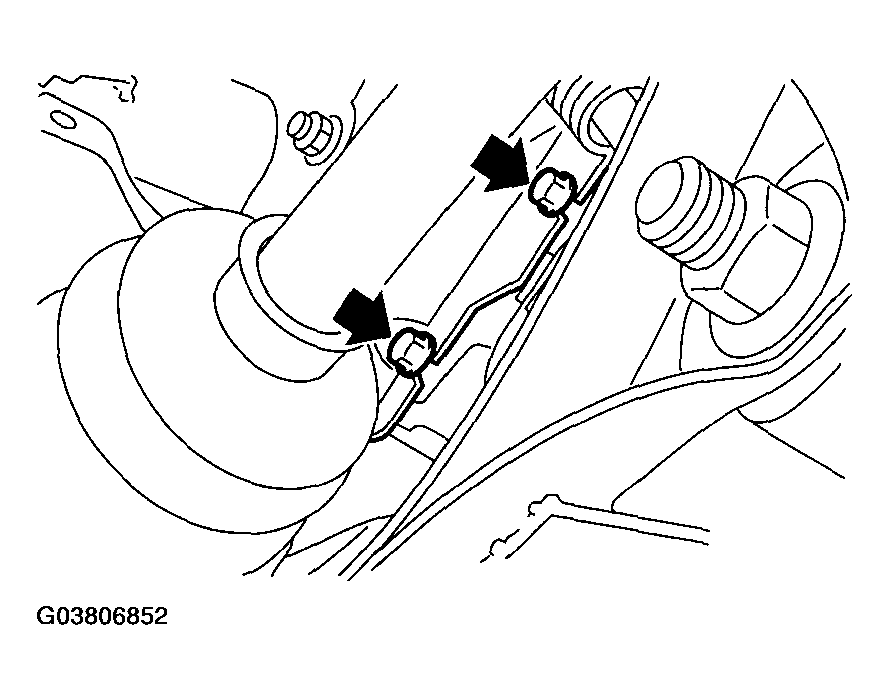

Fig 2: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the turbocharger upper cover.

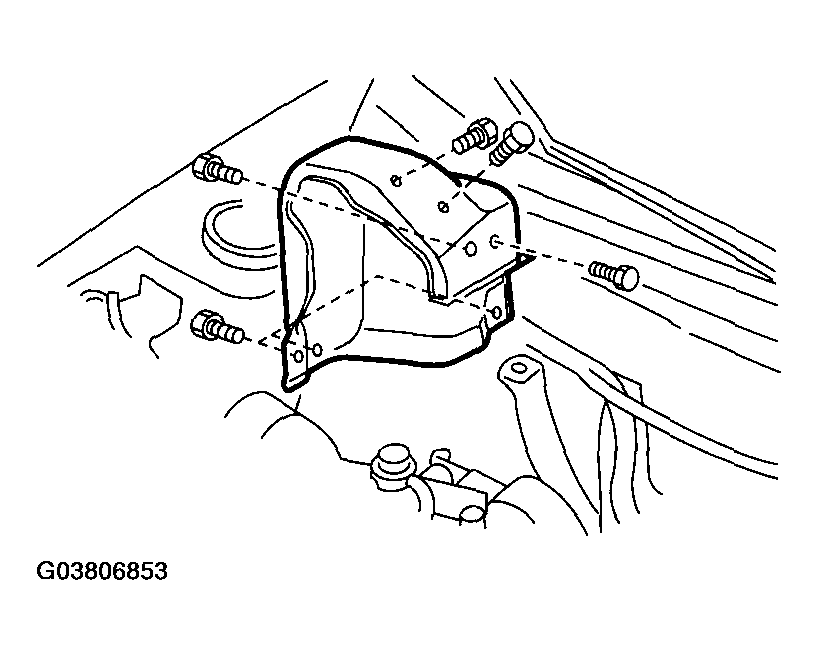

Fig 3: Removing Turbocharger Upper Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install upper side of turbocharger upper cover, and remove it.

Fig 4: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Separate the center exhaust pipe from turbocharger.

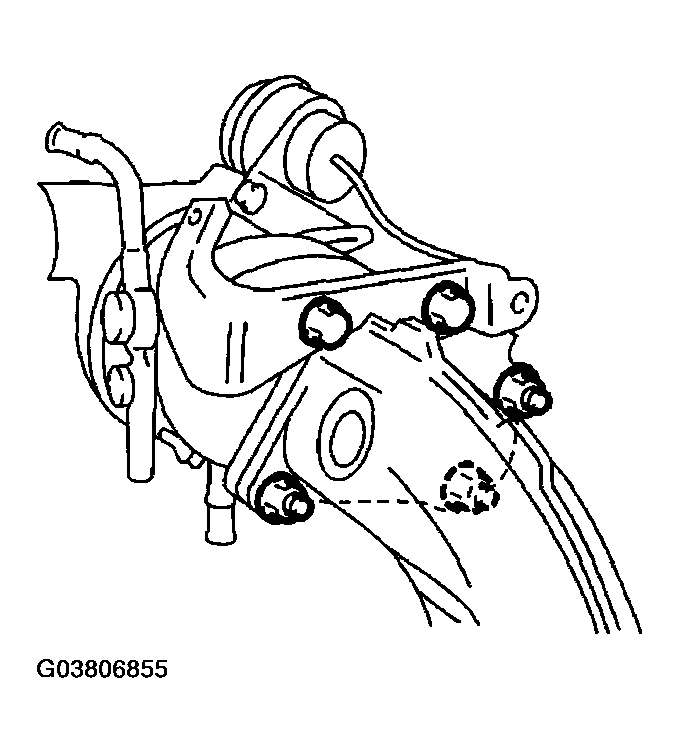

Fig 5: Separating Center Exhaust Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Disconnect the connector from rear oxygen sensor.

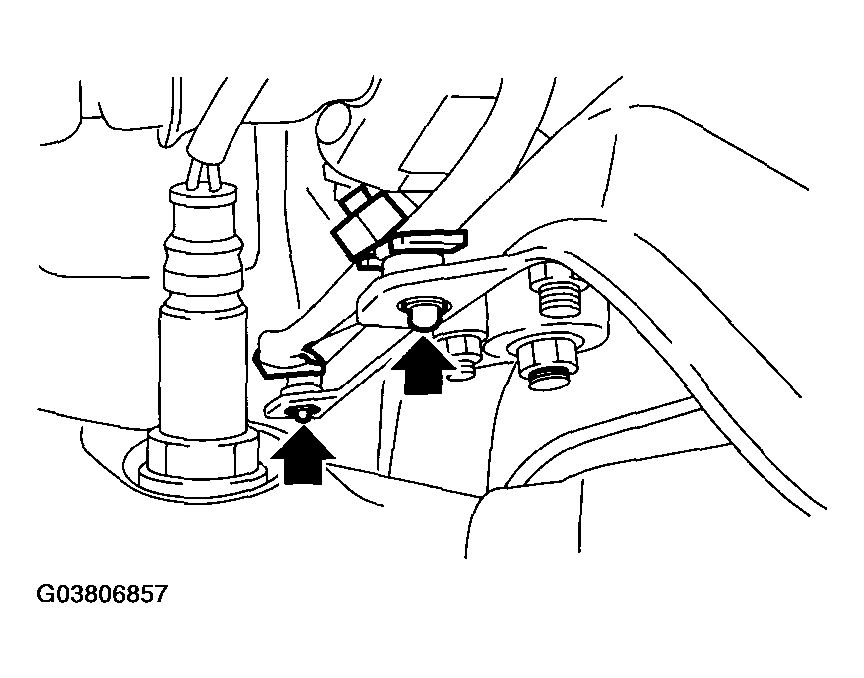

Fig 6: Disconnecting Connector From Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Vertically draw out the clip from crossmember.

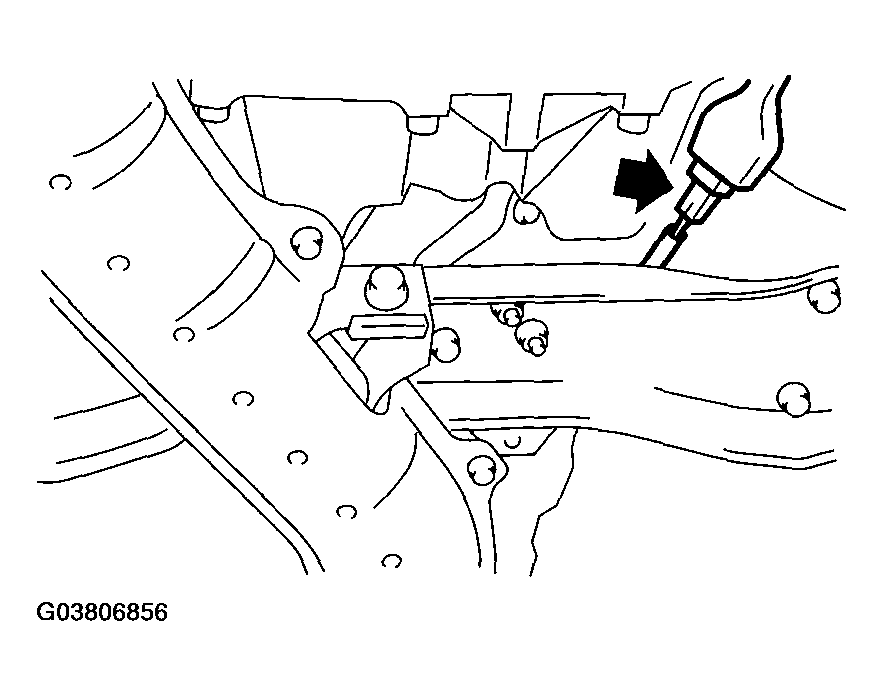

Fig 7: Identifying Vertically Draw Out Clip From Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Separate the center exhaust pipe from rear exhaust pipe.

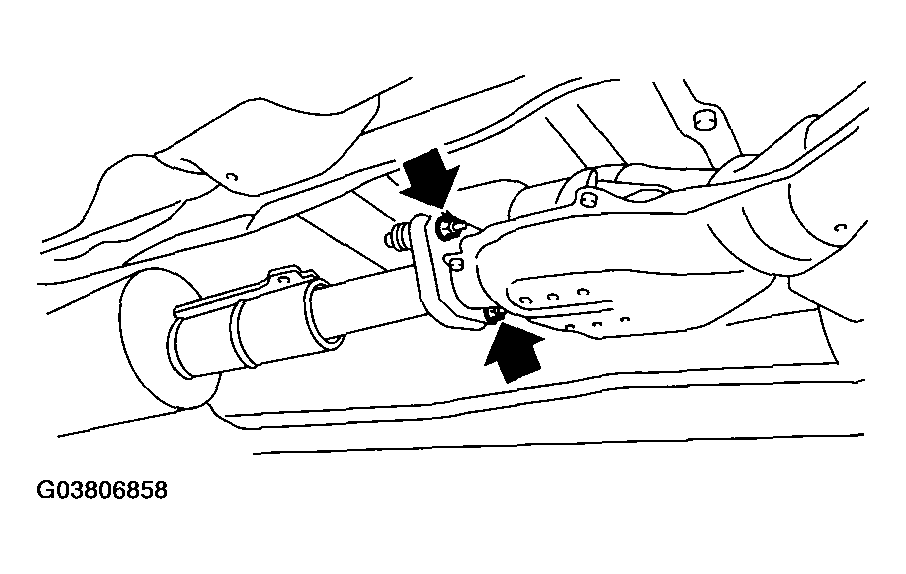

Fig 8: Separating Center Exhaust Pipe From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds center exhaust pipe bracket to transmission.

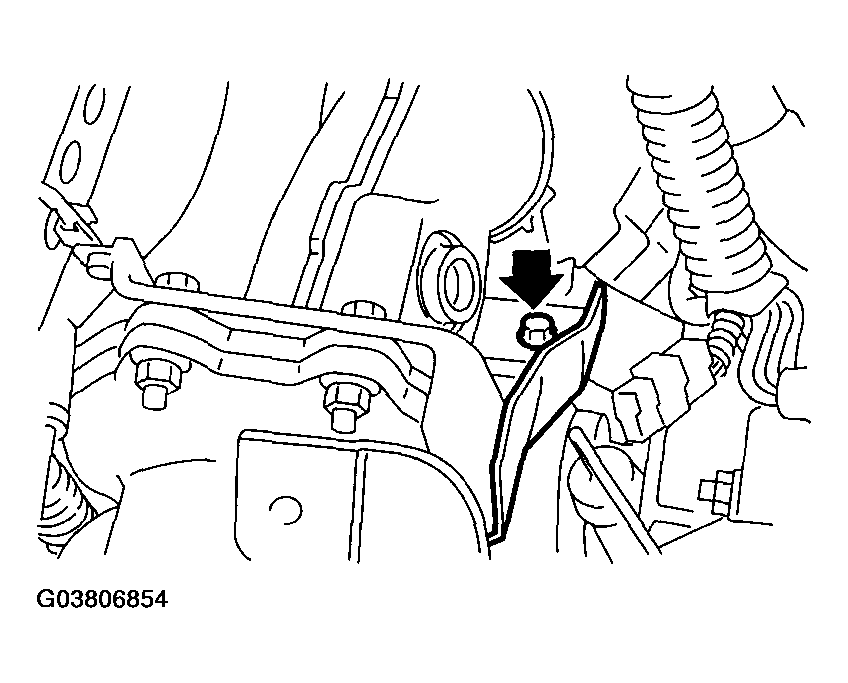

Fig 9: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler bracket.
Remove the bolt which holds center exhaust pipe to hanger bracket.
CAUTION: Be careful not to pull down the center exhaust pipe.

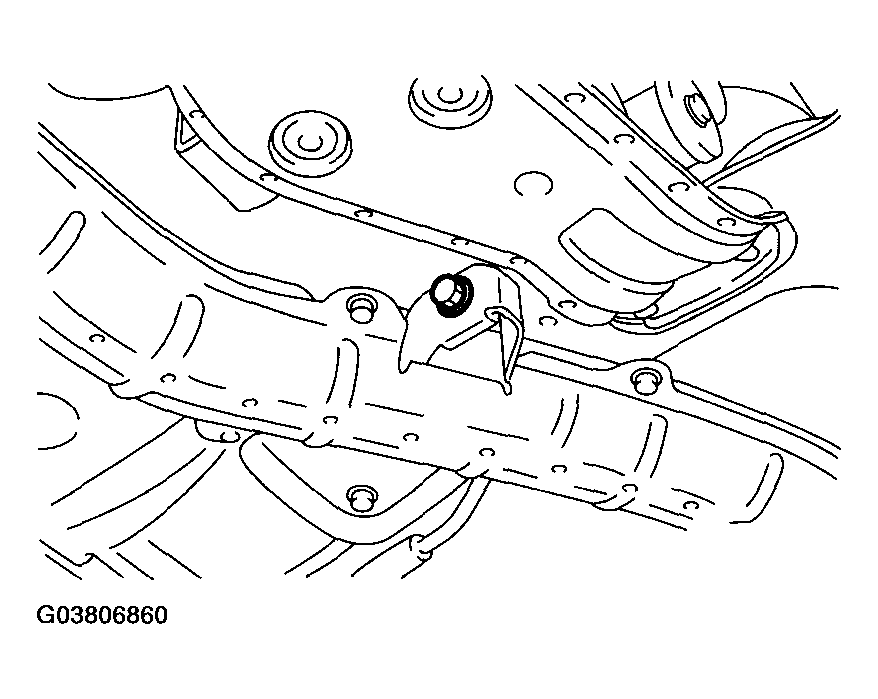

Fig 10: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe.

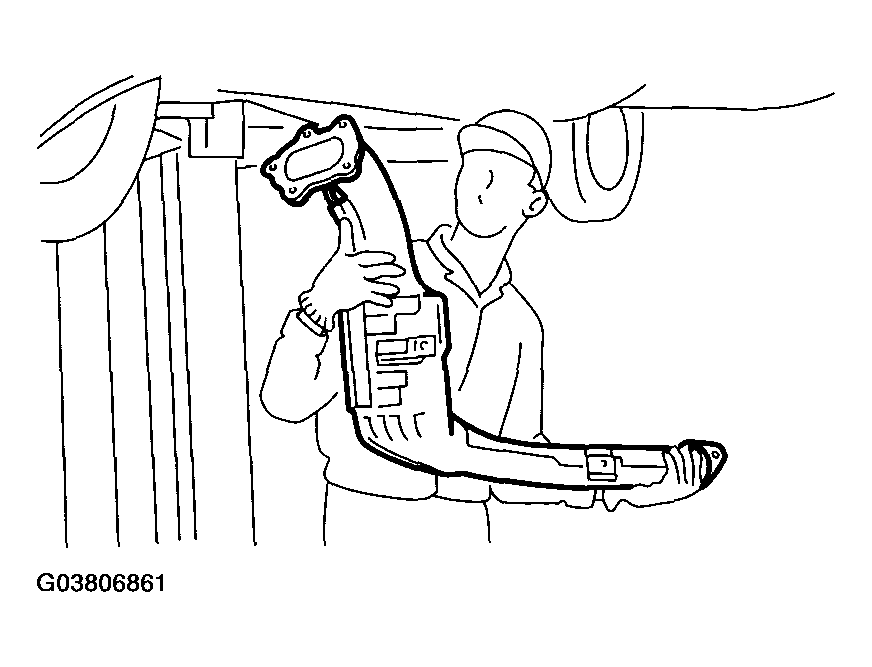

Fig 11: Removing Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
