Rear Drum Brake Shoe: Removal

Set the vehicle on a lift.
Loosen the wheel nuts.
Lift-up the vehicle, and then remove the wheels.
Release the parking brake.
Remove the brake drum from brake assembly.
NOTE:
- If it is difficult to remove the brake drum, remove the adjusting hole cover from back plate, and then turn adjuster assembly pawls using a flat tip screwdriver until brake shoe separates from the drum.

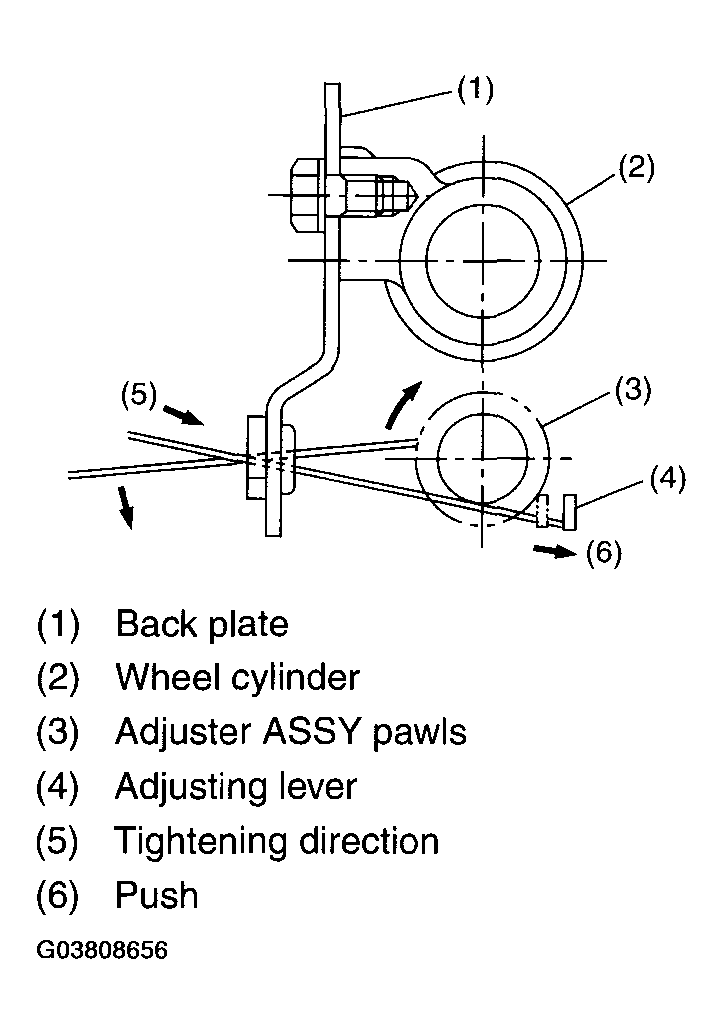

  Fig 1: Turning Adjuster Assembly Pawls
  Courtesy of SUBARU OF AMERICA, INC.
- If the brake drum is difficult to remove, drive it out by installing an 8 mm bolt into bolt hole in brake drum.

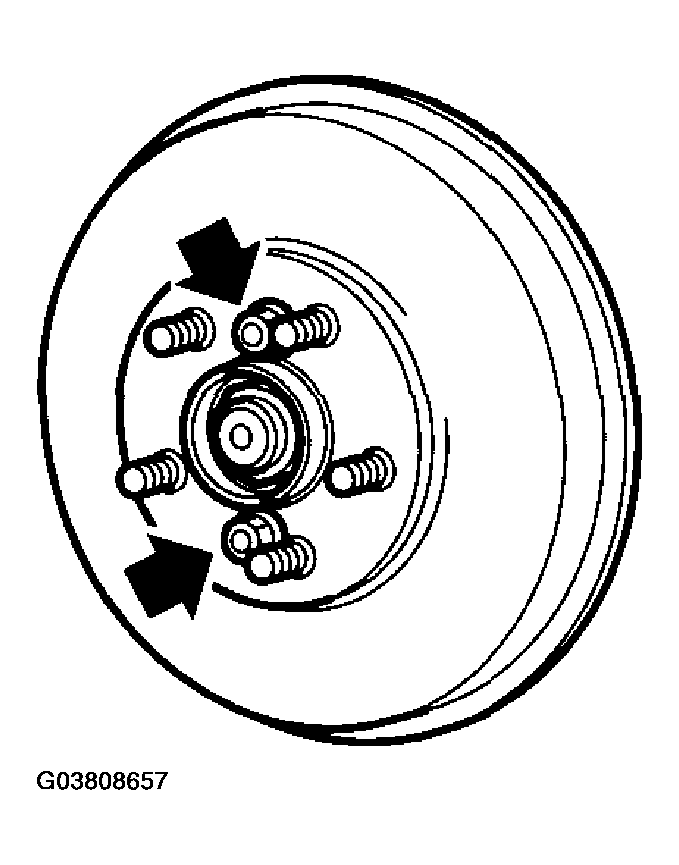

  Fig 2: Removing Brake Drum
  Courtesy of SUBARU OF AMERICA, INC.
Hold the hold-down pin by securing rear of back plate with your hand.

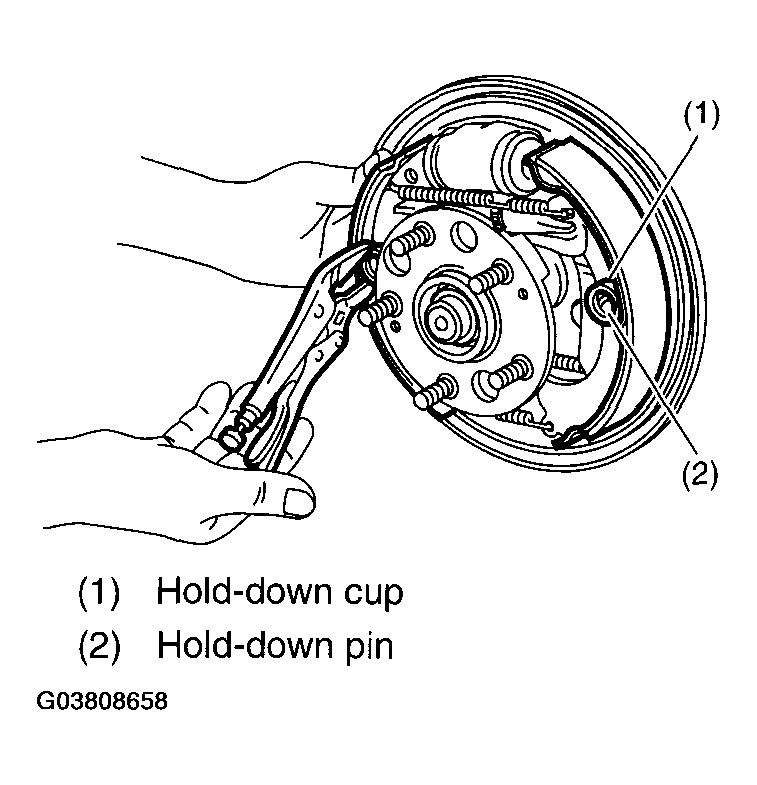

Fig 3: Holding Hold-Down Pin By Securing Rear Of Back Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the hold-down cup from hold-down pin by rotating hold-down cup.
Disconnect the lower shoe return spring from shoes.

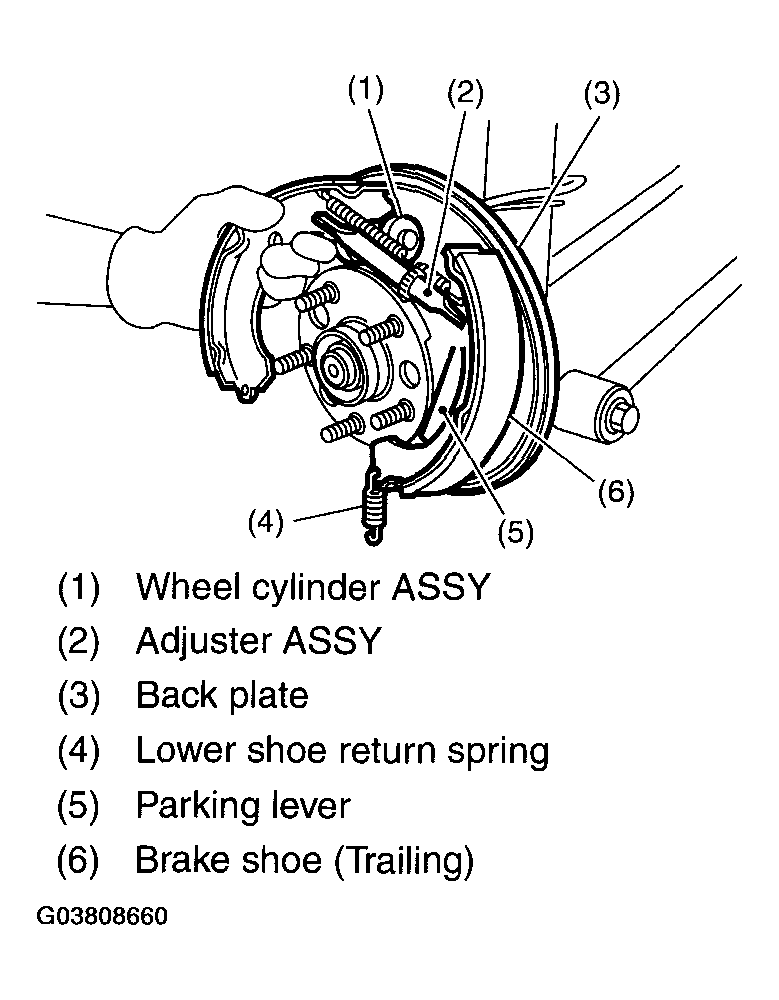

Fig 4: Disconnecting Lower Shoe Return Spring From Shoes
Courtesy of SUBARU OF AMERICA, INC.
Remove the shoes one by one from back plate with adjuster.
CAUTION: Be careful not to bend the parking brake cable excessively when removing brake shoes.

Fig 5: Removing Shoes
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the parking brake cable from parking lever.

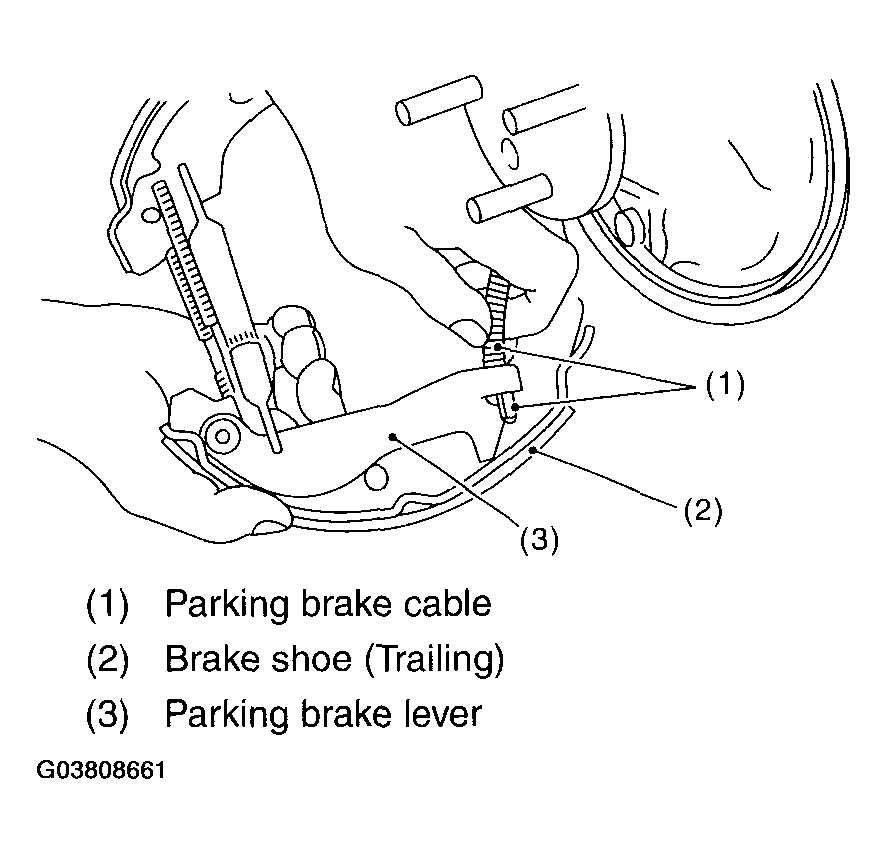

Fig 6: Disconnecting Parking Brake Cable From Parking Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the upper shoe return spring and adjusting spring from brake shoe.

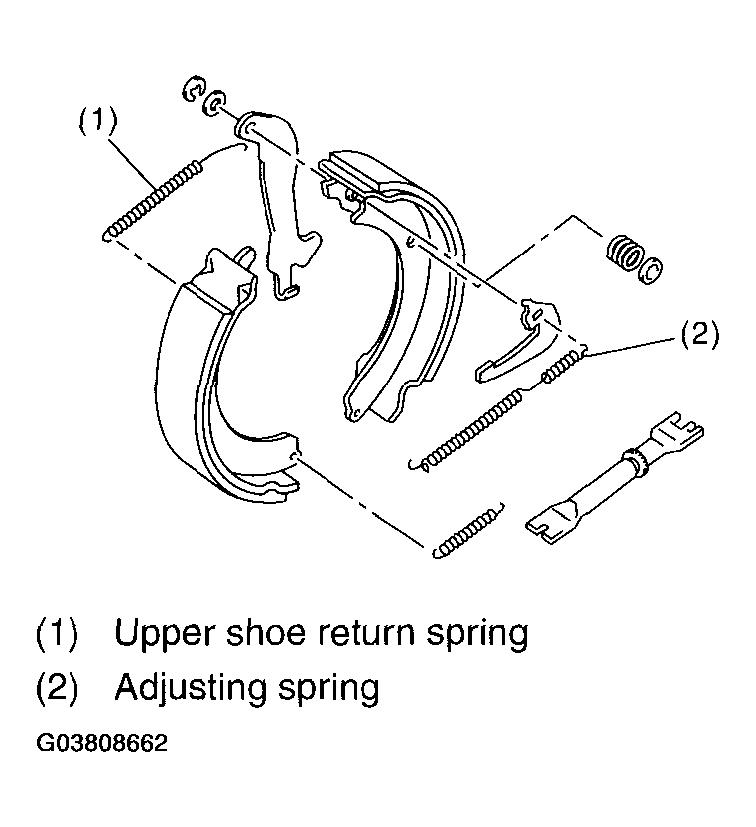

Fig 7: Removing Upper Shoe Return Spring And Adjusting Spring From Brake Shoe
Courtesy of SUBARU OF AMERICA, INC.
