Rear Drum Brake Assembly: Installation

Clean the back plate and wheel cylinder.
Install the wheel cylinder on back plate, and tighten bolts.
Tightening torque:

10 N.m (1.0 kgf-m, 7.2 ft-lb)

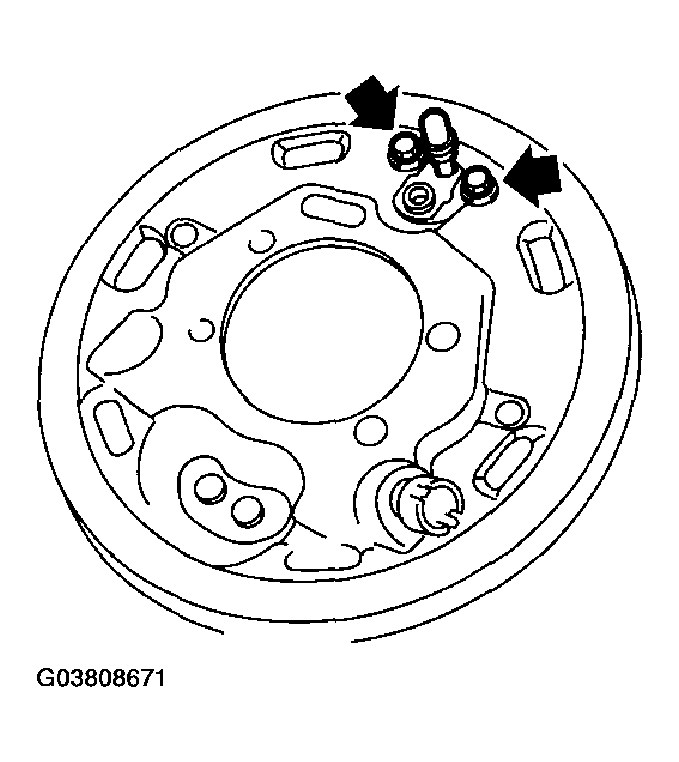

Fig 1: Installing Wheel Cylinder Bolts
Courtesy of SUBARU OF AMERICA, INC.
Apply grease to the portions indicated by arrows in the figure.
Brake grease:

Dow Corning Molykote No. 7439 (Part No. 003602001)

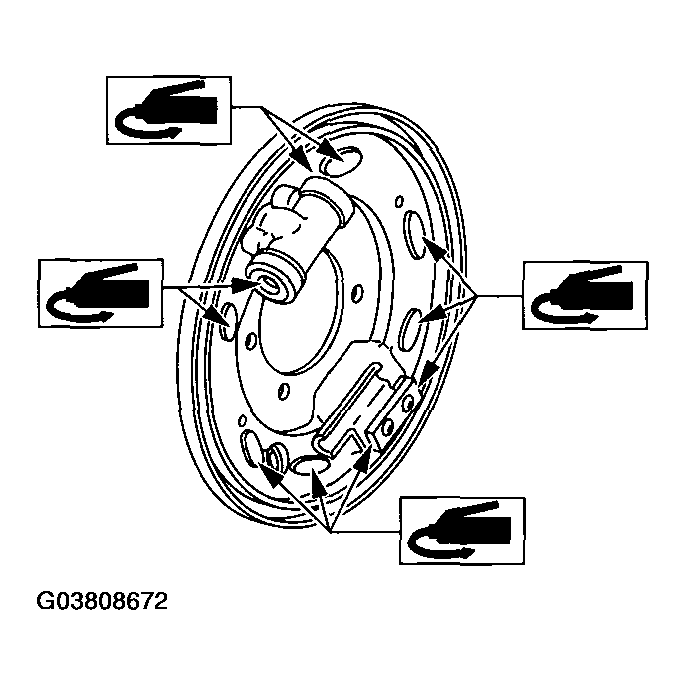

Fig 2: Applying Brake Grease To Portions Indicated By Arrows
Courtesy of SUBARU OF AMERICA, INC.
Install the brake assembly on housing, and tighten the bolts to install back plate.
Tightening torque:

52 N.m (5.3 kgf-m, 38.3 ft-lb)

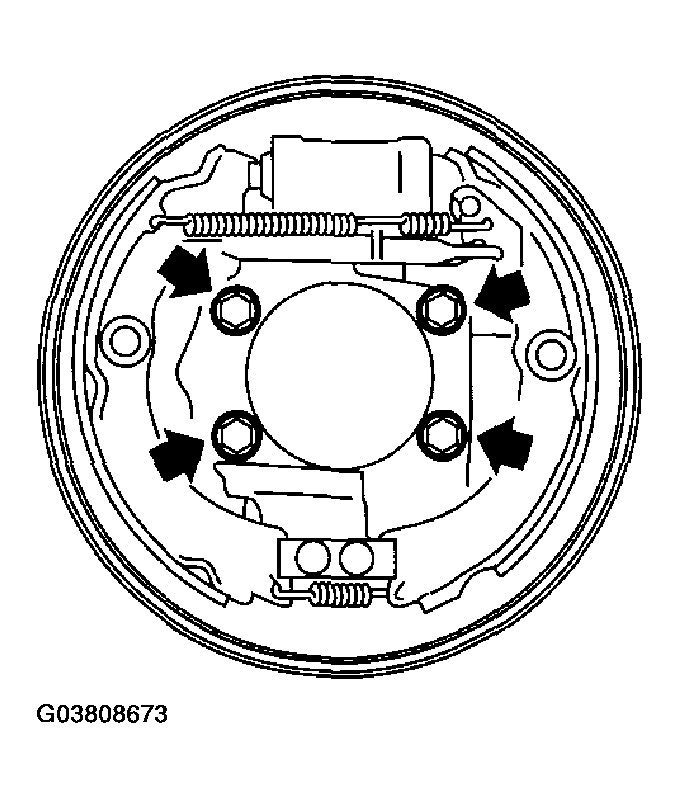

Fig 3: Installing Brake Assembly On Housing
Courtesy of SUBARU OF AMERICA, INC.
Install the hub. < Ref. to INSTALLATION , Rear Axle. >
Connect the brake hose, and tighten the brake hose flange nut.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

CAUTION: The brake hose must be connected without any twist.
Connect the ABS wheel speed sensor to back plate.
Tightening torque:

32 N.m (3.3 kgf-m, 23.6 ft-lb)
Apply grease to the adjusting screw and both ends of adjuster.
Brake grease:

Dow Corning Molykote No. 7439 (Part No. 003602001)

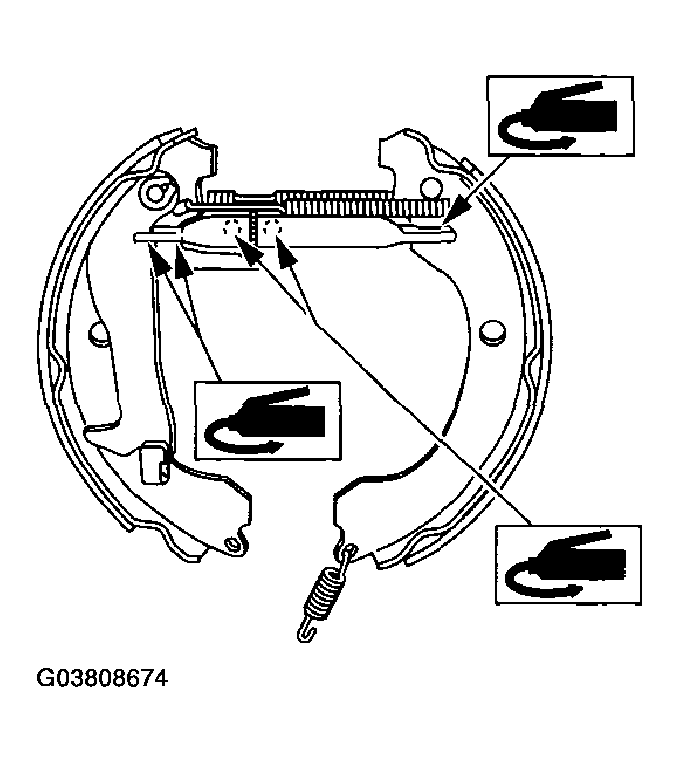

Fig 4: Applying Grease To Adjusting Screw And Both Ends Of Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Install the brake shoe. < Ref. to INSTALLATION , Rear Drum Brake Shoe. >
Install the brake drum. < Ref. to INSTALLATION , Rear Drum Brake Drum. >
After installing the brake assembly, bleed air from the brake line. < Ref. to AIR BLEEDING . >
