Master Cylinder

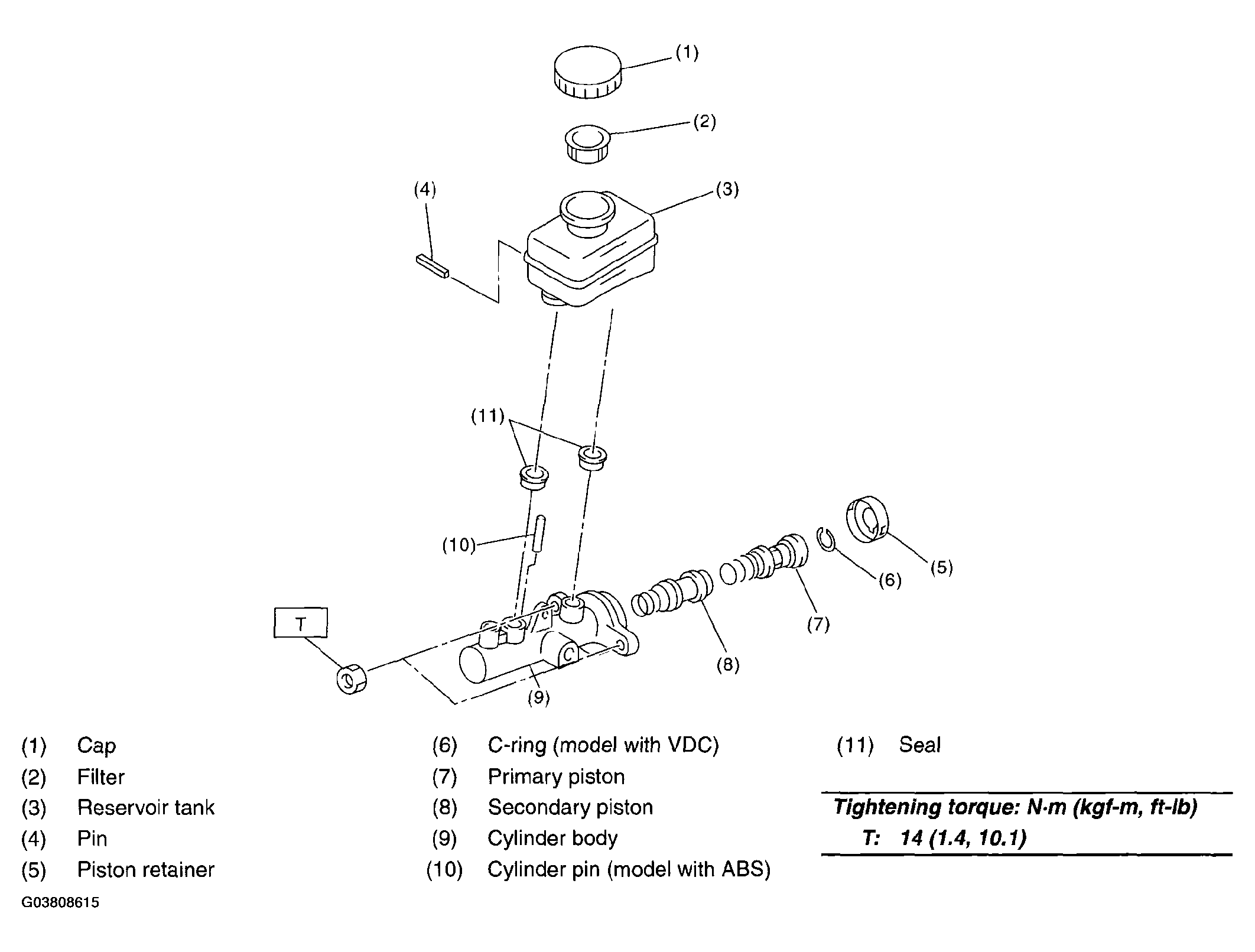

Fig 1: Exploded View Of Master Cylinder
G03808615Courtesy of SUBARU OF AMERICA, INC.
