Center And Rear Brake Pipes And Hoses
Center And Rear Brake Pipes And Hoses

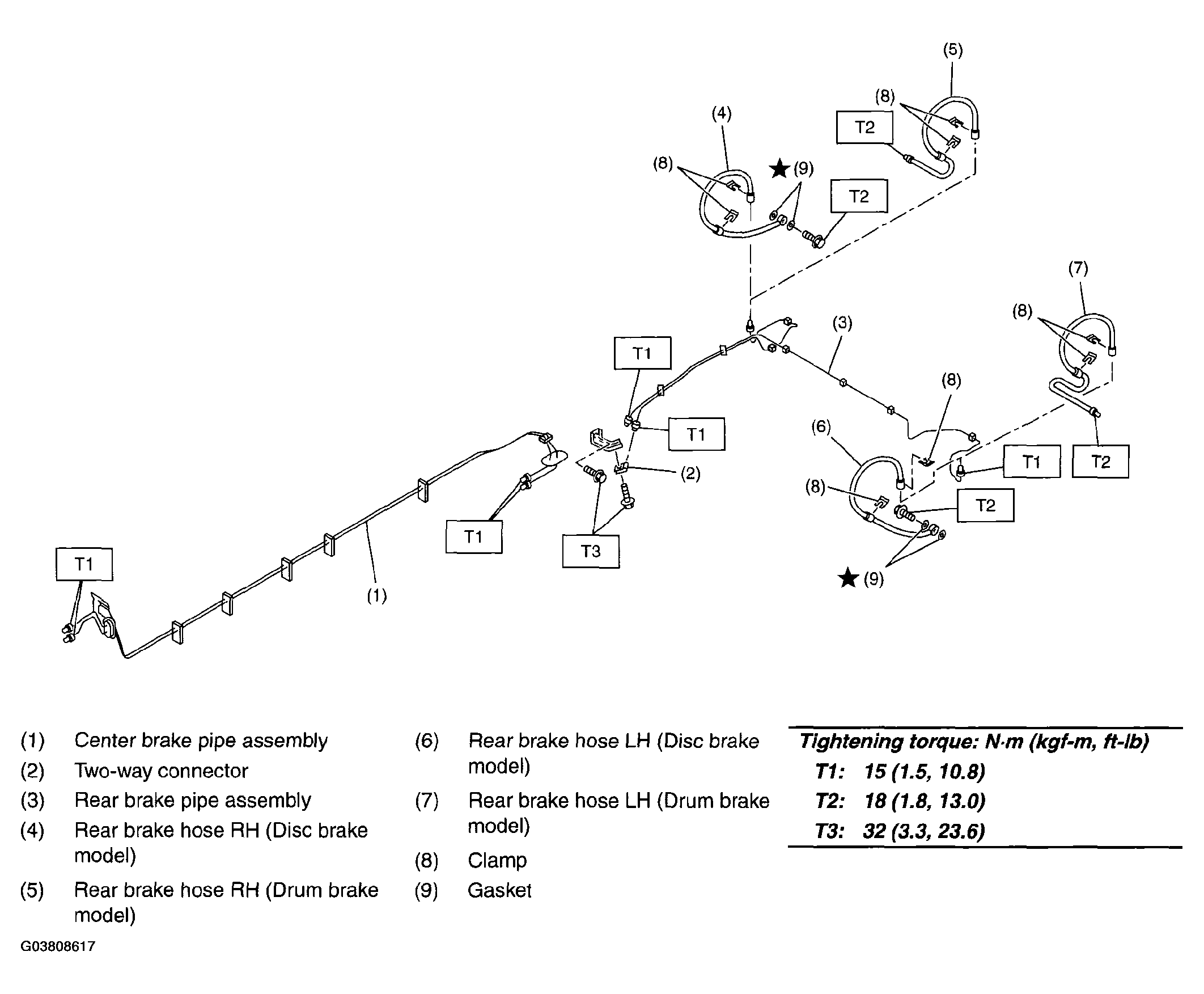

Fig 1: Exploded View Of Center And Rear Brake Pipes And Hoses
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
