Brake Pedal

AT model

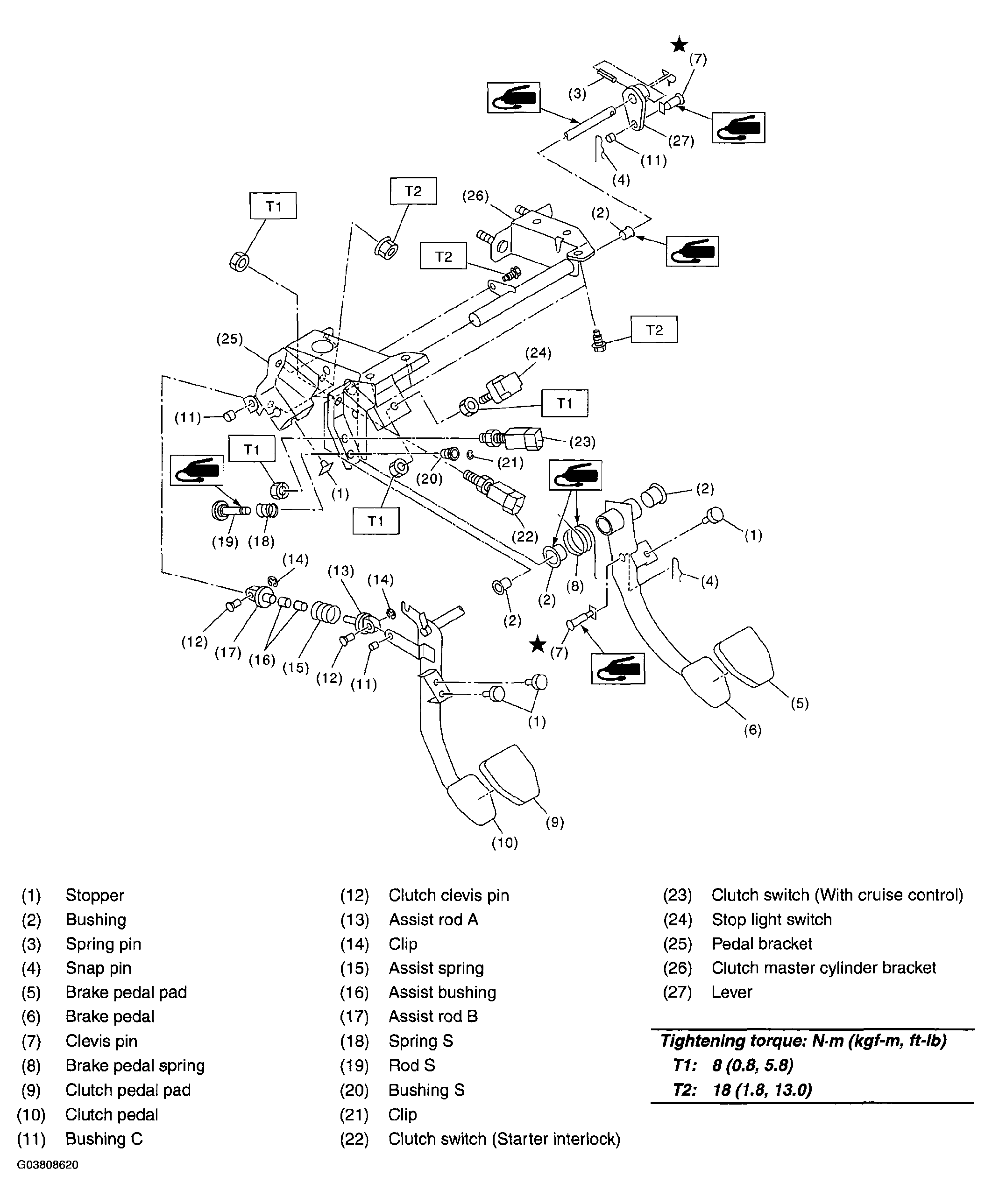

Fig 1: Exploded View Of Brake Pedal (AT Mode)
Courtesy of SUBARU OF AMERICA, INC.
MT model

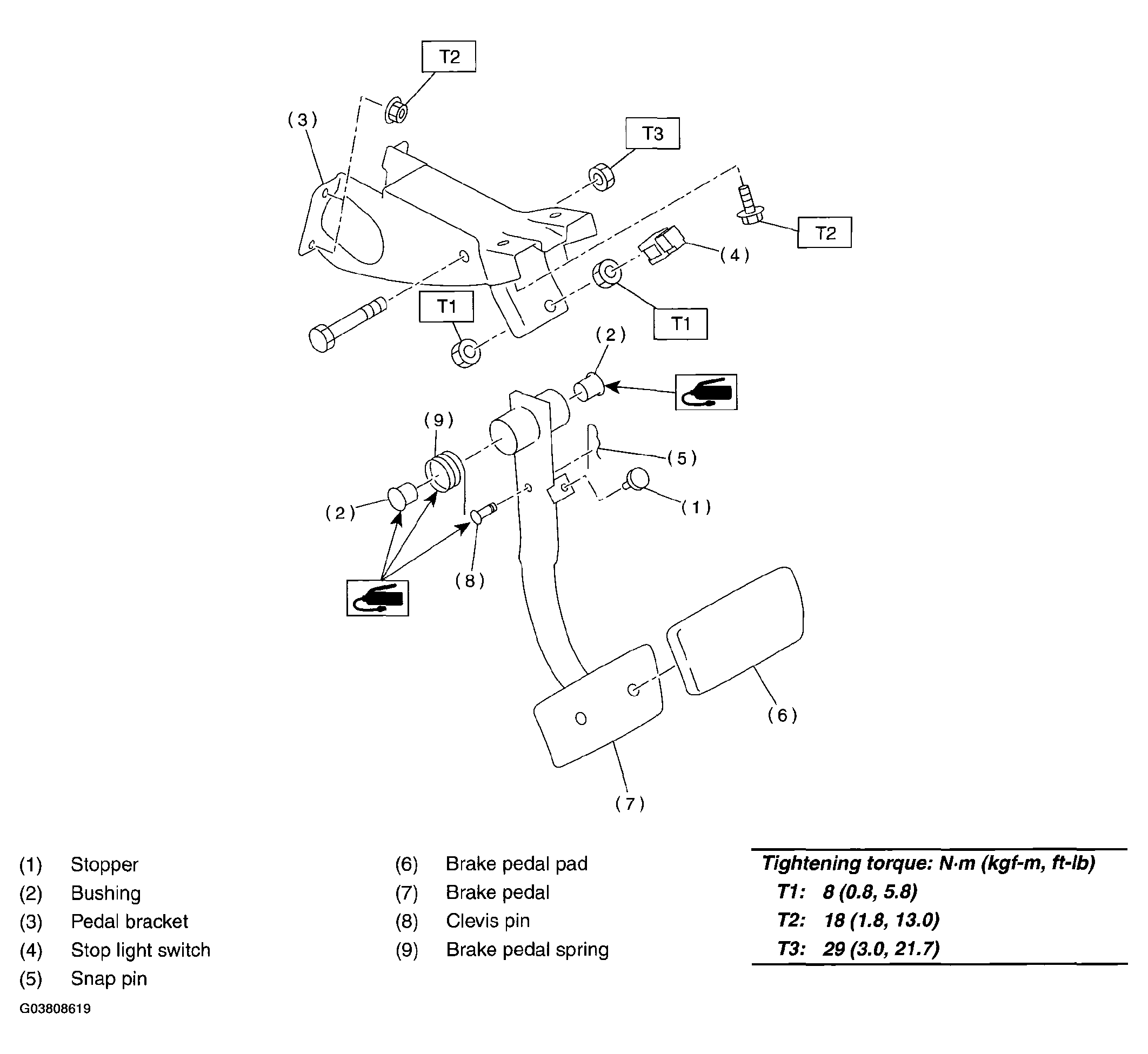

Fig 2: Exploded View Of Brake Pedal (MT Mode)
Courtesy of SUBARU OF AMERICA, INC.
