Mt Model

  1. Remove the steering bolts.
  2. Raise the vehicle on hoist and remove the two bolts which secure steering unit to underside of body.
  3. Lower the vehicle to floor.
  4. Remove the instrument panel lower cover from instrument panel.
  5. Disconnect the following parts from pedal bracket.
    • Operating rod of brake booster
    • Electrical connectors (for stop light switch, etc.)
  6. Remove the clevis pin which secures lever to push rod.
  7. Remove the nut which secures clutch master cylinder.
  8. Remove the steering assembly.
  9. Remove the accelerator pedal.
  10. Remove the bolts and nuts which secure pedal bracket.

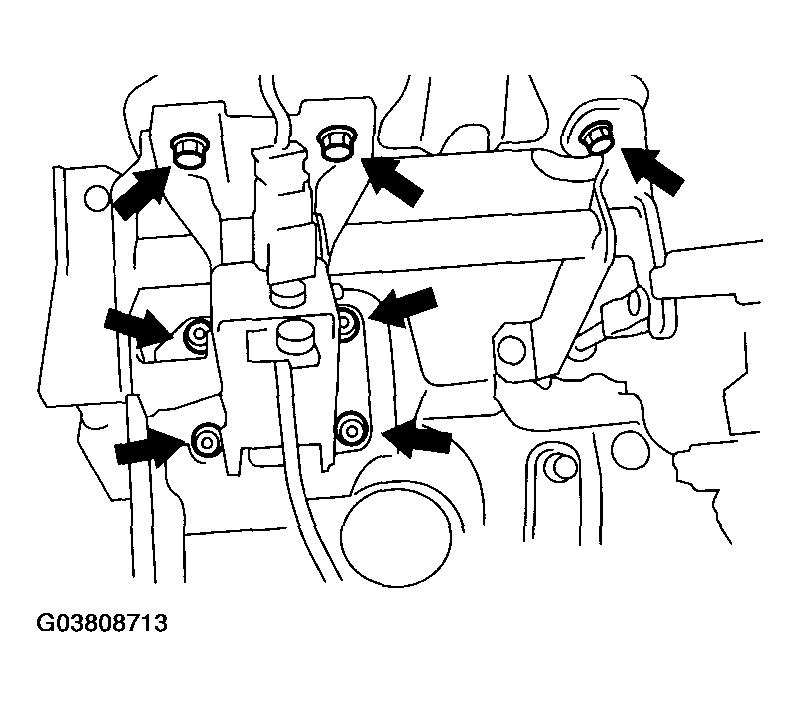

    Fig 1: Removing Bolts And Nuts Which Secure Pedal Bracket
    G03808713Courtesy of SUBARU OF AMERICA, INC.
