Rear Brake Hose (Disc Brake)

  1. Disconnect the brake pipe from brake hose. (Always use flare nut wrench and be careful not to deform the flare nut.)
  2. Remove the clamp and union bolt.

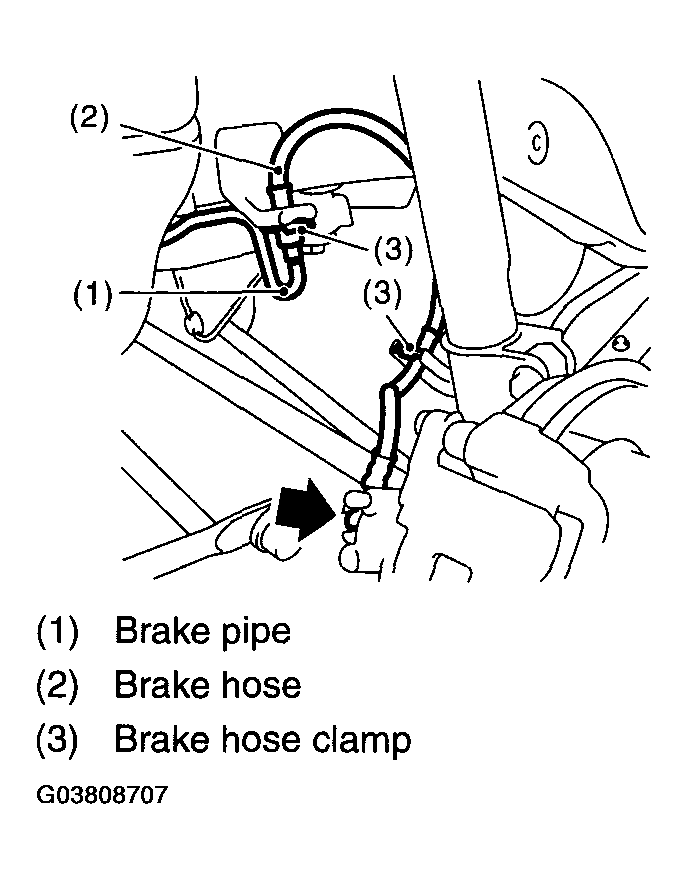

    Fig 1: Removing Clamp And Union Bolt
    G03808707Courtesy of SUBARU OF AMERICA, INC.
