Front Brake Hose

  1. Separate the brake pipe from brake hose. (Always use flare nut wrench and be careful not to deform the flare nut.)
  2. Pull out the clamp to remove brake hose.
  3. Remove the bolt at strut and union bolt.

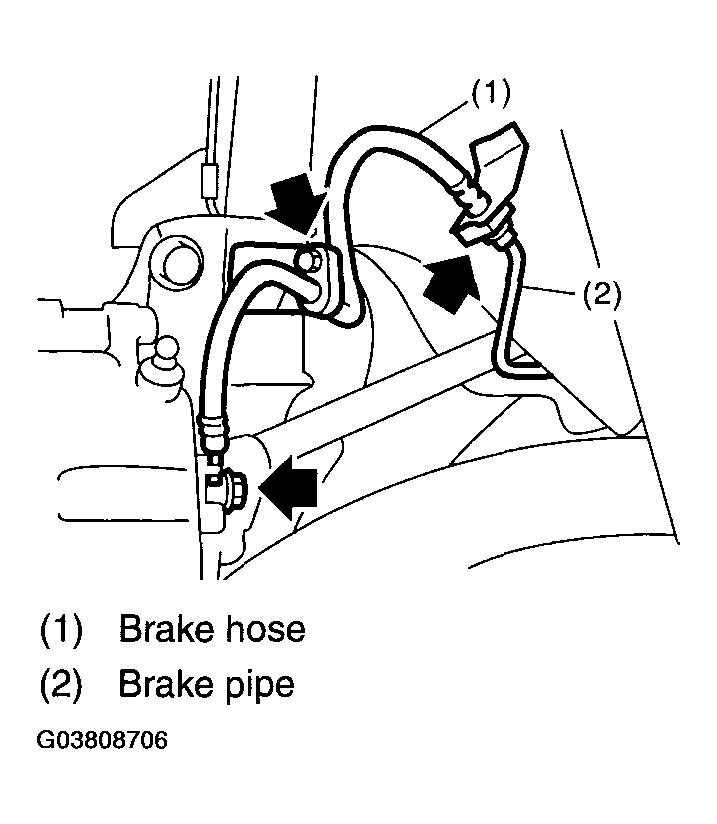

    Fig 1: Removing Bolt At Strut And Union Bolt
    G03808706Courtesy of SUBARU OF AMERICA, INC.
