Front Disc Rotor: Inspection

  1. Check bearing axial end play and hub runout before disc rotor runout limit inspection. < Ref. to INSPECTION , Front Axle. >
  2. Secure the disc rotor by tightening five wheel nuts.
  3. Set a dial gauge 10 mm (0.39 in) inward of rotor outer perimeter. Turn the disc rotor to check runout. If the disc rotor runout is above specified value, replace the disc rotor.

    Disc rotor runout limit:

    0.075 mm (0.0030 in)

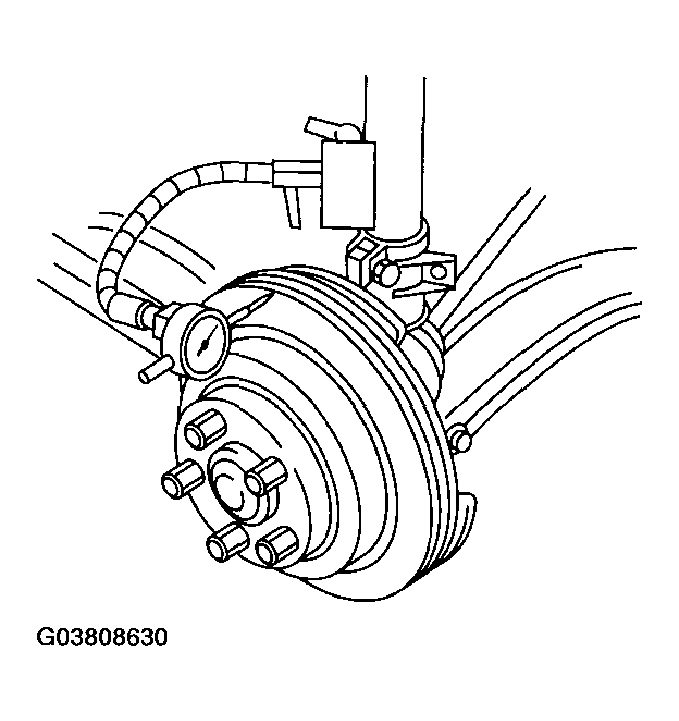

    Fig 1: Checking Disc Rotor Runout
    G03808630Courtesy of SUBARU OF AMERICA, INC.
  4. Set a micrometer 10 mm (0.39 in) inward of the rotor outer perimeter, and then measure the disc rotor thickness. If the thickness of disc rotor is outside the service limit, replace the disc rotor.
    Fig 2: Identifying Disc Rotor Thickness
    G03808631Courtesy of SUBARU OF AMERICA, INC.
    DISC ROTOR THICKNESS SPECIFICATIONS

      Standard value Service limit Disc outer dia.
    Disc rotor thickness A 24 mm (0.94 in) 22 mm (0.87 in) 294 mm (11.57 in)
