Resonator Chamber: Installation

Install in the reverse order of removal.

Tightening torque:

7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

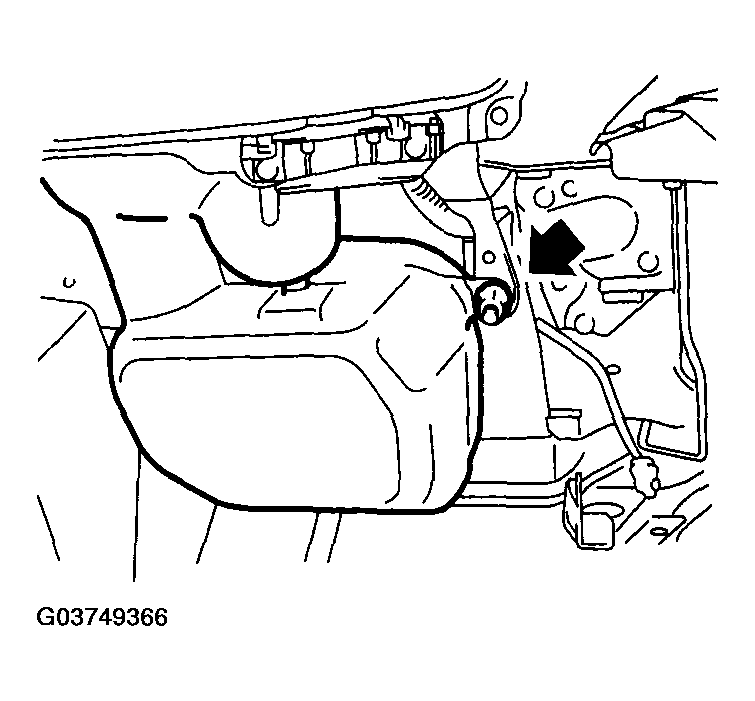

Fig 1: Installing Resonator Chamber From Inside Front Fender

Courtesy of SUBARU OF AMERICA, INC.

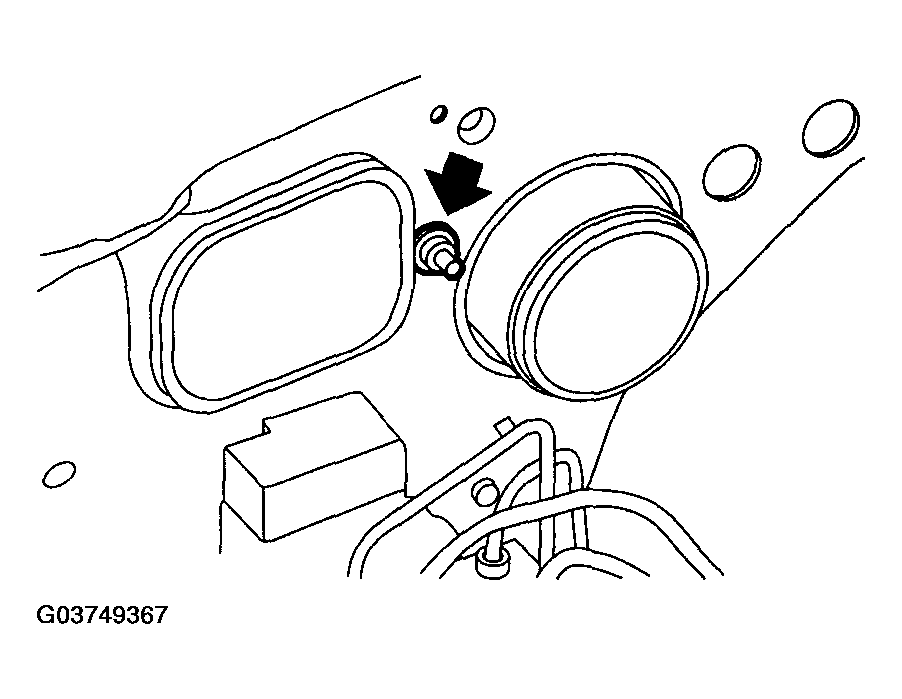

Fig 2: Installing Resonator Chamber Mounting Bolt On Right Side Of Engine Compartment

Courtesy of SUBARU OF AMERICA, INC.
