Intake (Induction) (H4DOTC): Intercooler: Installation

Install in the reverse order of removal.

Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)

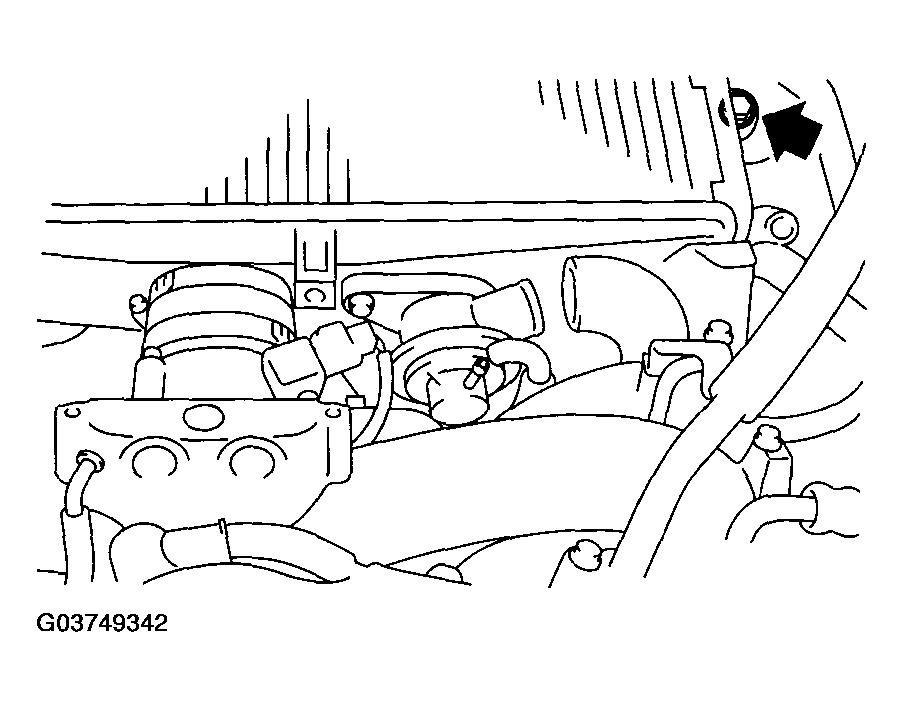

Fig 1: Removing Bolt Which Secures Intercooler To Bracket (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

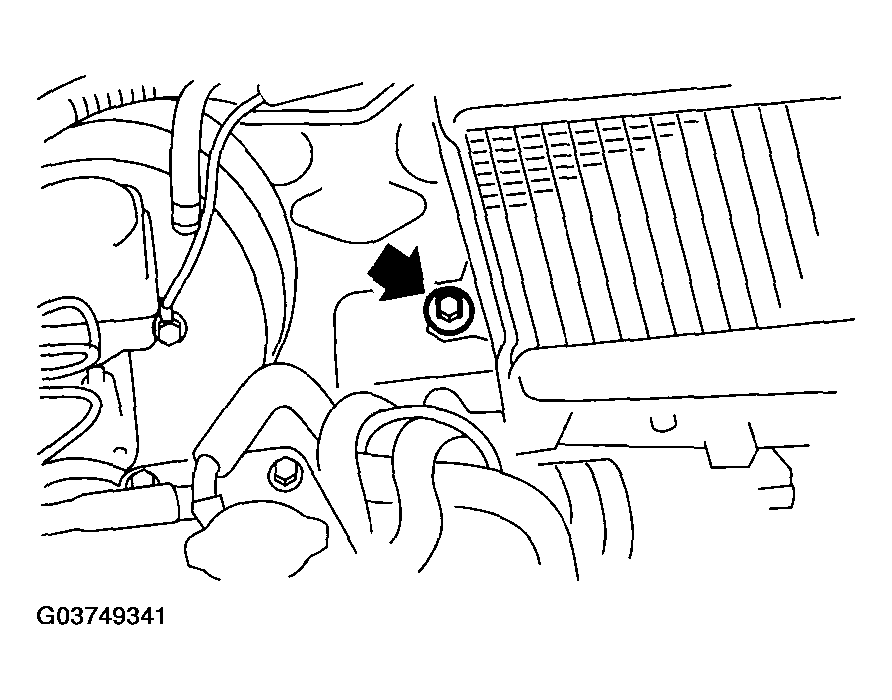

Fig 2: Removing Bolt Which Secures Intercooler To Bracket (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
