Intake (Induction) (H4DOTC): Intercooler: Disassembly

  1. Remove air bypass valve from intercooler.

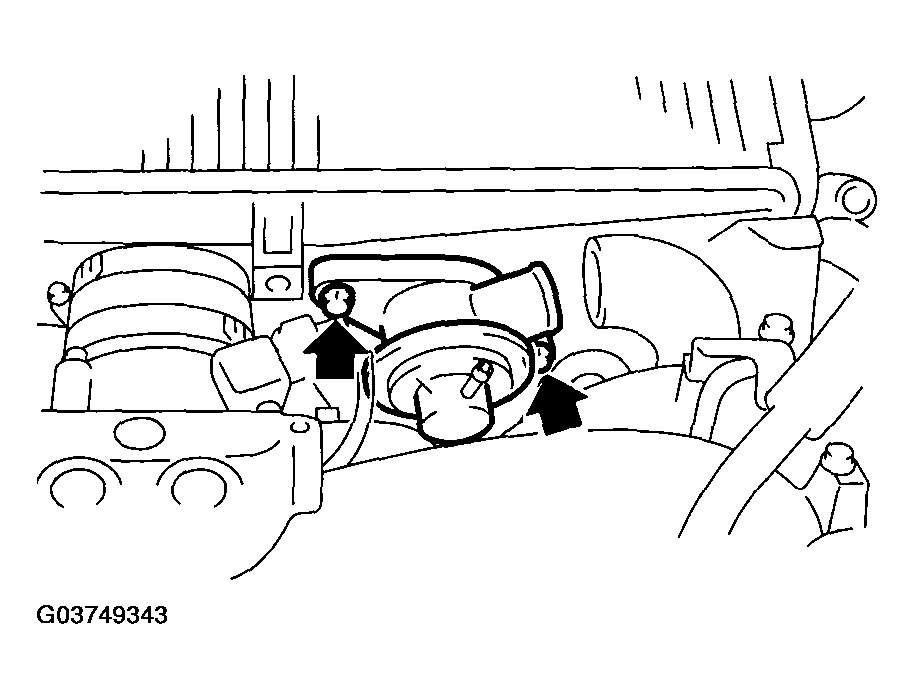

    Fig 1: Removing Air Bypass Valve From Intercooler
    G03749343Courtesy of SUBARU OF AMERICA, INC.
  2. Remove intercooler duct from intercooler.

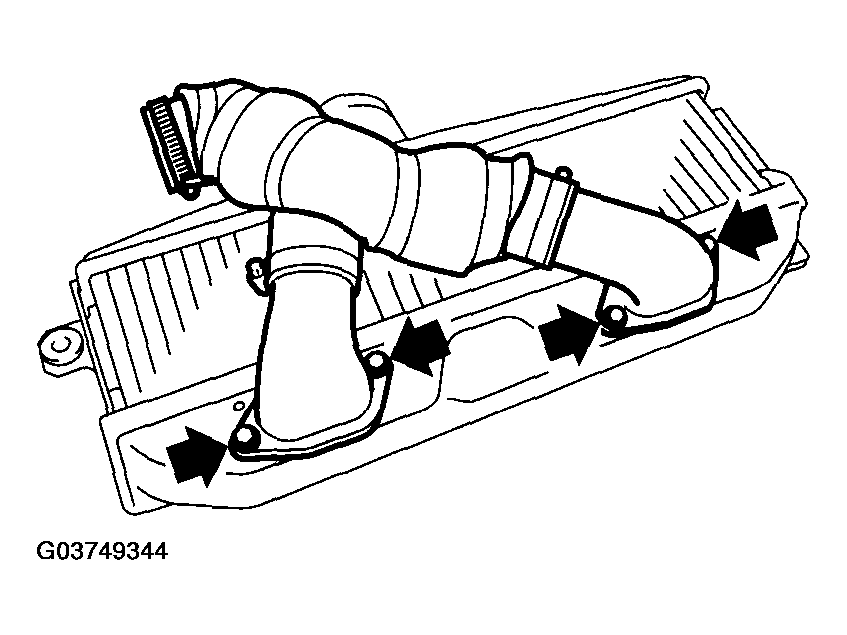

    Fig 2: Removing Intercooler Duct From Intercooler
    G03749344Courtesy of SUBARU OF AMERICA, INC.
  3. Separate duct.

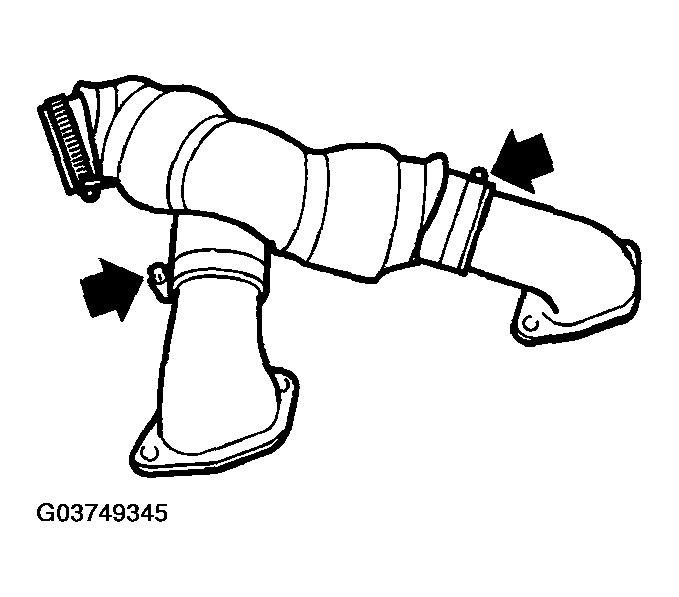

    Fig 3: Separating Duct
    G03749345Courtesy of SUBARU OF AMERICA, INC.
