Intake (Induction) (H4DOTC): Intercooler: Assembly

To assemble, reverse order of disassembly.

NOTE: Be careful pinching of O-ring.

Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)

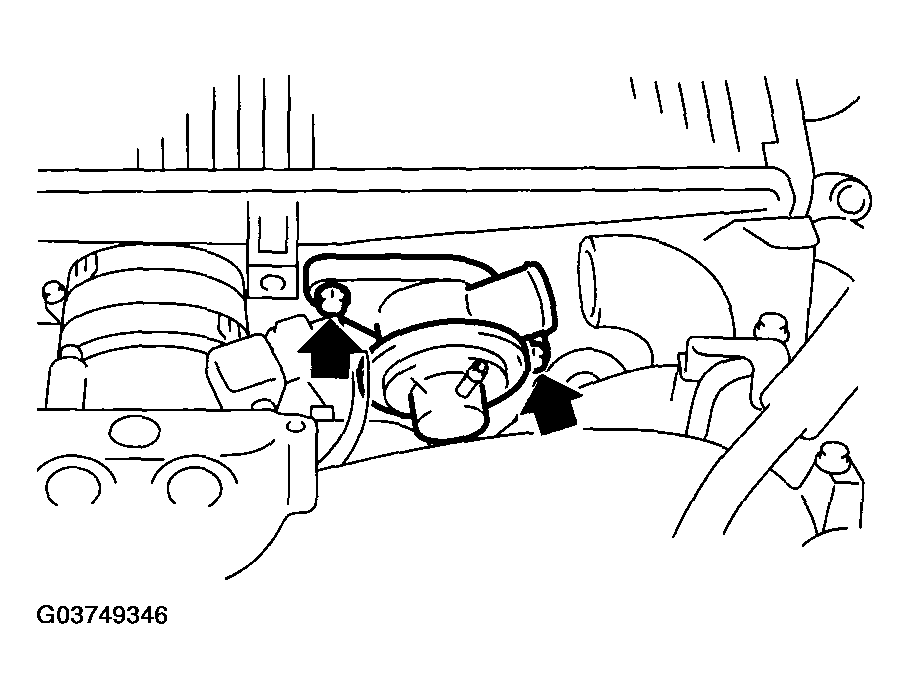

Fig 1: Installing Air Bypass Valve From Intercooler

Courtesy of SUBARU OF AMERICA, INC.

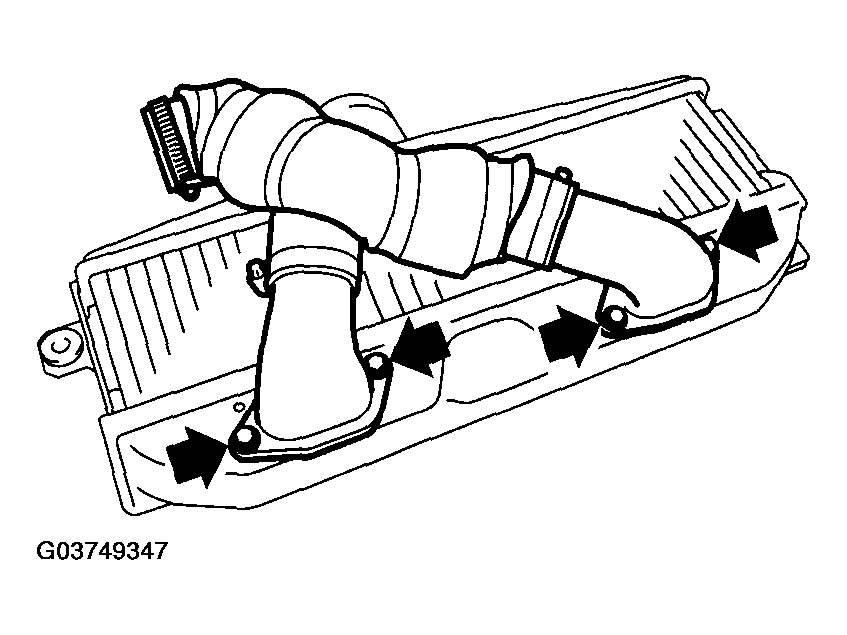

Fig 2: Installing Intercooler Duct From Intercooler

Courtesy of SUBARU OF AMERICA, INC.
