Intake Duct: Removal

  1. Disconnect the ground cable from battery.

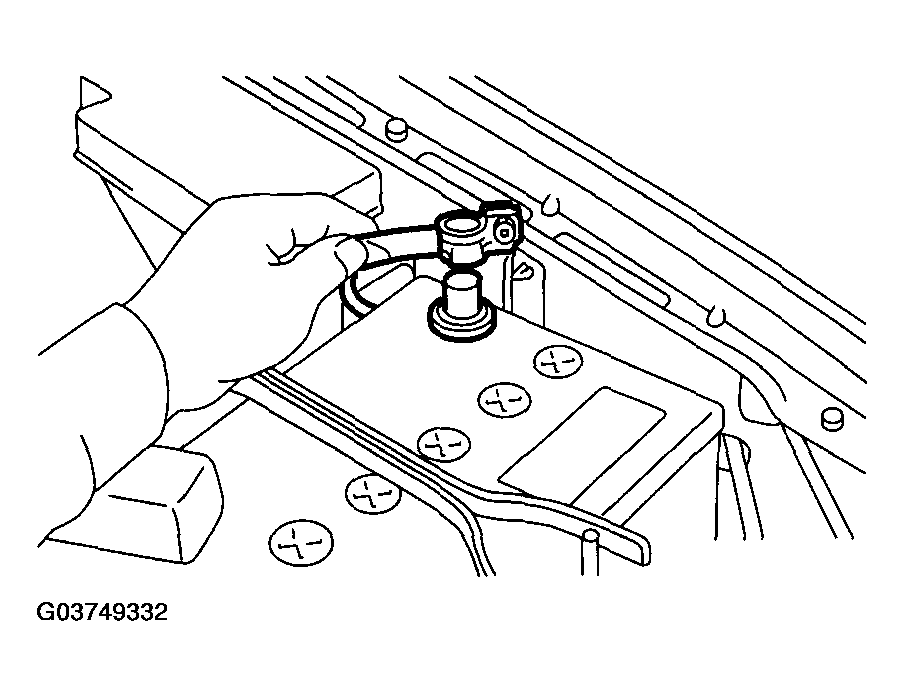

    Fig 1: Disconnecting Ground Cable From Battery
    G03749332Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intake manifold.

    < Ref. to REMOVAL , Intake Manifold. >

  3. Remove the sensor, engine harness and fuel pipe attached to intake manifold.

    < Ref. to DISASSEMBLY , Intake Manifold. >

  4. Remove the intake duct from intake manifold.

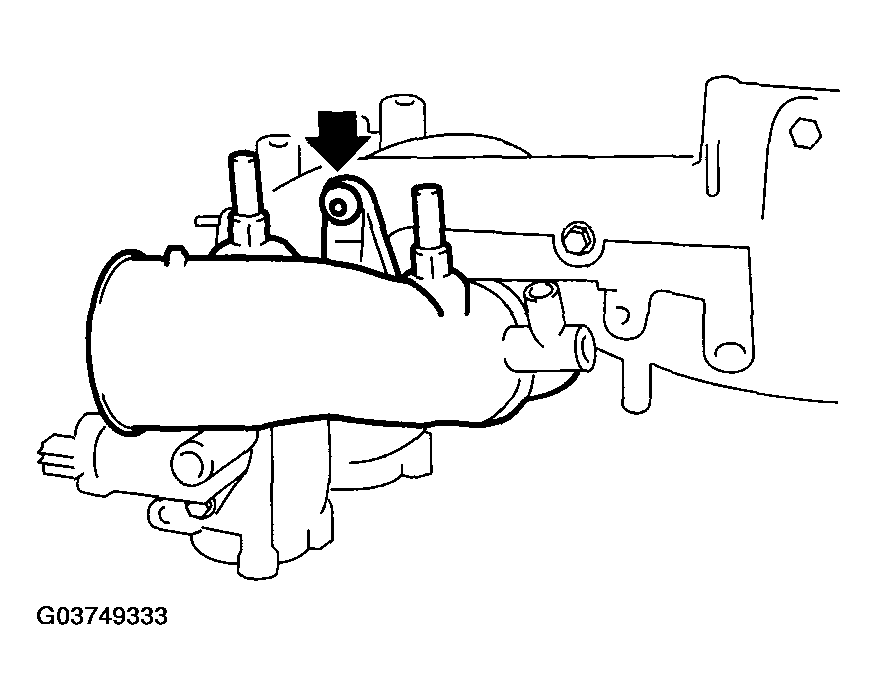

    Fig 2: Removing Intake Duct From Intake Manifold
    G03749333Courtesy of SUBARU OF AMERICA, INC.
