Components With Torque Specifications: Turbocharger

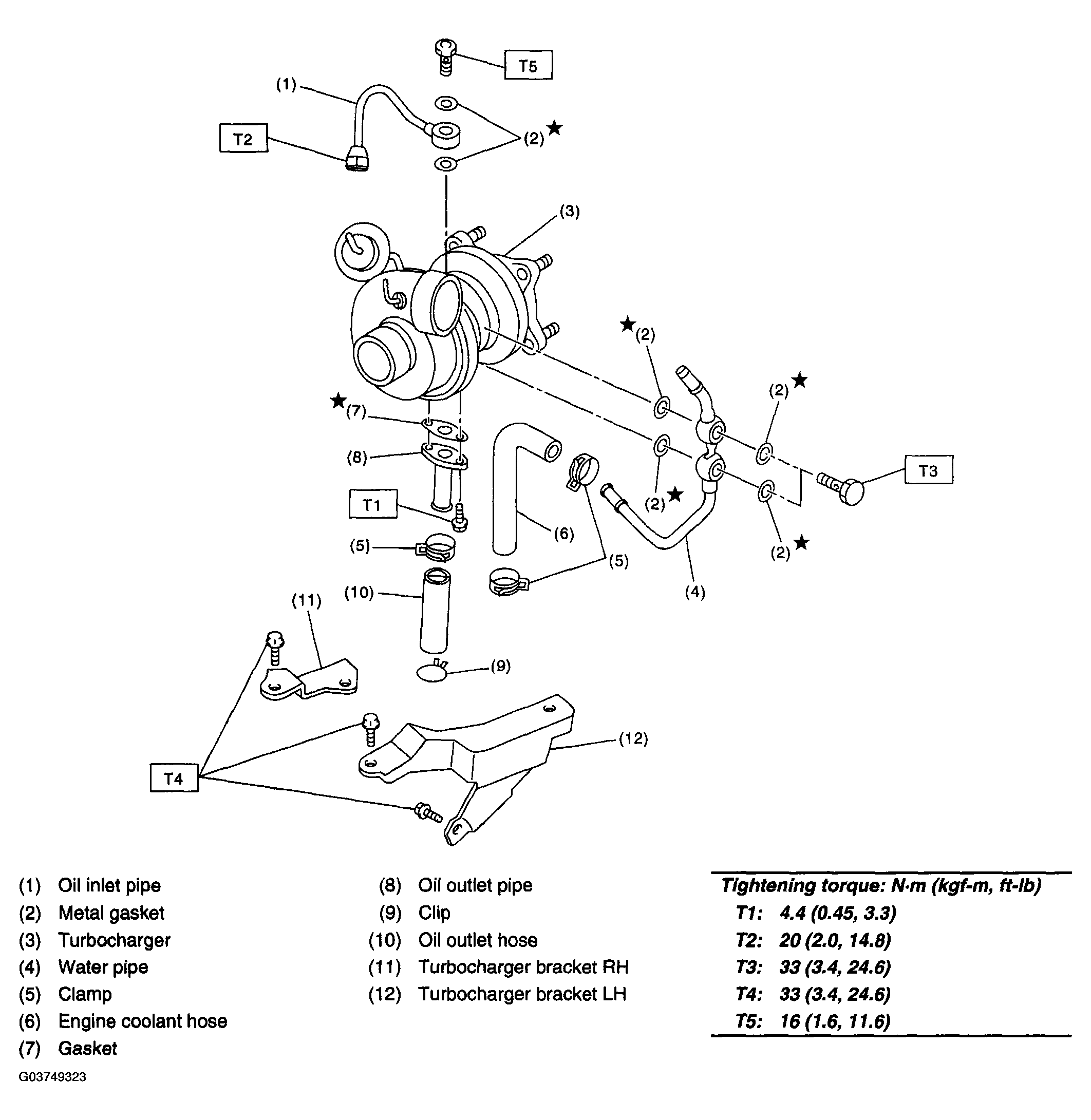

Fig 1: Turbocharger Replacement Components With Torque Specifications

G03749323

Courtesy of SUBARU OF AMERICA, INC.
