Air Cleaner: Installation

Install in the reverse order of removal.

Tightening torque:

33 N.m (3.4 kgf-m, 24.6 ft-lb)

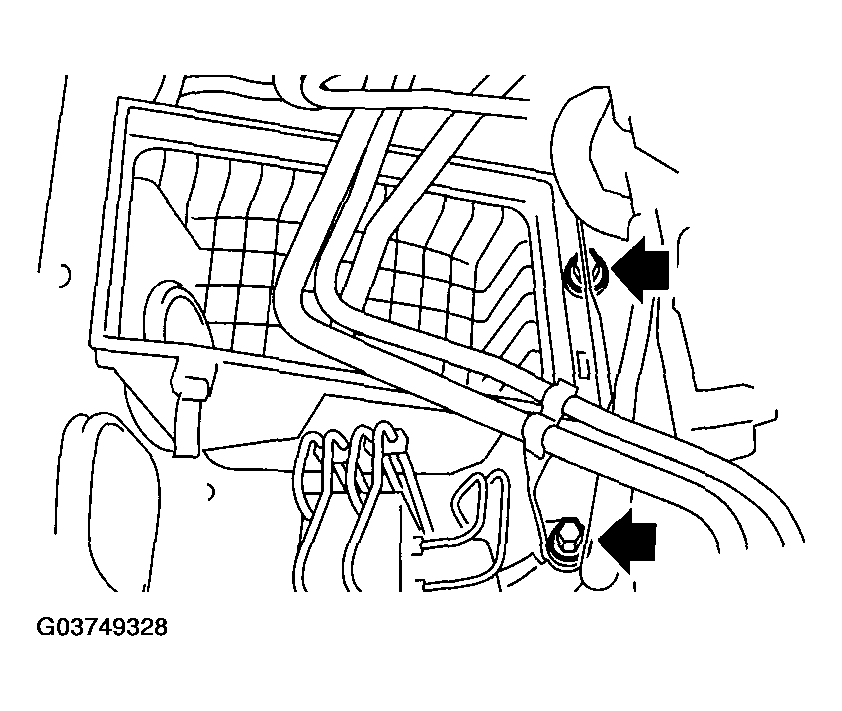

Fig 1: Installing Air Cleaner Lower Cover Bolt

Courtesy of SUBARU OF AMERICA, INC.

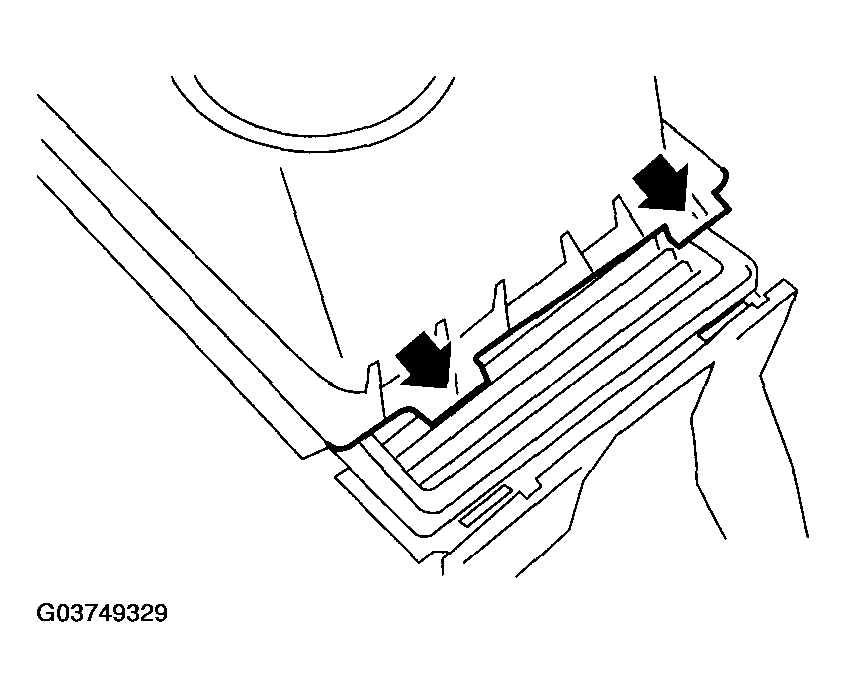

NOTE: Before installing the air cleaner upper cover, align the holes with protruding portions of air cleaner lower case, then secure the upper cover to the lower case.

Fig 2: Identifying Air Filter

Courtesy of SUBARU OF AMERICA, INC.
