Air Bypass Valve: Removal

  1. Disconnect air bypass hose from air bypass valve.

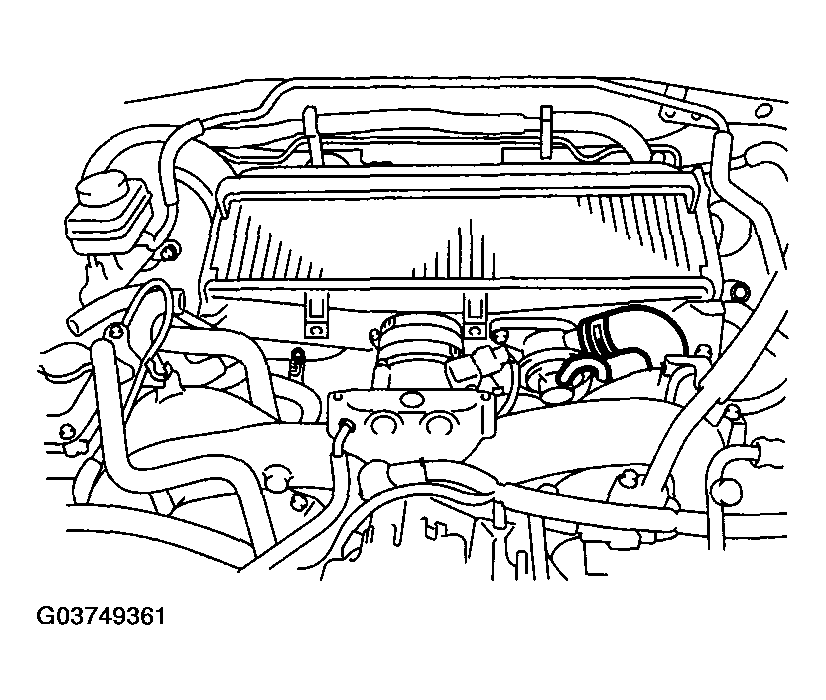

    Fig 1: Disconnecting Air Bypass Hose From Air Bypass Valve
    G03749361Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air bypass valve from intercooler.

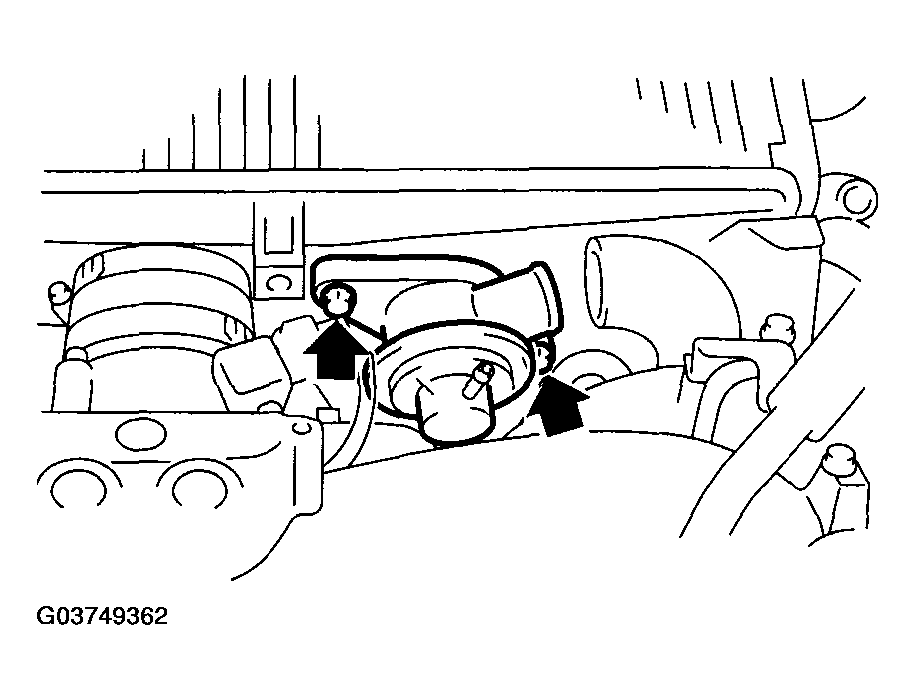

    Fig 2: Removing Air Bypass Valve From Intercooler
    G03749362Courtesy of SUBARU OF AMERICA, INC.
