Air Bypass Valve: Installation

Install in the reverse order of removal.

CAUTION: Be careful pinching of O-ring.

Tightening torque:

16 N.m (1.6 kgf-m, 11.6 ft-lb)

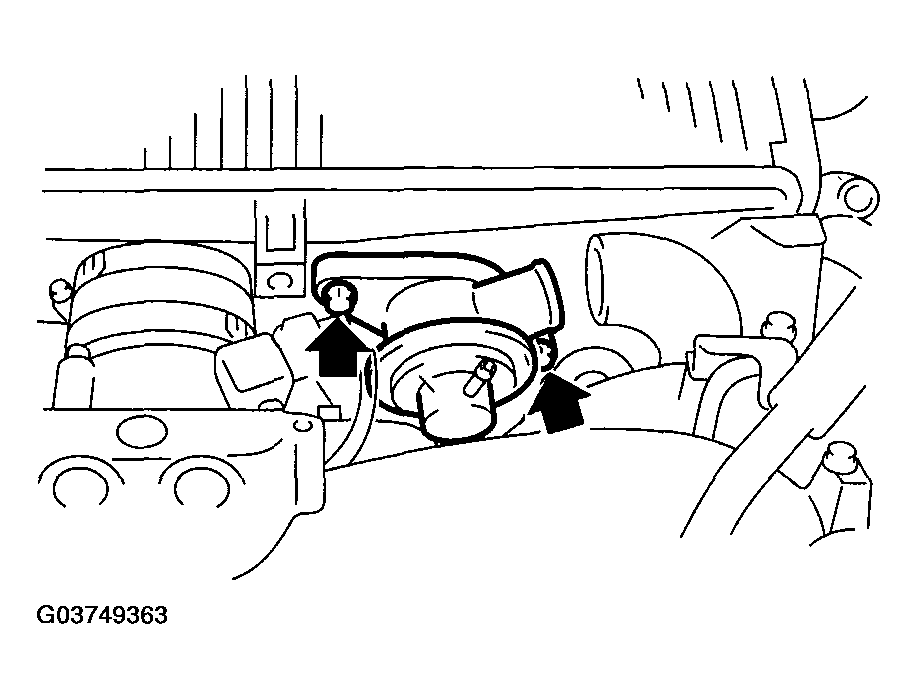

Fig 1: Installing Air Bypass Valve From Intercooler

Courtesy of SUBARU OF AMERICA, INC.
