- Lift-up vehicle and remove wheels.

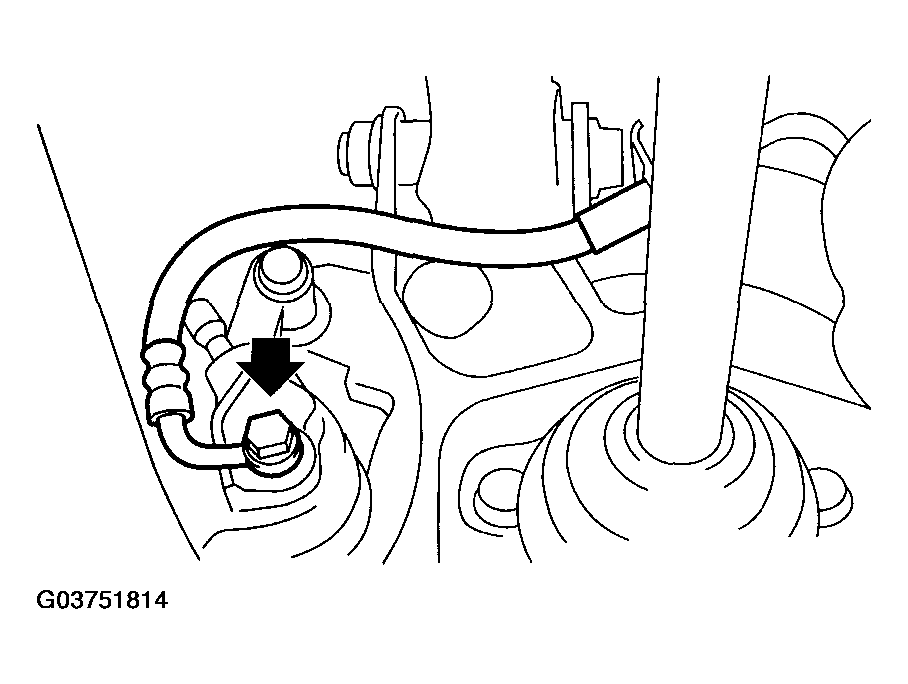

- Disconnect brake hose from caliper body assembly.
CAUTION:
Do not spill brake fluid on painted surface.
Wash it off immediately.
Courtesy of SUBARU OF AMERICA, INC.

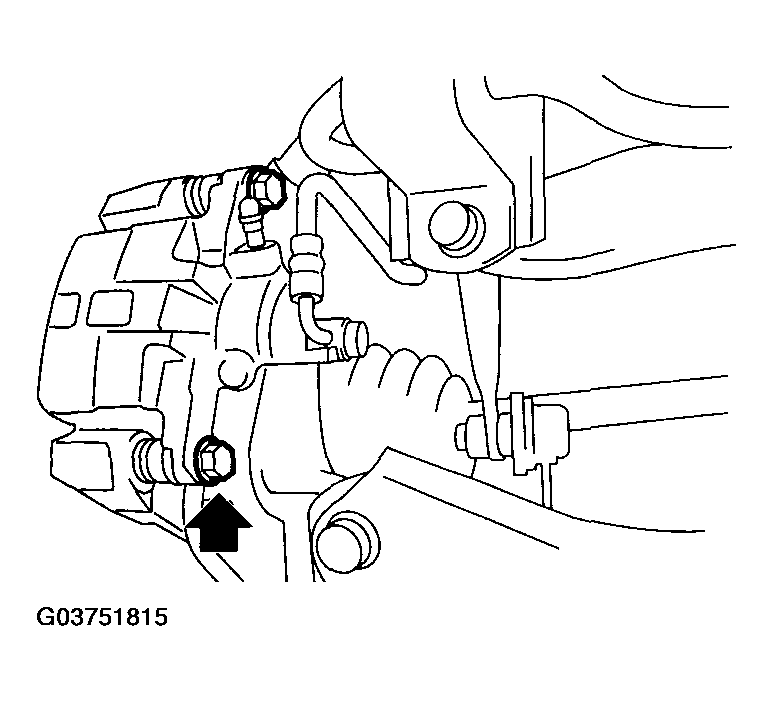

- Remove bolt securing lock pin to caliper body.
Courtesy of SUBARU OF AMERICA, INC.
- Raise caliper body and move it toward vehicle center to separate it from support.
- Remove support from back plate.
NOTE:
Remove support only when replacing it or the rotor.
It need not be removed when servicing caliper body assembly.
- Clean mud and foreign particles from caliper body assembly and support.
CAUTION:
Be careful not to allow foreign particles to enter inlet (at brake hose connector).
