Rear Brake Pad: Removal

  1. Loosen wheel nuts, jack-up vehicle, support it with safety stands, and remove wheel.
  2. Remove bottom bolt.

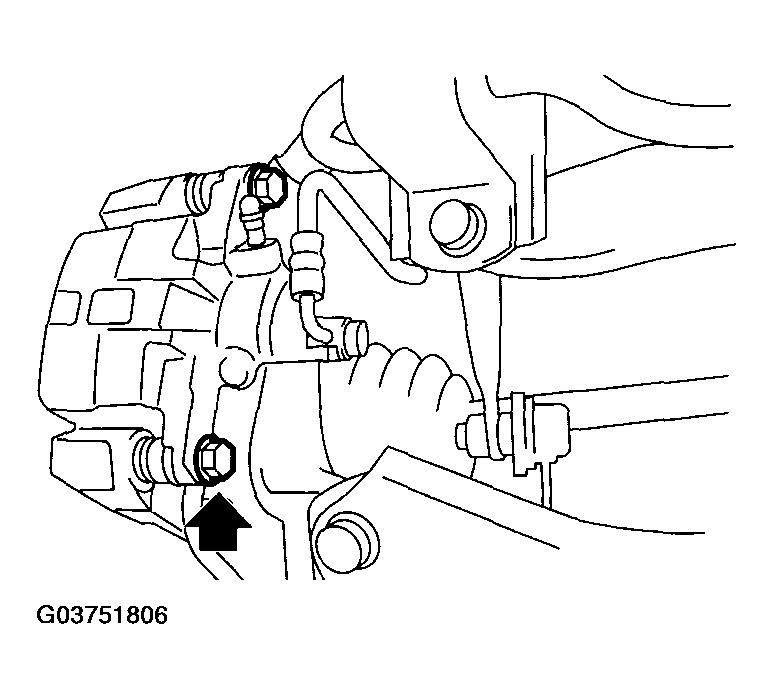

    Fig 1: Removing Bottom Bolt
    G03751806Courtesy of SUBARU OF AMERICA, INC.
  3. Raise caliper body and suspend it securely.
    NOTE: Do not disconnect brake hose from caliper body.
  4. Remove pad from support.
    NOTE: If brake pad is difficult to remove, use the same procedure as for front disc brake pad.
    < Ref. to , REMOVAL , Front Brake Pad. >

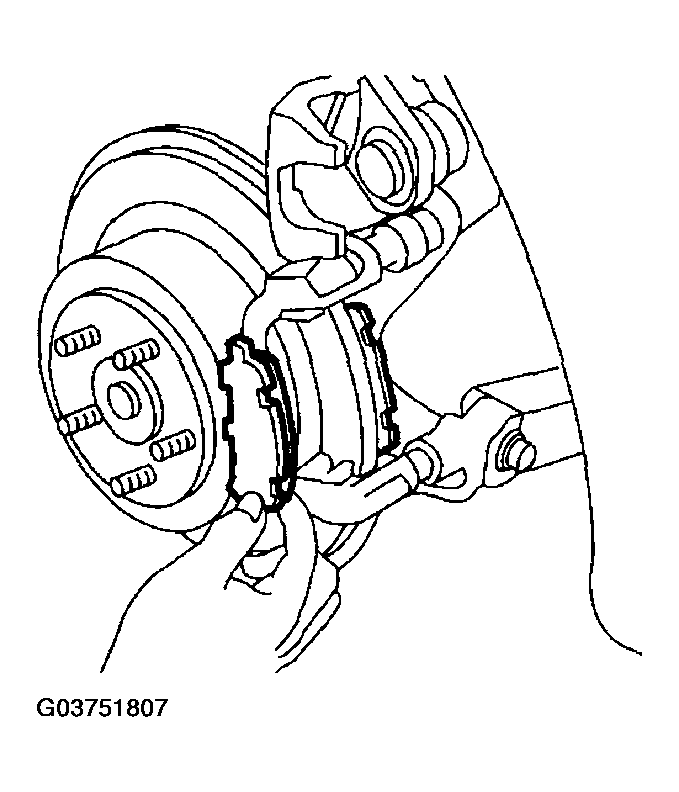

    Fig 2: Removing Pad From Support
    G03751807Courtesy of SUBARU OF AMERICA, INC.
