Front Disc Rotor: Removal

  1. Loosen wheel nuts, jack-up vehicle, support it with safety stands, and remove wheel.
  2. Remove caliper body from housing, and suspend it from strut using a wire.

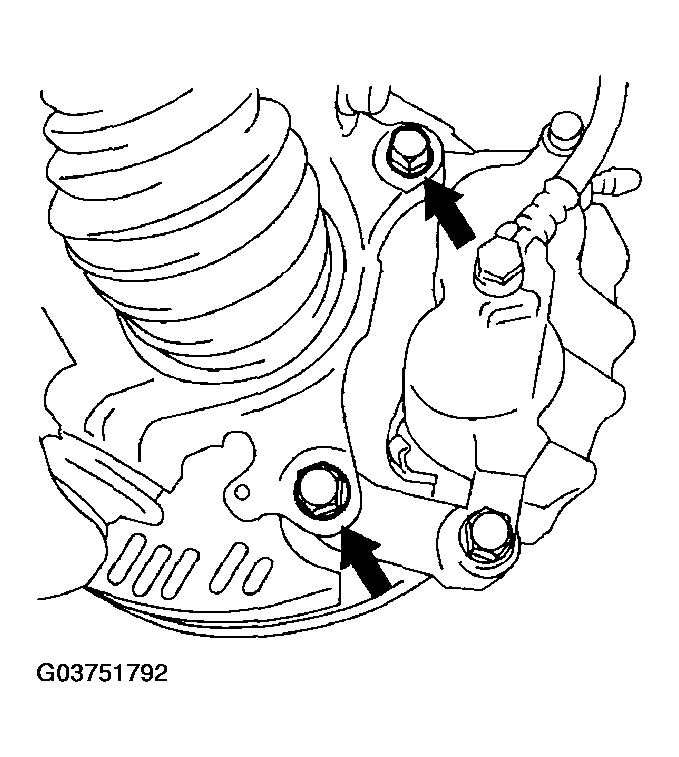

    Fig 1: Removing Caliper Body From Housing
    G03751792Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the disc rotor.
    NOTE: If disc rotor seizes up within the hub, drive disc rotor out by installing an 8-mm bolt in holes B on the rotor.
    Fig 2: Installing Bolts In Holes On Rotor
    G03751793Courtesy of SUBARU OF AMERICA, INC.
  4. Clean mud and foreign particles from caliper body assembly and support.
