At Model

  1. Pull up parking brake lever.
  2. Disconnect ground cable from battery.
  3. Remove instrument panel lower cover from instrument panel.
  4. Remove clevis pin which secures brake pedal to brake booster operating rod. Also disconnect stop light switch connector.
  5. Remove AT unit from brake panel (2 nuts).
  6. Remove two bolts and four nuts which secure brake pedal to pedal.

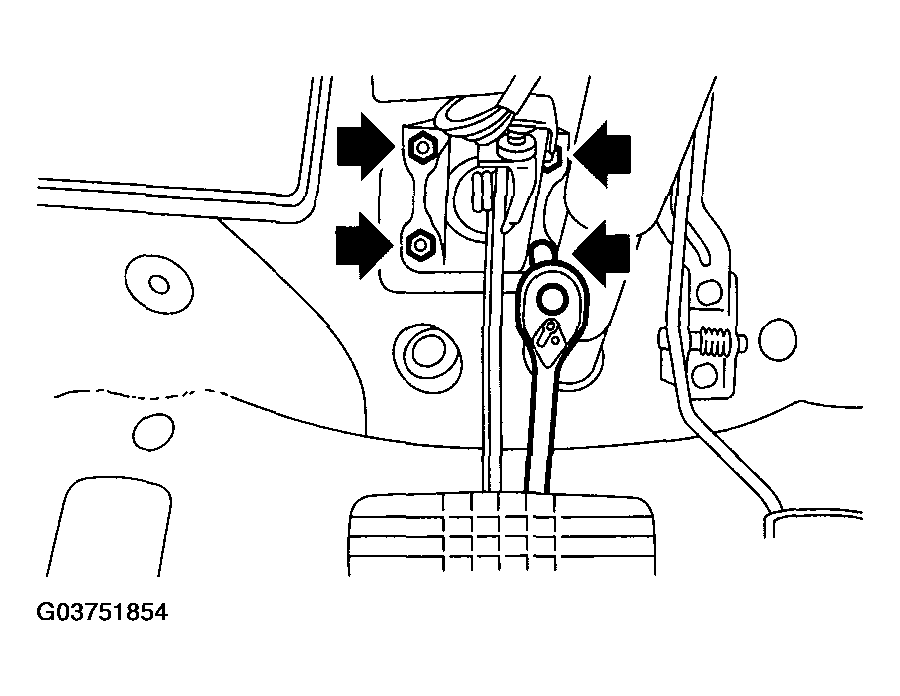

    Fig 1: Removing Bolts And Nuts Which Secure Brake Pedal To Pedal
    G03751854Courtesy of SUBARU OF AMERICA, INC.
