Rear Brake Hose

  1. Separate brake pipe from brake hose.
    NOTE: Always use flare nut wrench and be careful not to deform flare nut.

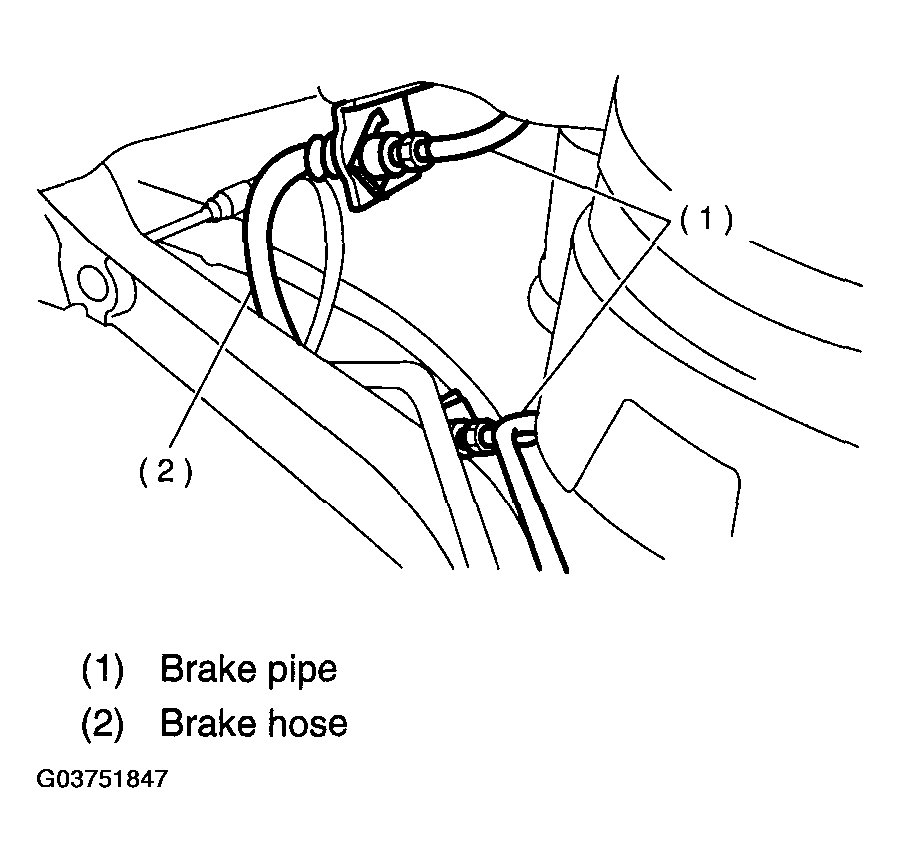

    Fig 1: Removing Rear Brake Hose
    G03751847Courtesy of SUBARU OF AMERICA, INC.

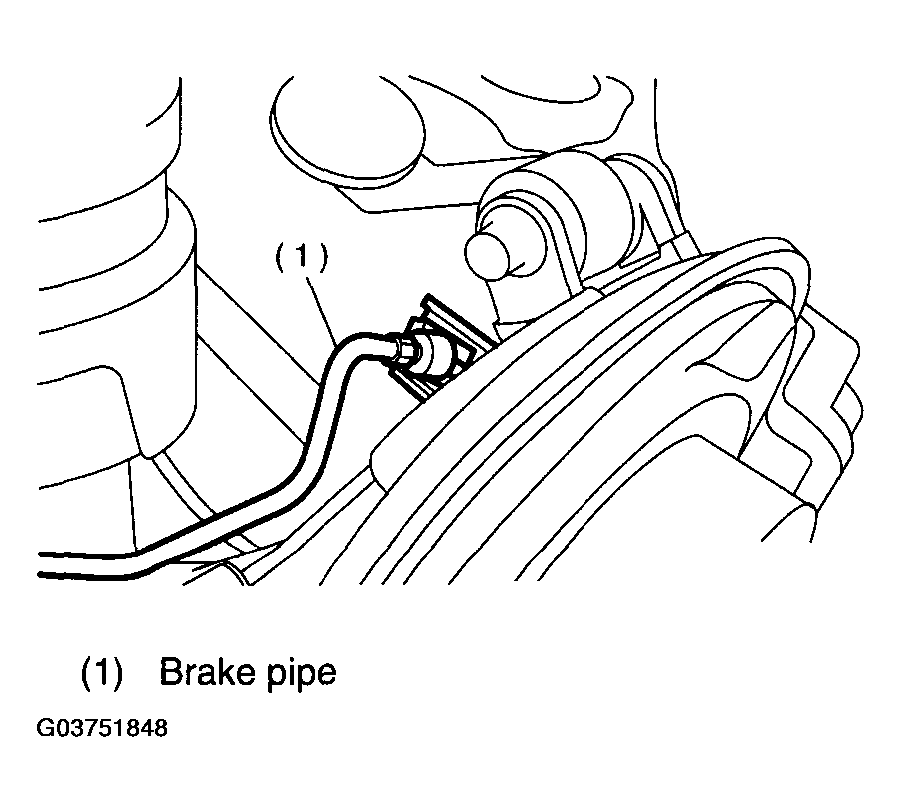

    Fig 2: Removing Rear Brake Pipe
    G03751848Courtesy of SUBARU OF AMERICA, INC.
  2. Pull out clamp to remove brake hose.
