Front Brake Hose

  1. Separate brake pipe from brake hose.
    NOTE: Always use flare nut wrench and be careful not to deform flare nut.

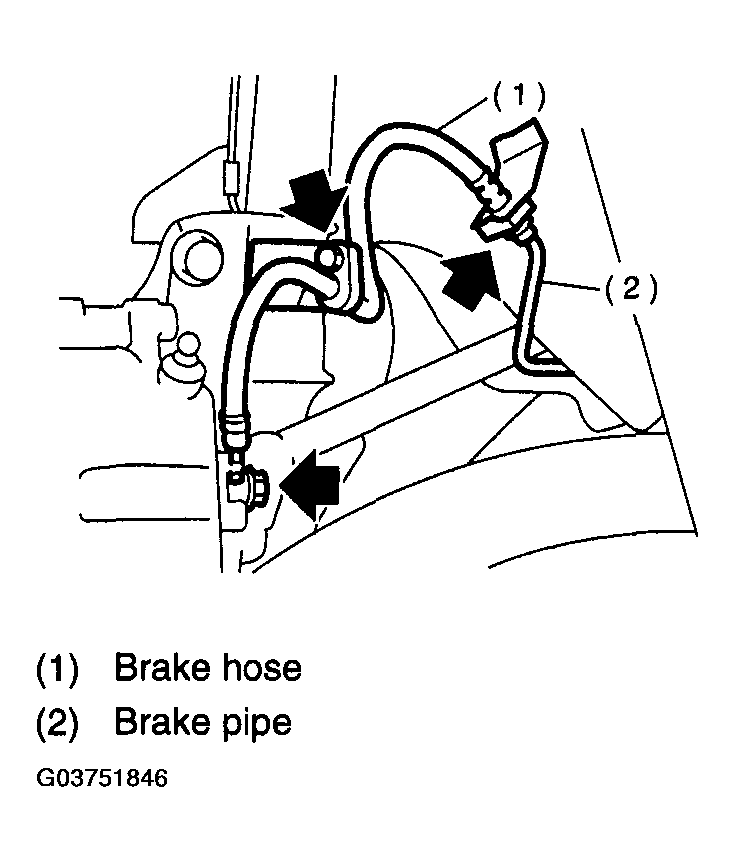

    Fig 1: Removing Brake Pipe From Brake Hose (Front Brake Hose)
    G03751846Courtesy of SUBARU OF AMERICA, INC.
  2. Pull out clamp to remove brake hose.
  3. Remove bolt at strut and union bolt.
