Lateral Accelerometer: Testing and Inspection

Yaw Rate and Lateral G Sensor

INSPECTION

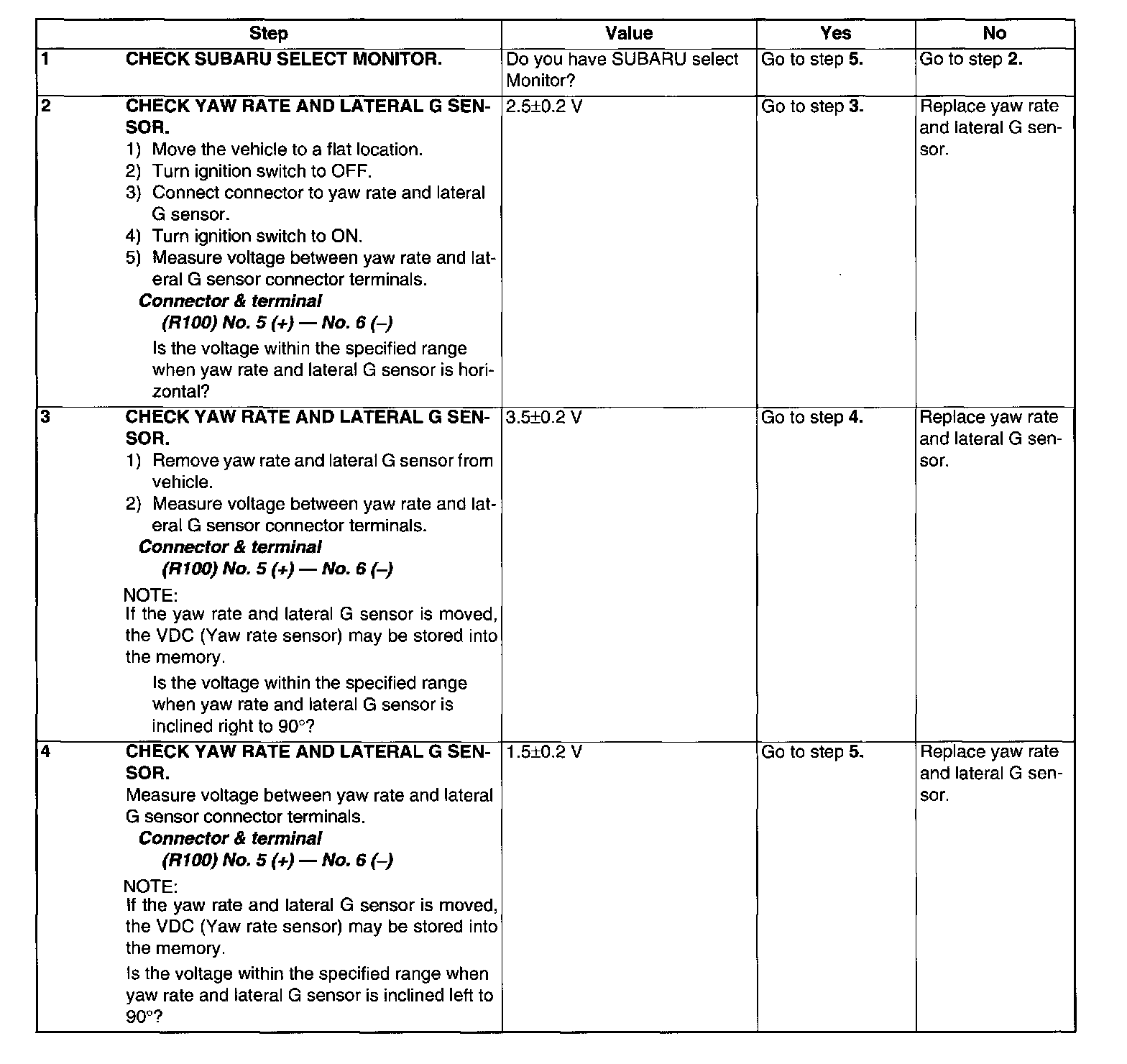

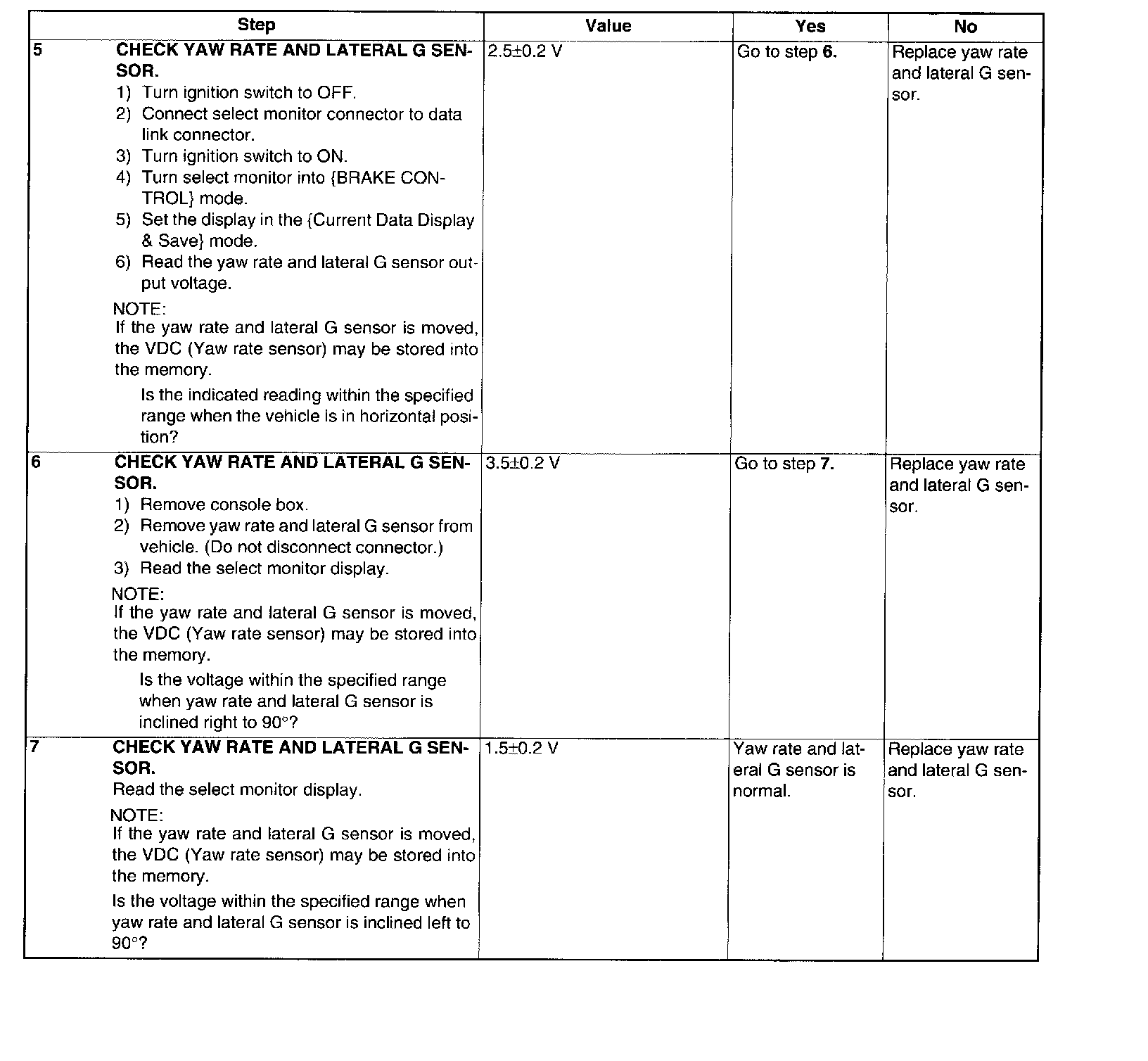

LATERAL G SENSOR SIGNAL

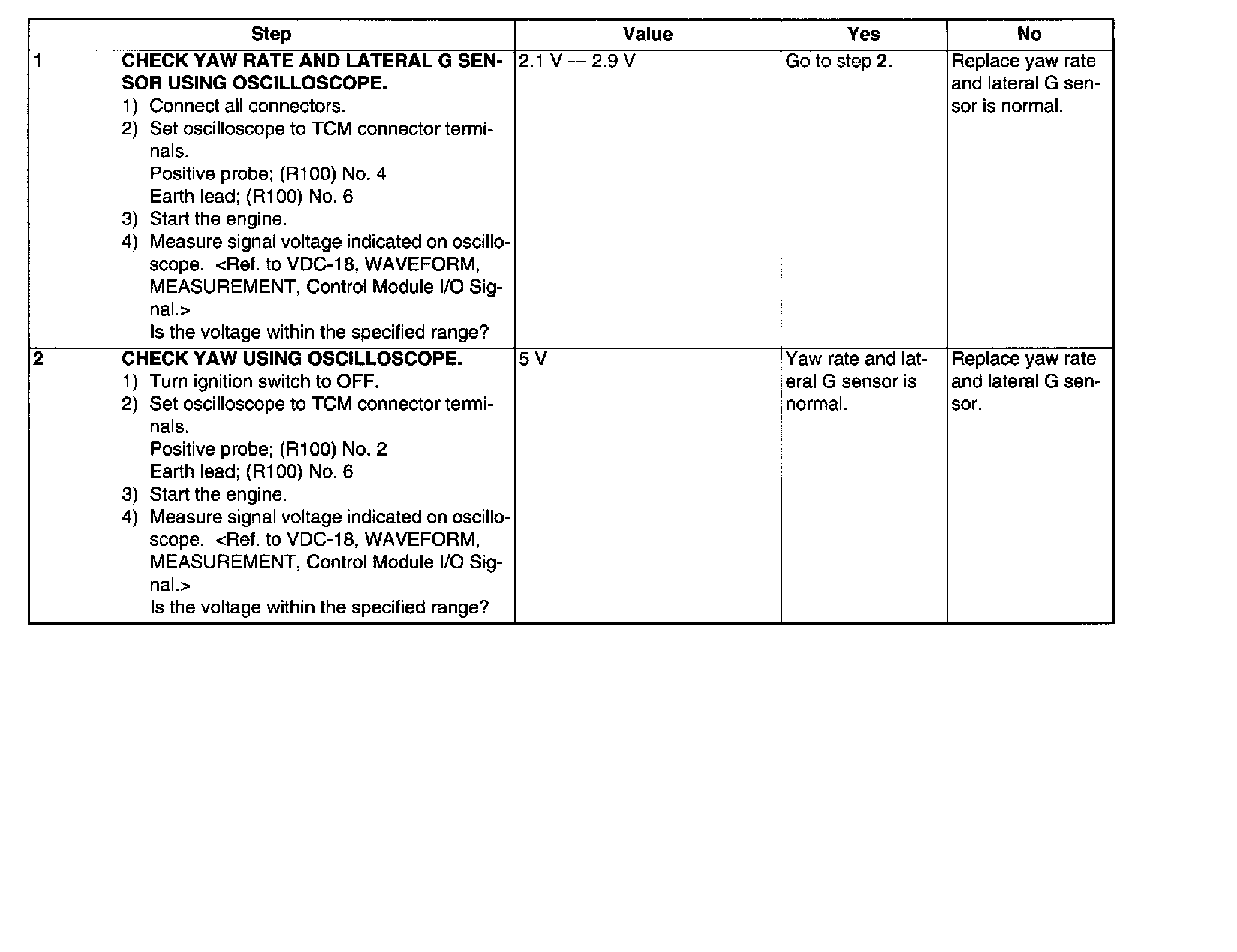

YAW RATE SENSOR SIGNAL
