Home >> Subaru >> 2004 >> Outback F4-2.5L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - A/T >> Shift Interlock Switch >> Locations

Shift Interlock Switch: Locations

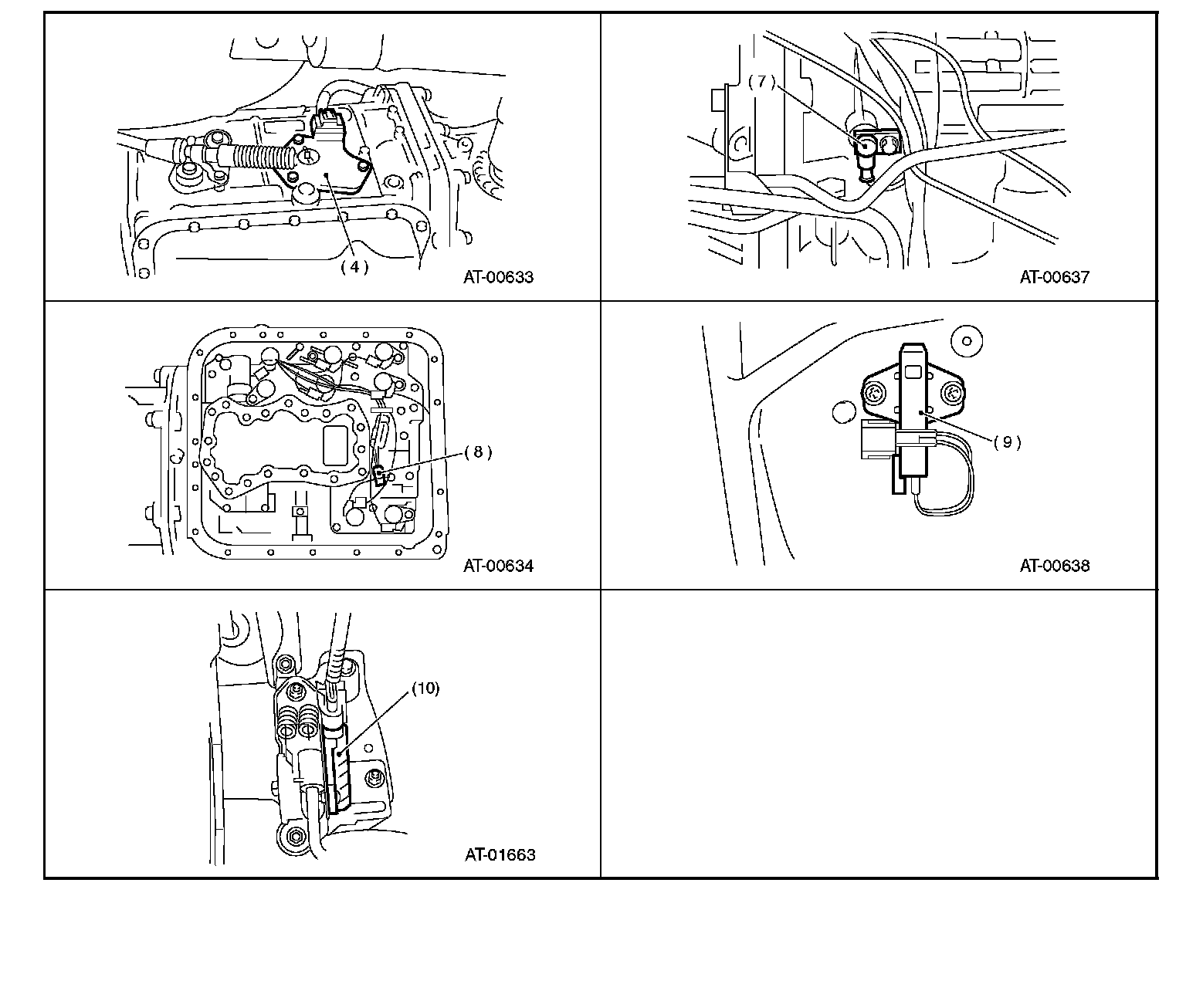

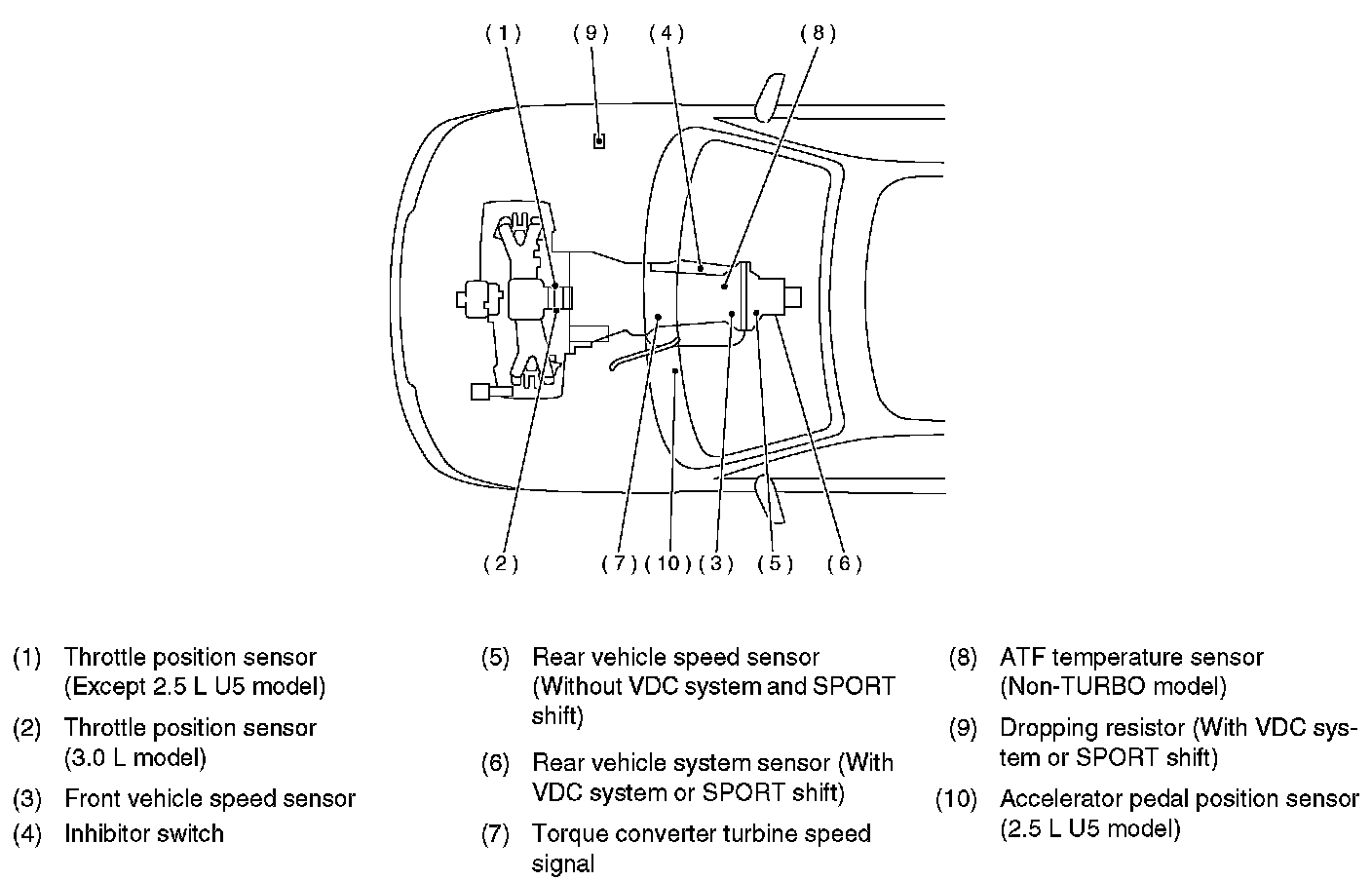

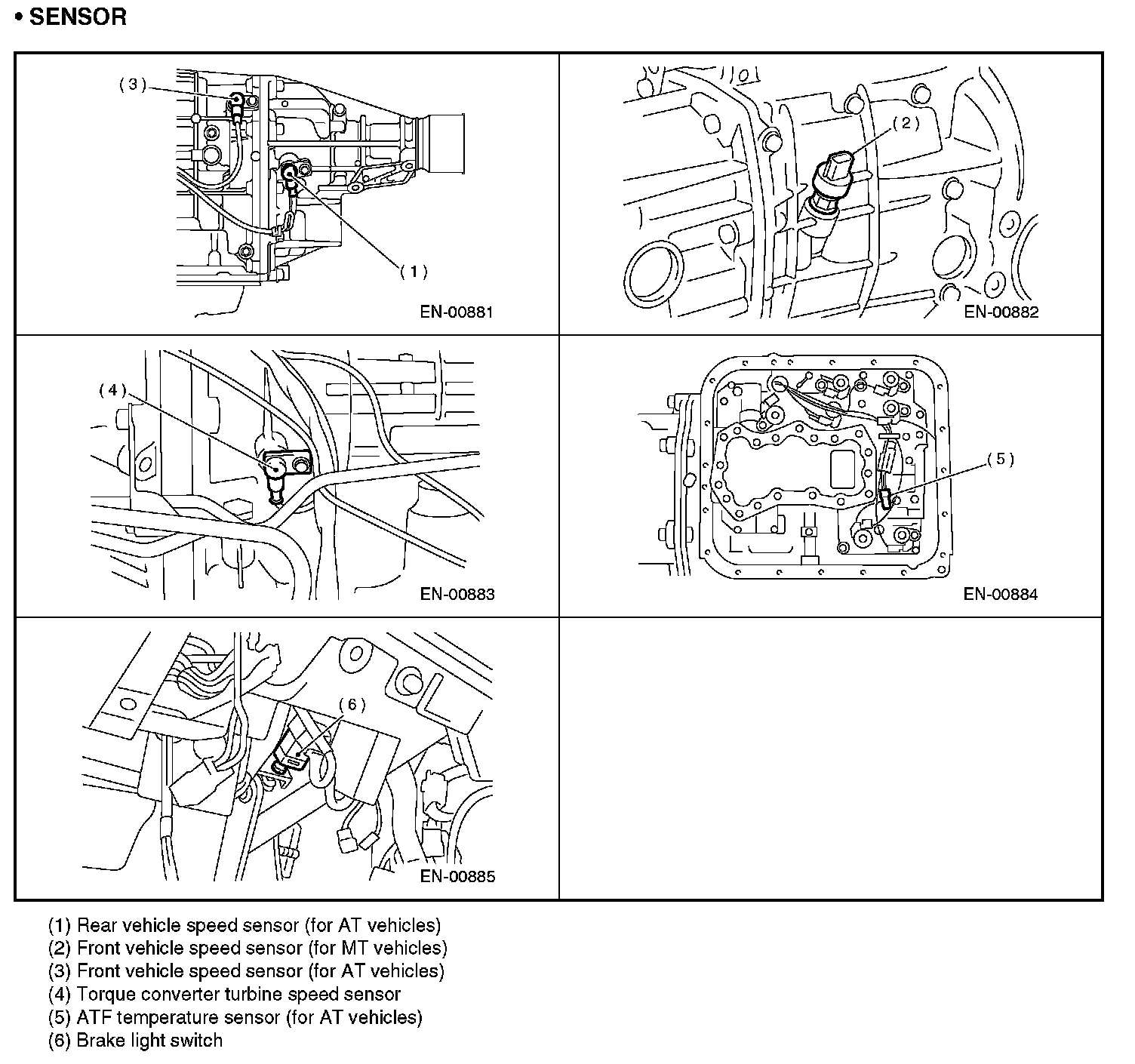

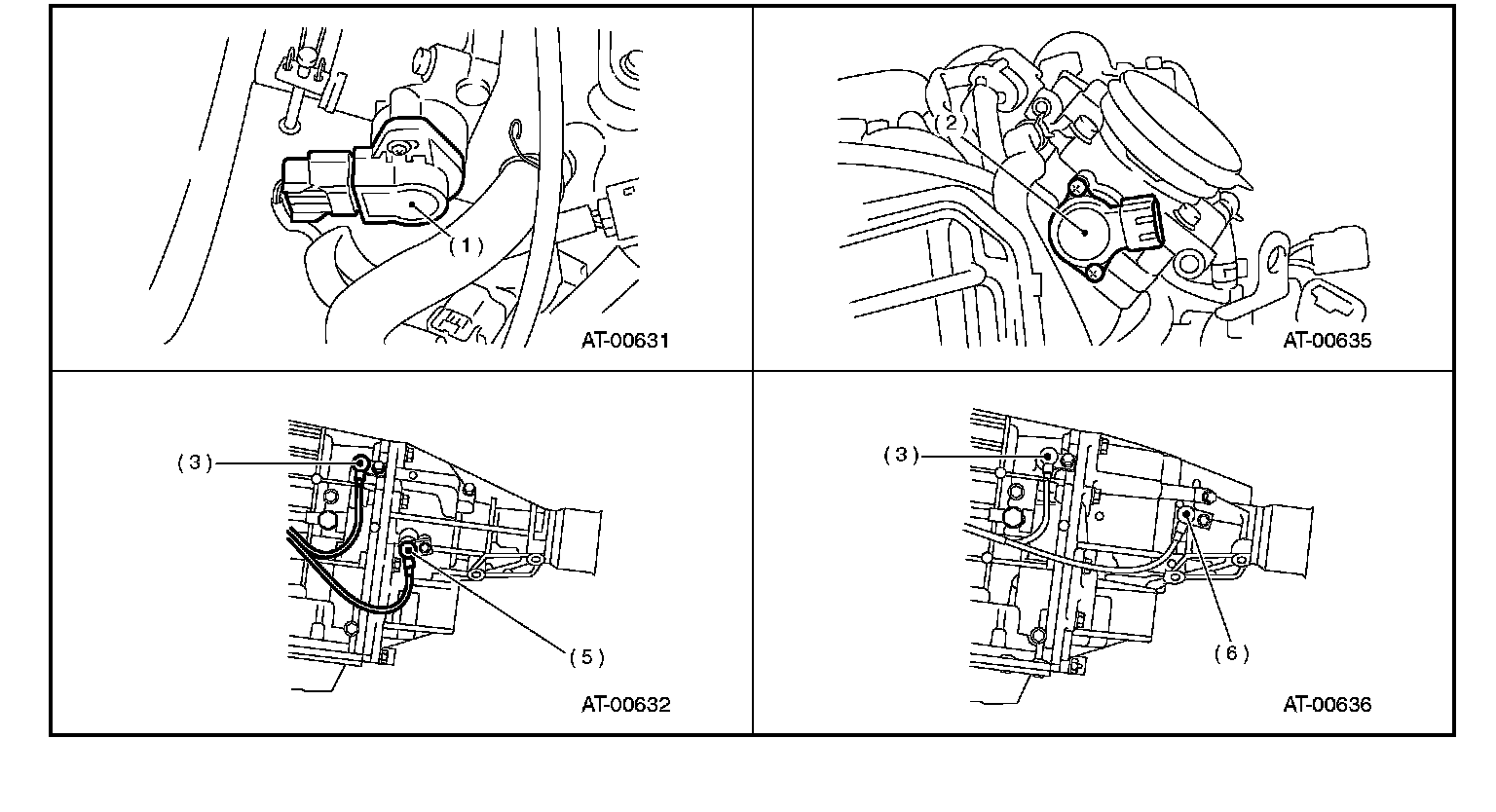

Electrical Components Location - Sensor:
