DTC P0246: Turbo/Super Charger WASTEGATE Solenoid "A" High

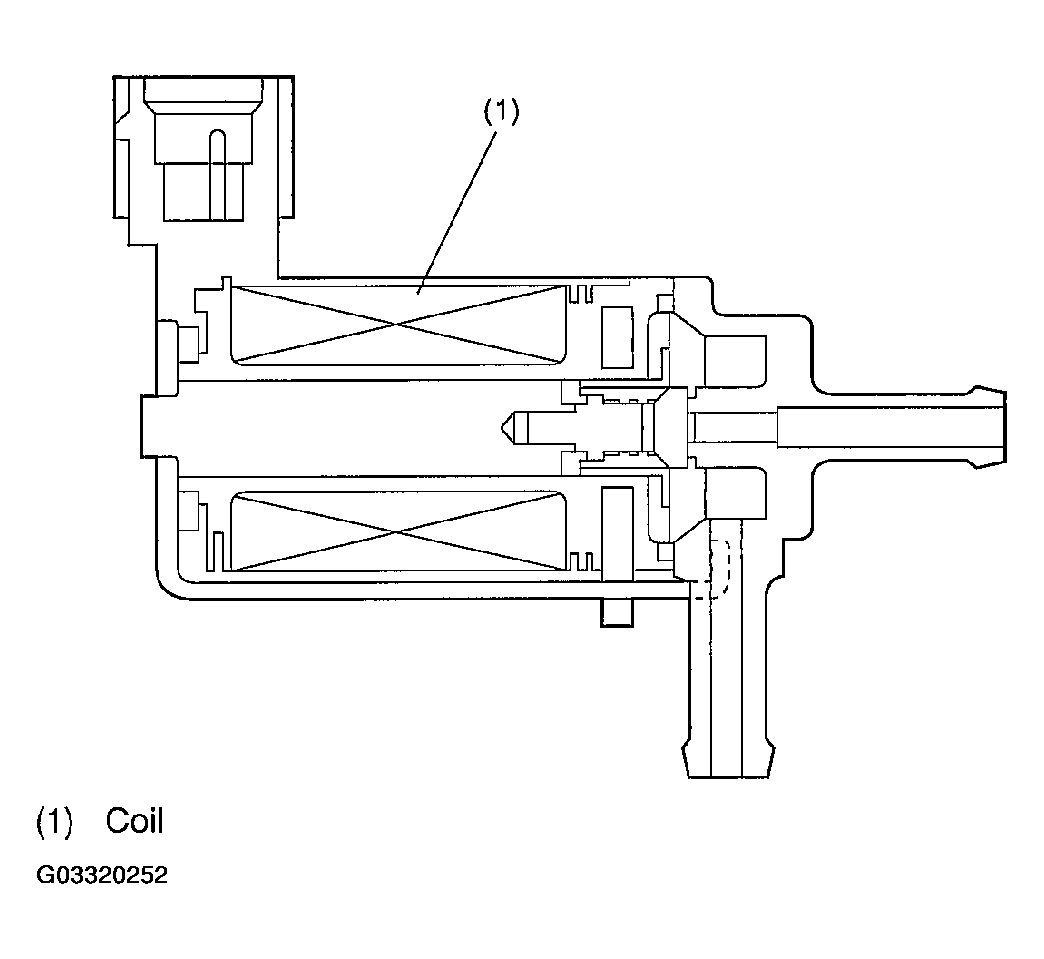

Detect the open or short circuit of wastegate control solenoid valve.

Judge NG when the terminal output voltage remains Low or High during outputting the duty signal.

Perform the diagnosis continuously after engine starts.

• Abnormality Judgment

  Judge NG when the continuous time until completing the malfunction criteria below becomes more than 655 milliseconds.

  Judgment Value

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value
  Terminal output voltage	High
  Duty ratio for turbocharged pressure control	> 25%

  Time Needed for Diagnosis:  655 milliseconds

  Malfunction Indicator Light Illumination:  Illuminates as soon as the malfunction occurs.

• Normality Judgment

  Judge OK and clear the NG when the malfunction criteria below are completed.

  Judgment Value

  JUDGMENT VALUE CHART



  Malfunction Criteria	Threshold Value
  Terminal output voltage	Low

• When the OK idling cycle was completed 40 times in a row
• When "Clear Memory" was performed

• When the OK driving cycle was completed 3 times in a row
• When "Clear Memory" was performed

None

Memorize the freeze frame data. (For test mode $02)
