Timing Belt Cover: Removal

  1. Remove the V-belt. < Ref. to REMOVAL  . >
  2. Remove the crank pulley. < Ref. to REMOVAL  . >
  3. Remove the timing belt cover (LH) (A).
  4. Remove the timing belt cover (RH) (B).
  5. Remove the front timing belt cover (C).

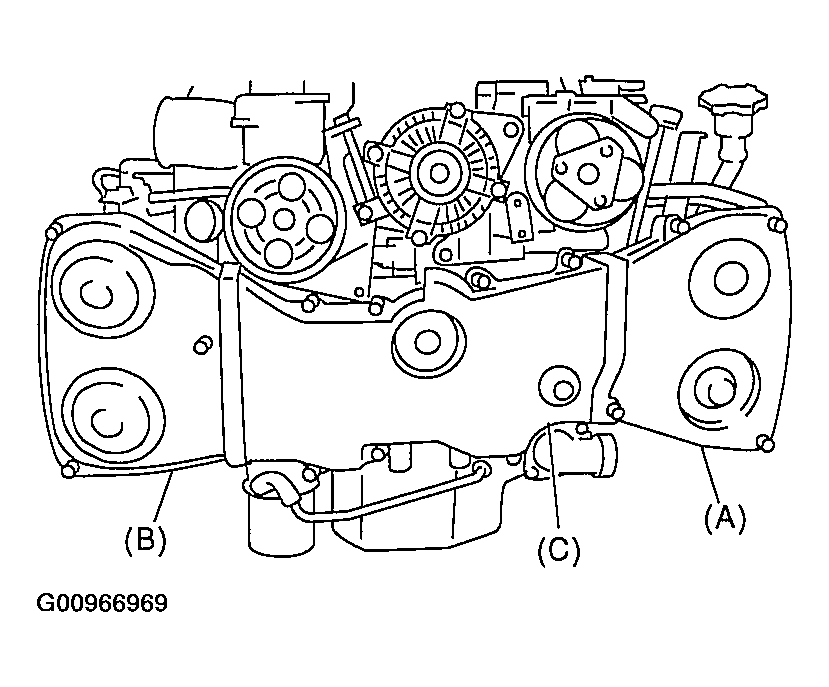

    Fig 1: Removing Front Timing Belt Cover
    G00966969Courtesy of SUBARU OF AMERICA, INC.
