LEMON Manuals
: Even more car manuals for everyone
Home
>>
Subaru
>>
2004
>>
Forester XT, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrumentation - Driver Info
>>
Combination Meter System
>>
Inspection
>>
Check Fuel Level Sensor
Check Fuel Level Sensor

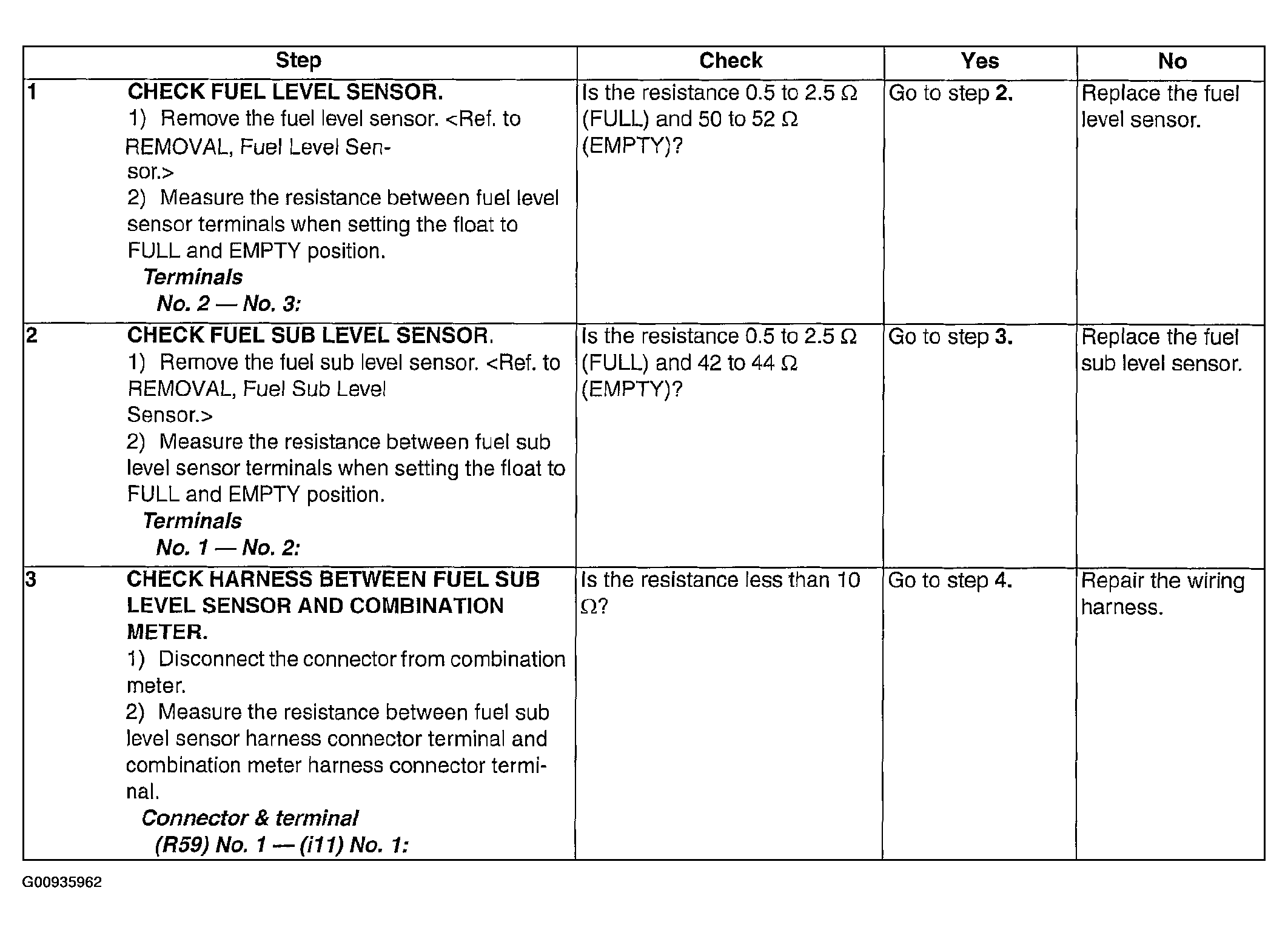

Fig 1: Check Fuel Level Sensor Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

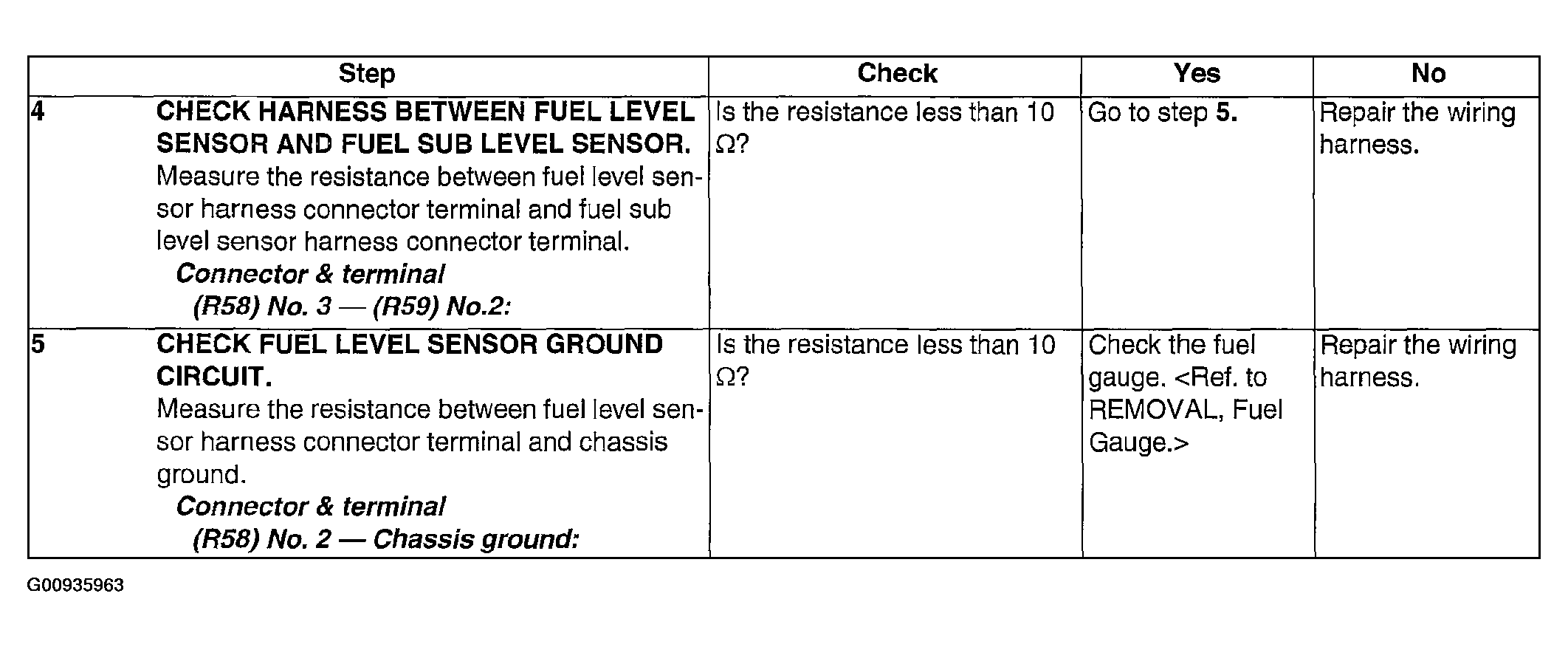

Fig 2: Check Fuel Level Sensor Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
