Malfunction Indicator Light Remains Blinking At A Cycle Of 3 HZ.: Wiring Diagram

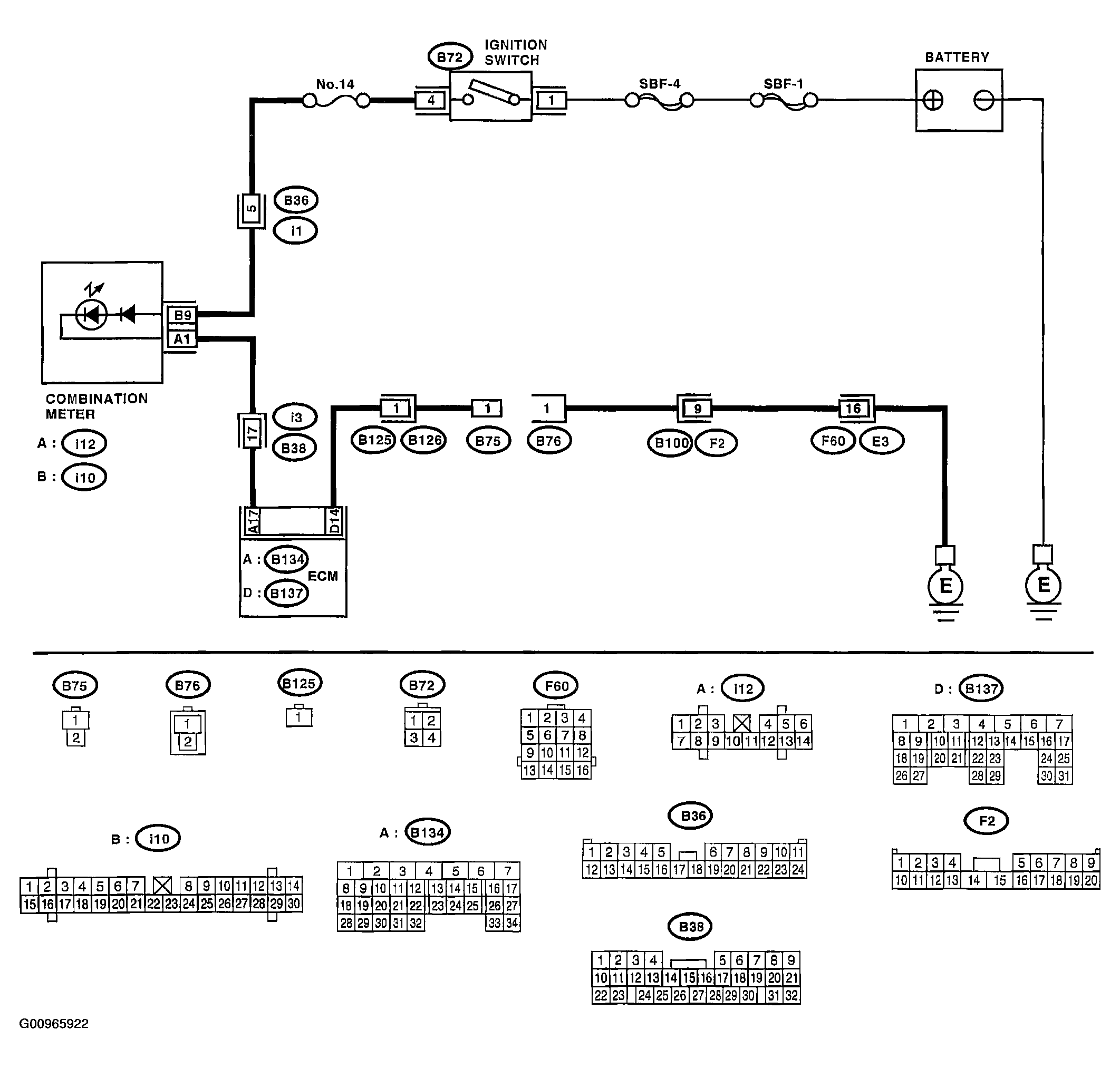

Fig 1: Malfunction Indicator Light Remains Blinking At Cycle Of 3 HZ Wiring Diagram

G00965922

Courtesy of SUBARU OF AMERICA, INC.
