Rear Exhaust Pipe: Removal

Disconnect the ground cable from battery.

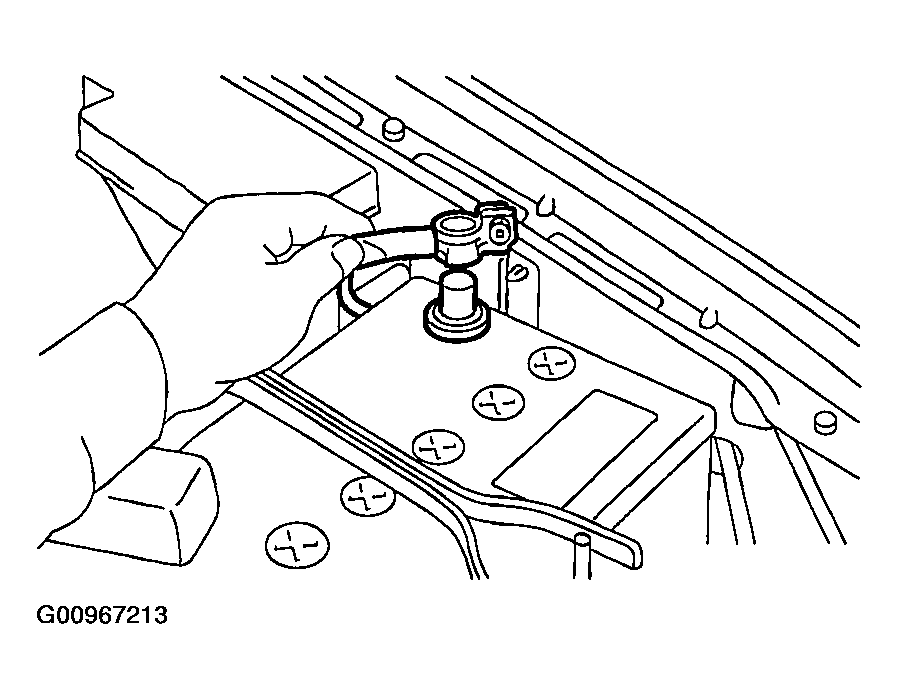

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Separate the rear exhaust pipe from center exhaust pipe.
CAUTION: Be careful, the exhaust pipe is hot.

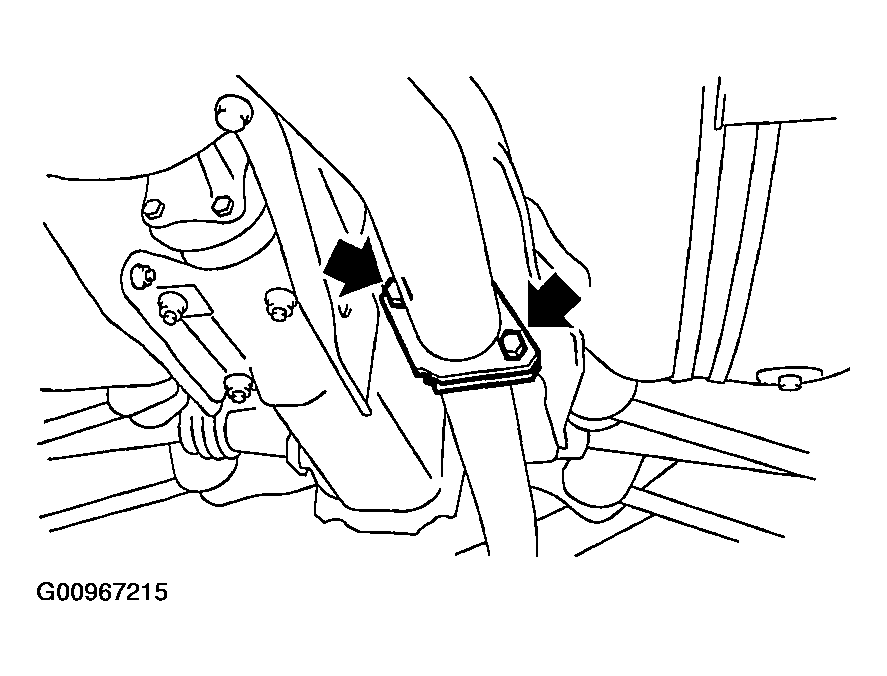

Fig 2: Identifying Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Separate the rear exhaust pipe from muffler.
CAUTION: Be careful not to pull down the rear exhaust pipe.

Fig 3: Identifying Muffler
Courtesy of SUBARU OF AMERICA, INC.
Separate the rear exhaust pipe from cushion rubber, and then remove.

Fig 4: Identifying Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
