Center And Rear Exhaust Pipe, And Muffler

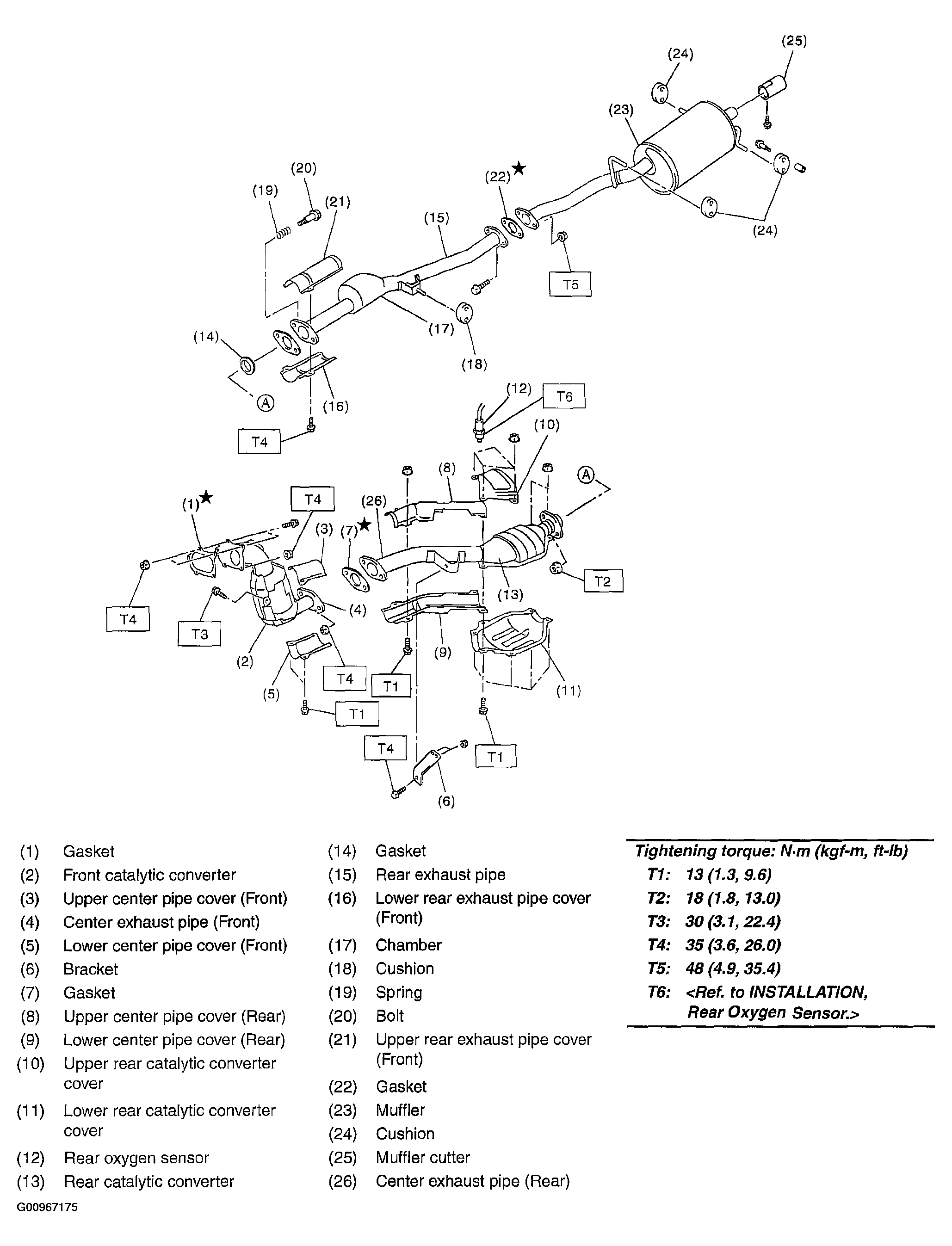

Fig 1: Center And Rear Exhaust Pipe & Muffler Replacement Components With Torque Specifications

G00967175

Courtesy of SUBARU OF AMERICA, INC.
