Wiper and Washer System (Front): Wiring Diagram

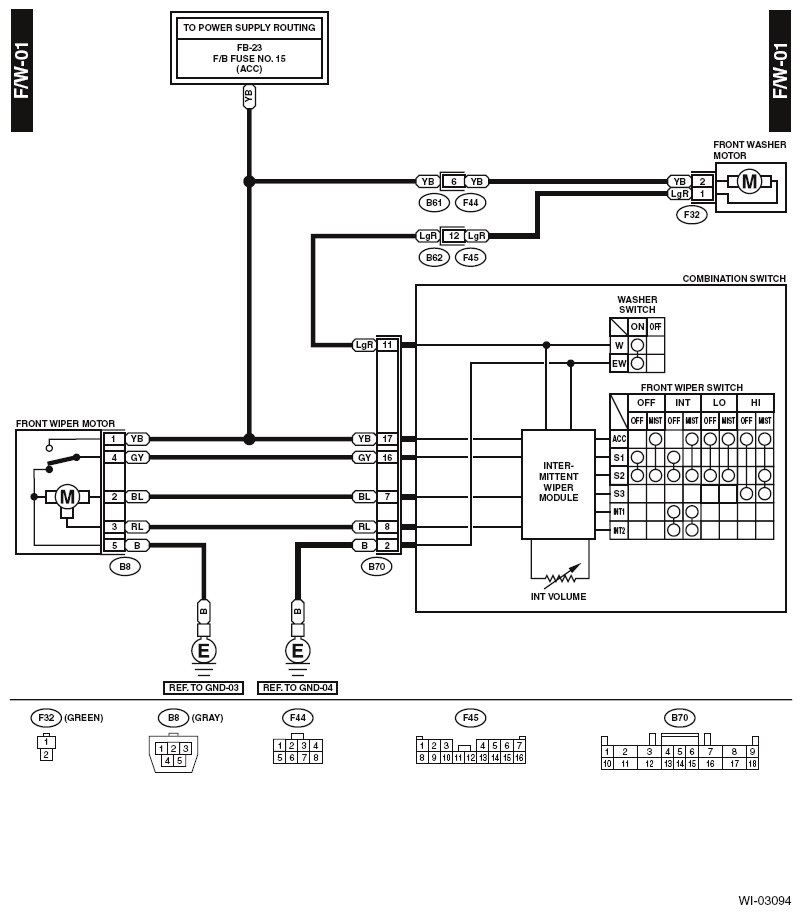

Fig 1: Wiper And Washer System (Front) Wiring Diagram

G11888093

Courtesy of SUBARU OF AMERICA, INC.
