Power Supply Routing: Wiring Diagram

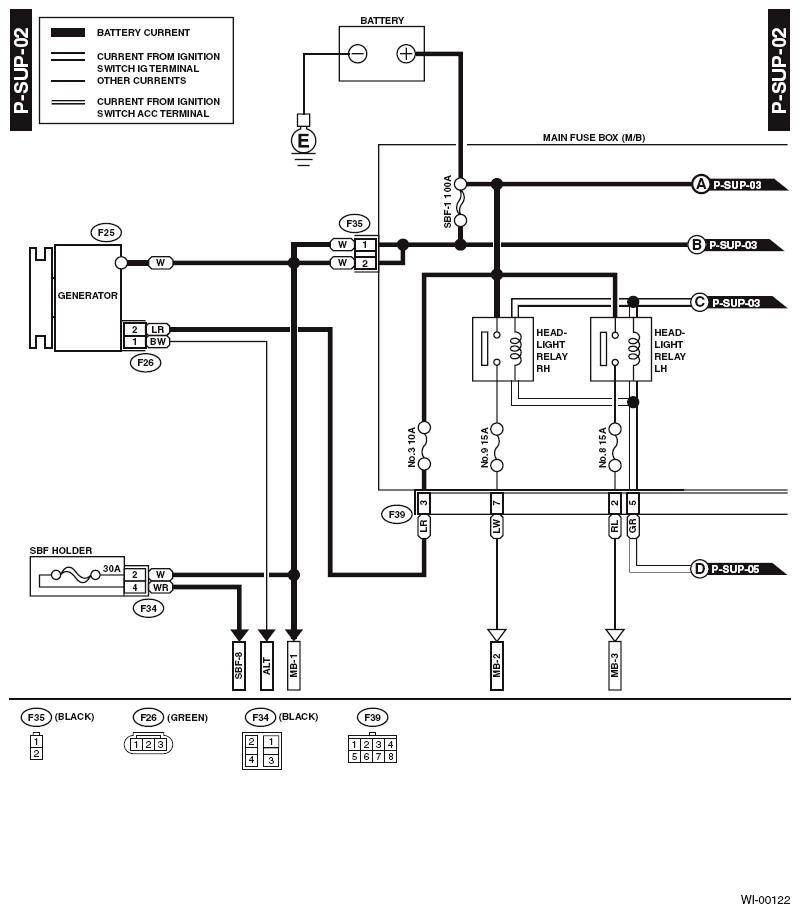

Fig 1: Power Supply Routing Schematic (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

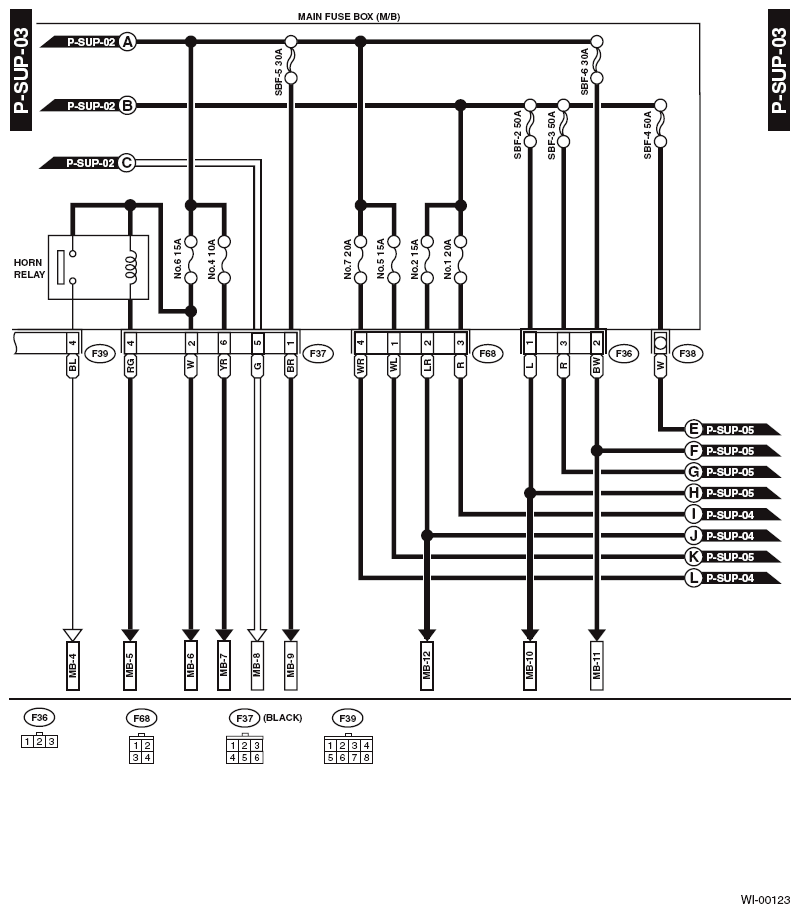

Fig 2: Power Supply Routing Schematic (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

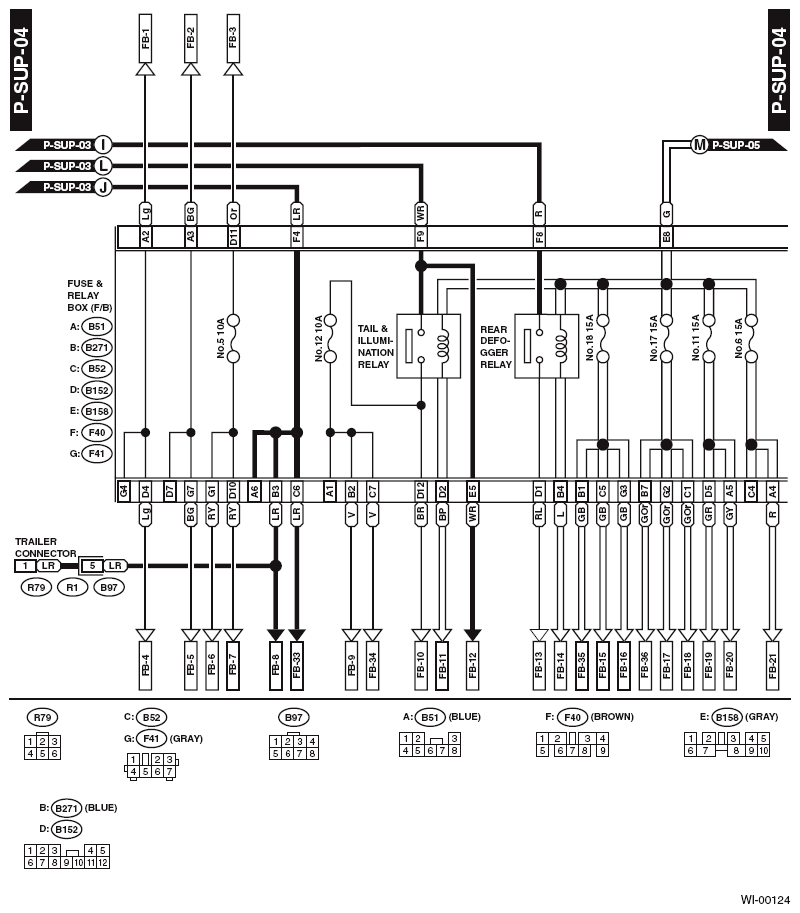

Fig 3: Power Supply Routing Schematic (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

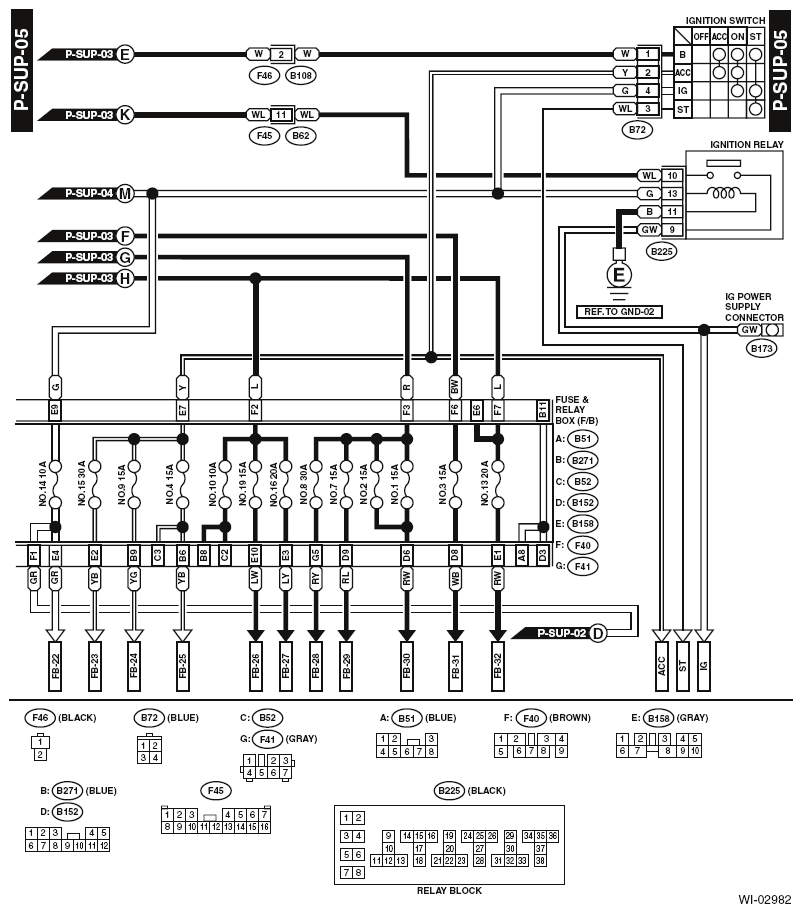

Fig 4: Power Supply Routing Schematic (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
