Oil Pressure Warning Light System: Wiring Diagram

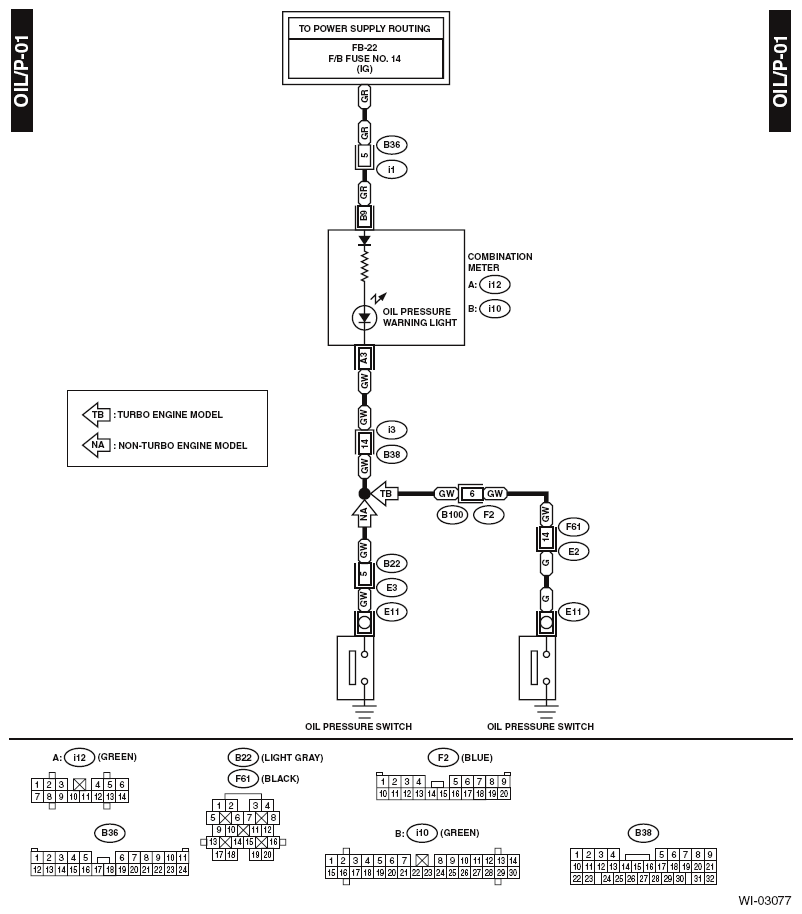

Fig 1: Oil Pressure Warning Light System Wiring Diagram

G11888074

Courtesy of SUBARU OF AMERICA, INC.
