Forester XT, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams & Fuse/Relay Locations
>>
Combination Meter
>>
Wiring Diagram
Combination Meter: Wiring Diagram
Fig 1: Combination Meter Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Combination Meter Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

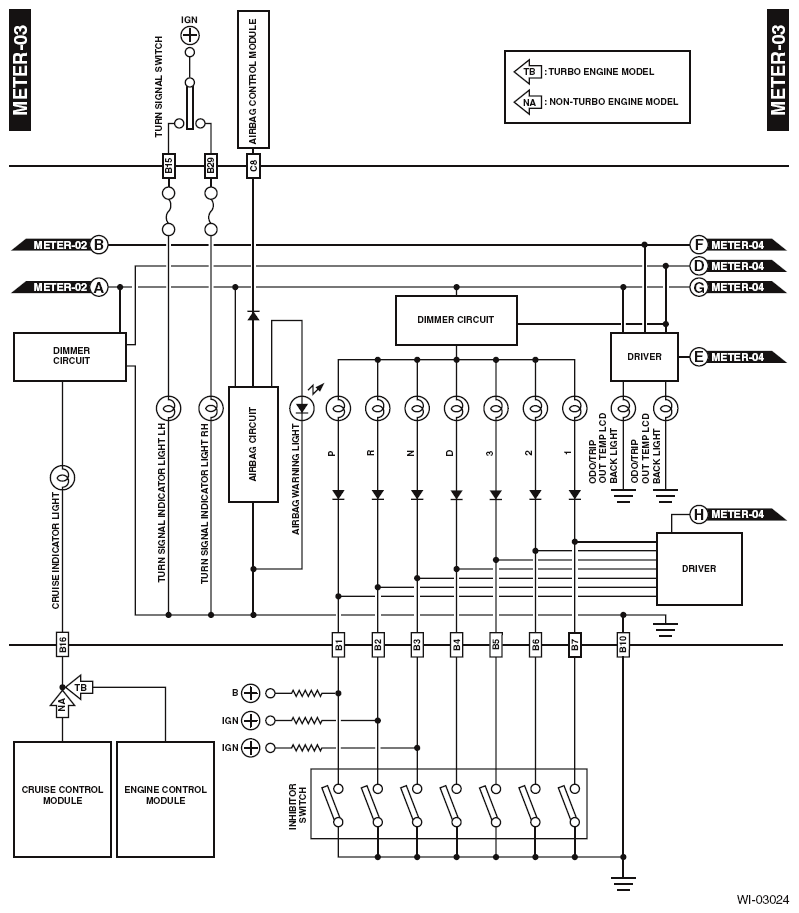

Fig 3: Combination Meter Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Combination Meter Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
