Audio System: Wiring Diagram

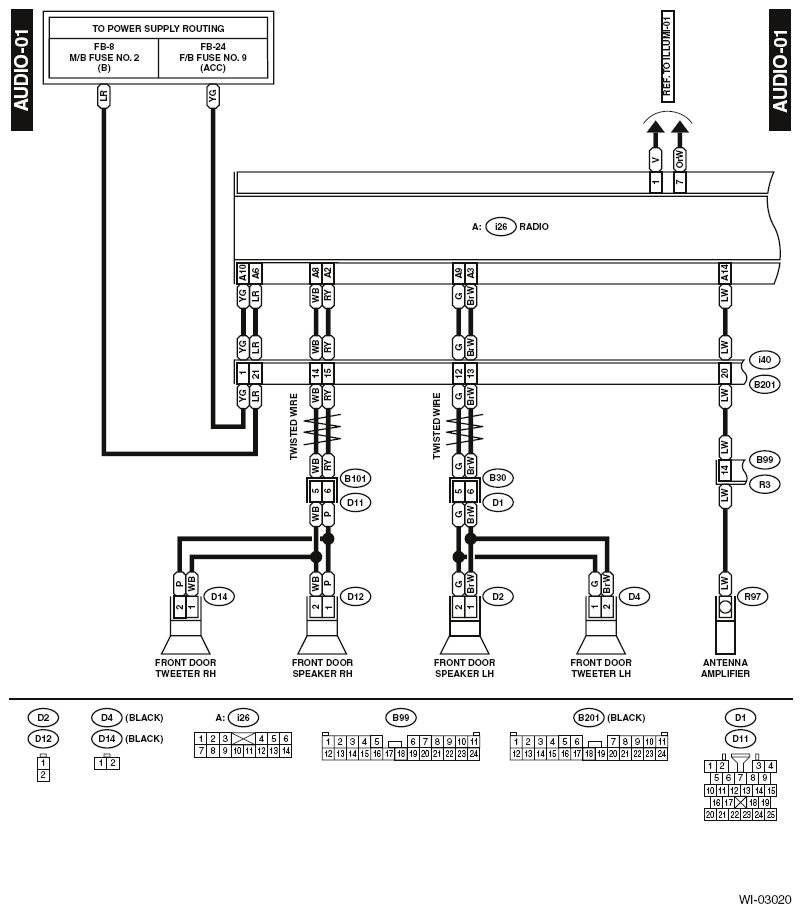

Fig 1: Audio System Wiring Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

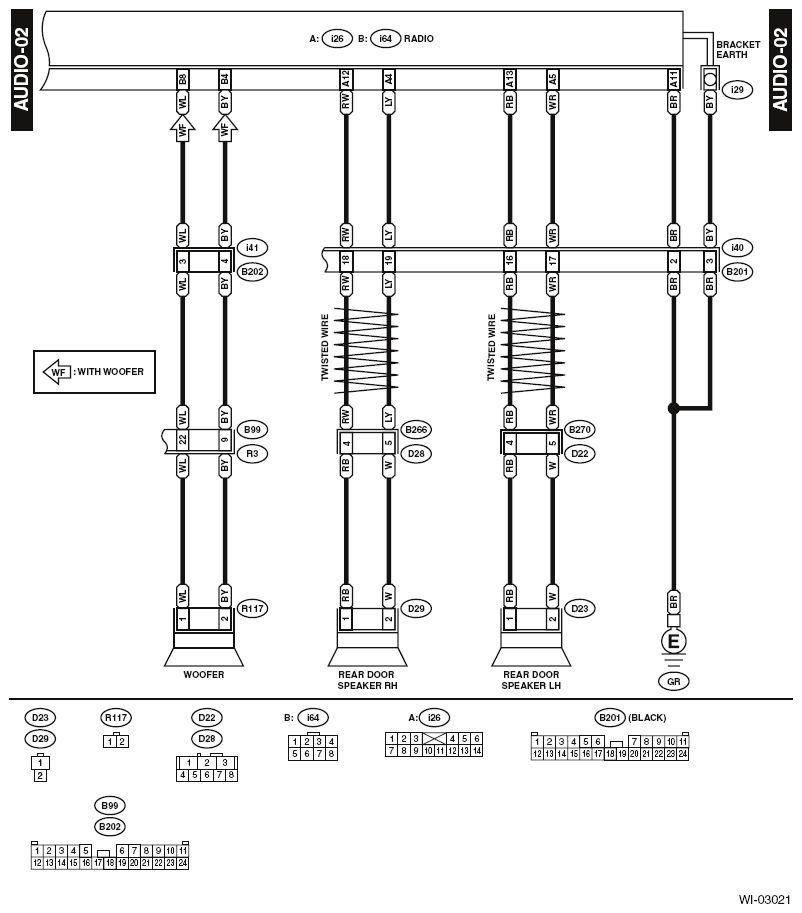

Fig 2: Audio System Wiring Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
