Anti-lock Brake System: Wiring Diagram

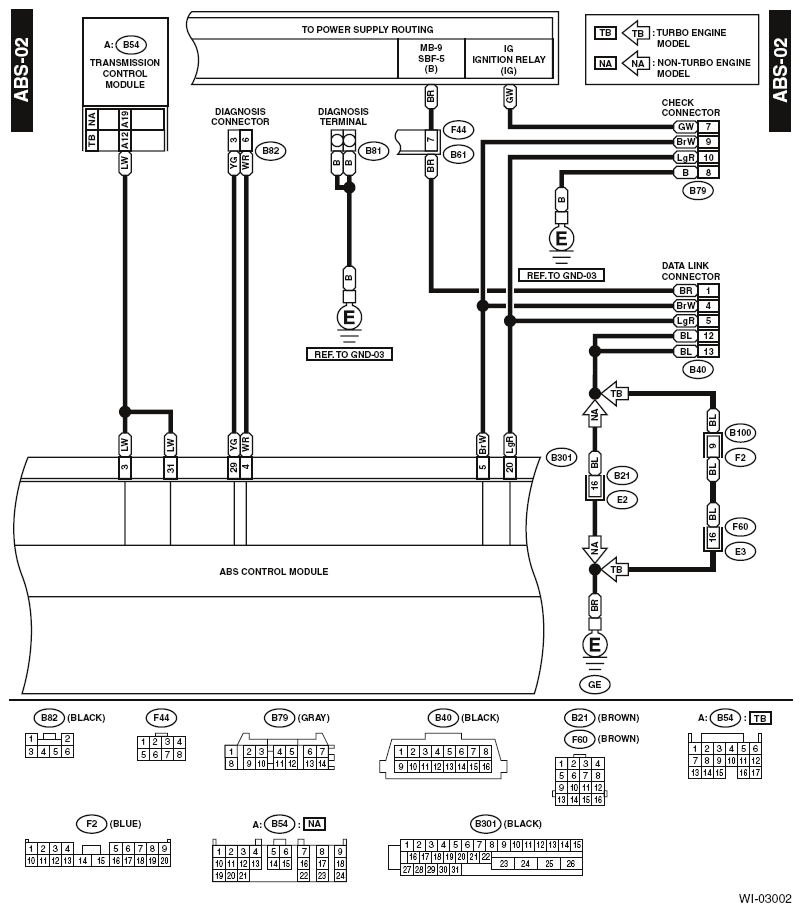

Fig 1: Anti-Lock Brake System Wiring Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

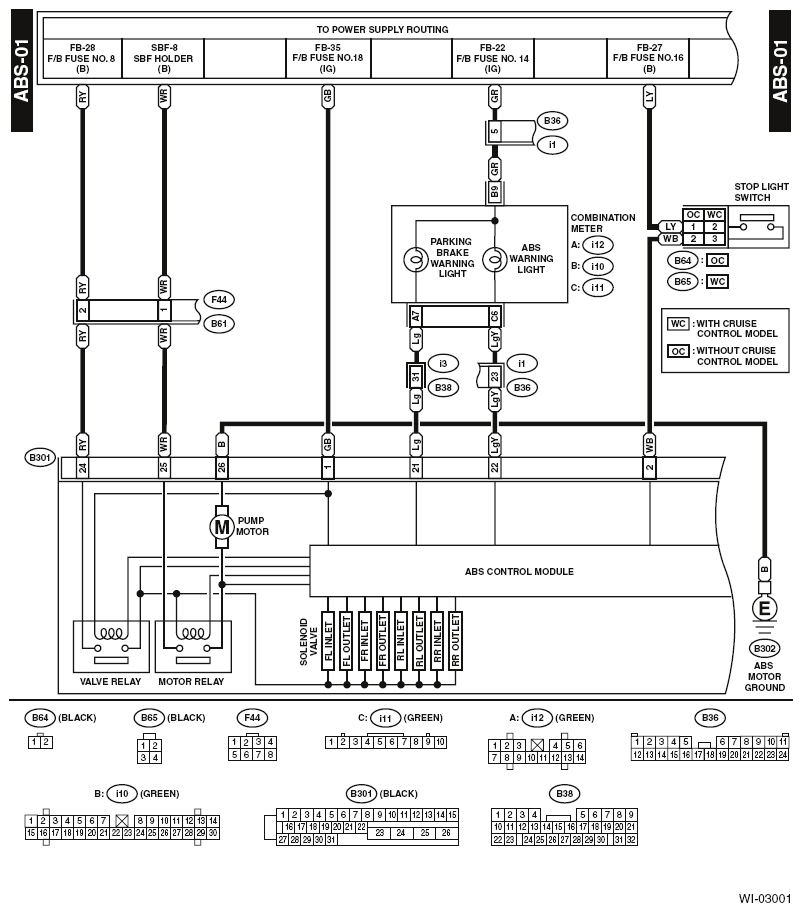

Fig 2: Anti-Lock Brake System Wiring Diagram (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

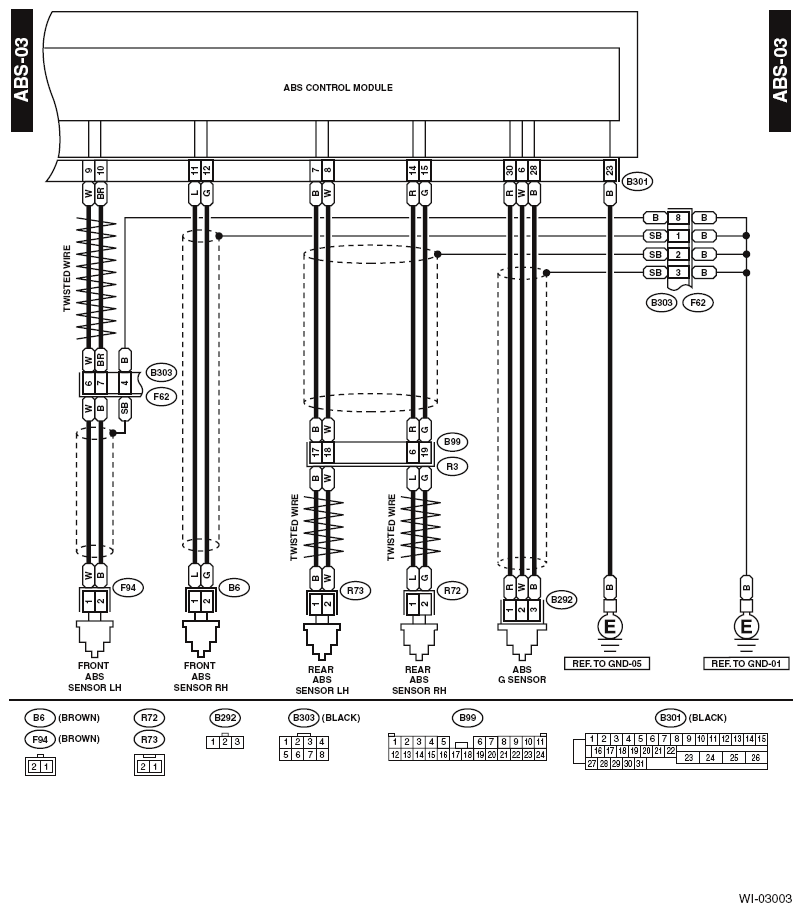

Fig 3: Anti-Lock Brake System Wiring Diagram (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
