Airbag System: Wiring Diagram

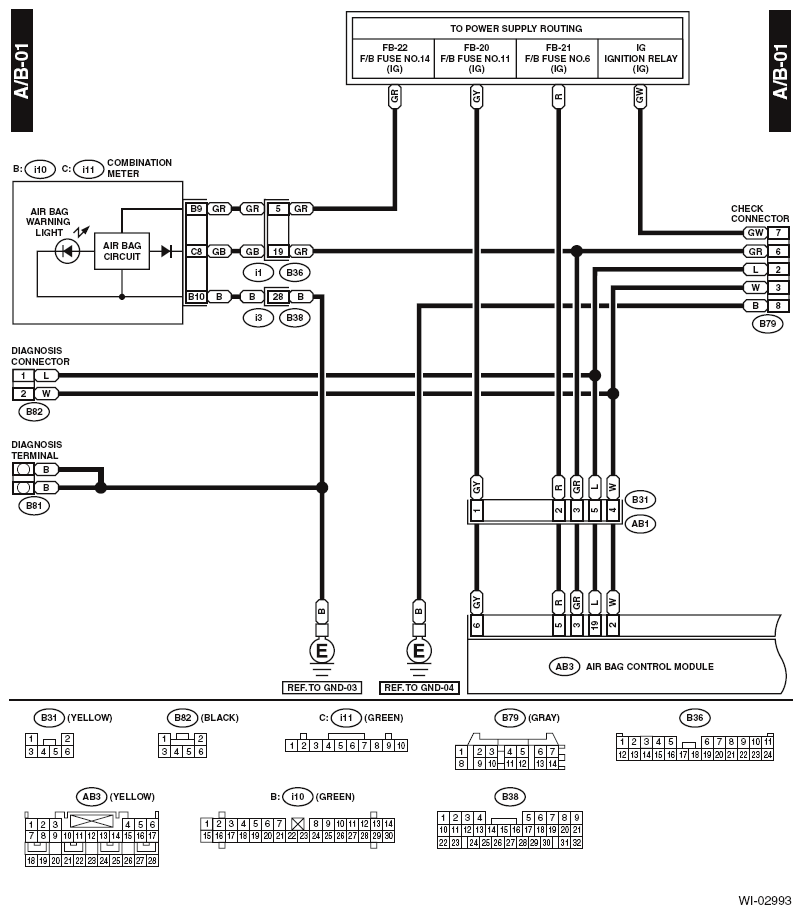

Fig 1: Airbag System Wiring Diagram (1 Of 3)
G11887985Courtesy of SUBARU OF AMERICA, INC.

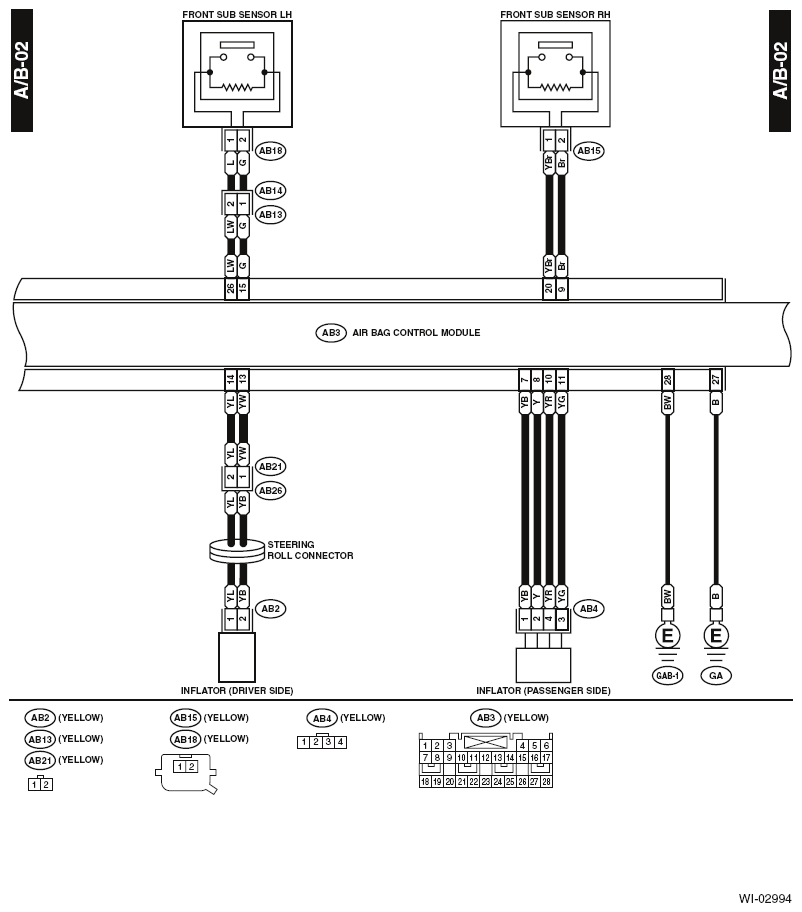

Fig 2: Airbag System Wiring Diagram (2 Of 3)
G11887986Courtesy of SUBARU OF AMERICA, INC.

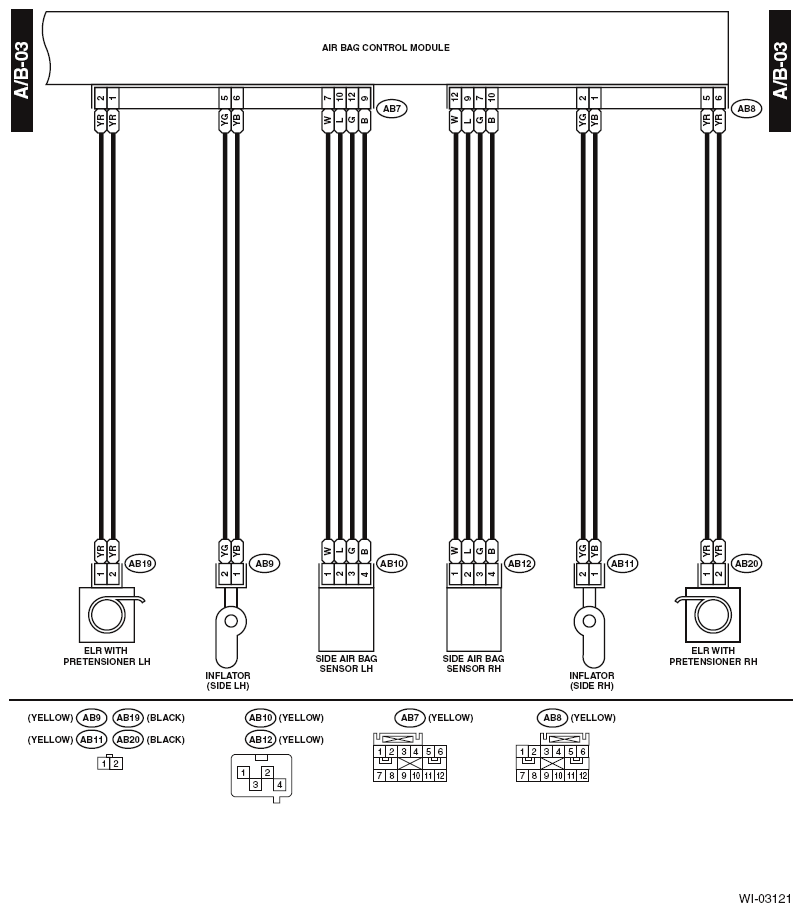

Fig 3: Airbag System Wiring Diagram (3 Of 3)
G11887987Courtesy of SUBARU OF AMERICA, INC.
