Wiper and Washer System (Rear): Wiring Diagram

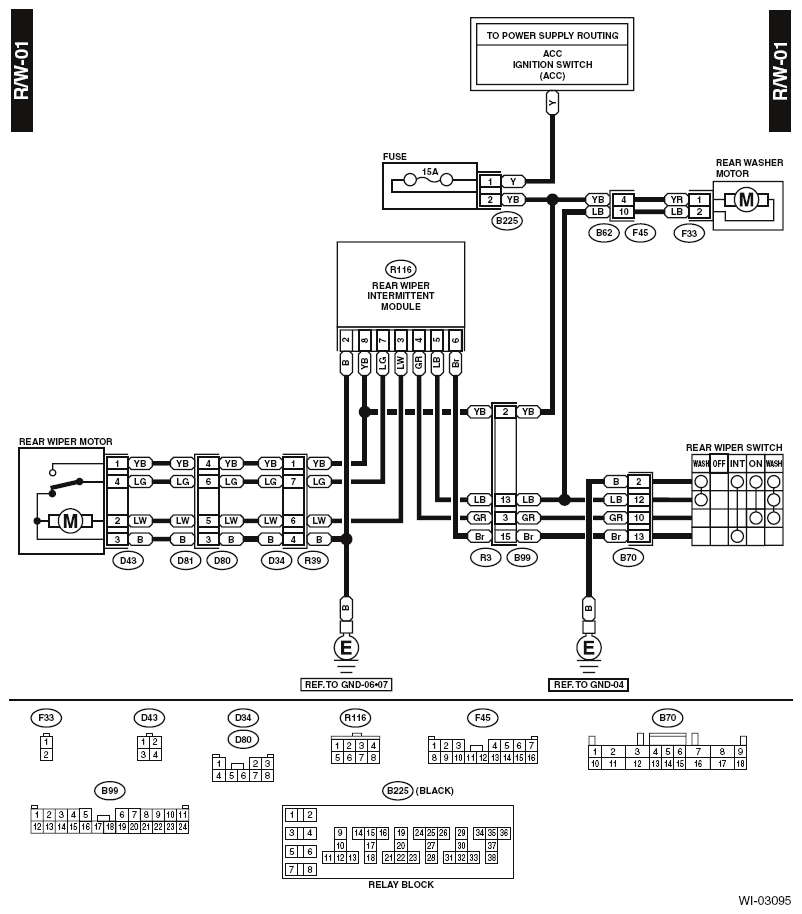

Fig 1: Wiper And Washer System (Rear) Wiring Diagram

G11888094

Courtesy of SUBARU OF AMERICA, INC.
