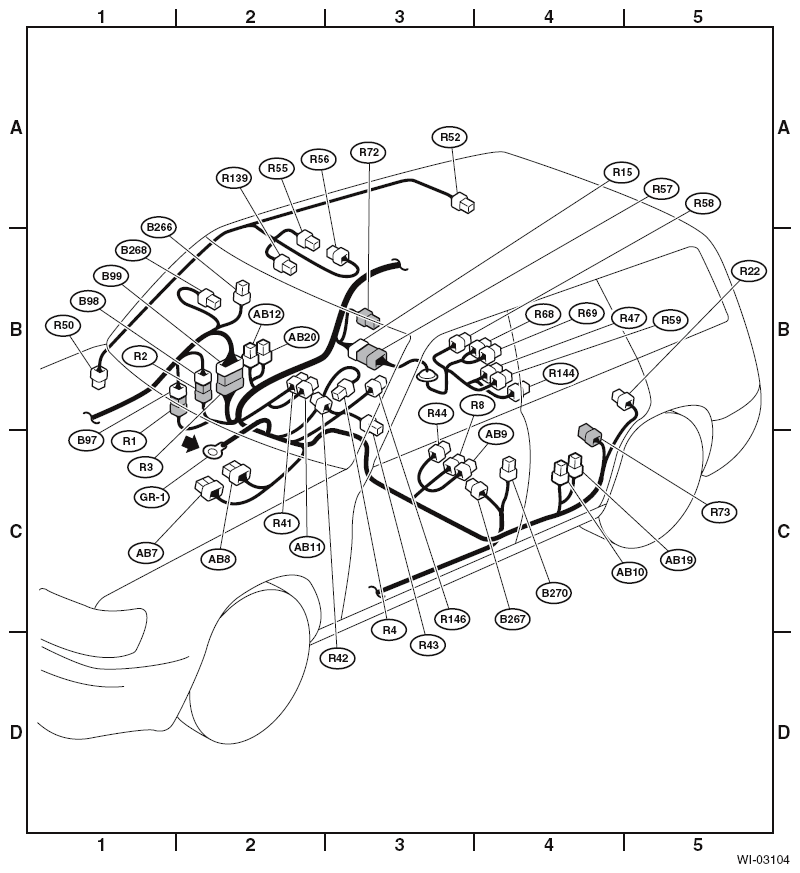

Rear Wiring Harness, Bulkhead Wiring Harness, Roof Cord and Fuel Tank Cord: Location
- Rear Wiring Harness
Connector Connecting to No. Pole Color Area No. Name R1 8 (1) B-2 B97 Bulkhead wiring harness R2 12 (1) B-2 B98 R3 24 (1) B-2 B99 R4 1 (1) B-3 Parking brake switch R8 2 (1) C-4 Seat belt switch R15 16 (1) B-3 R57 Fuel tank cord R22 3 (1) B-5 Rear door switch LH R41 4 Blue B-2 Seat heater RH R42 4 (1) B-3 Seat heater switch RH R43 4 Blue B-3 Seat heater switch LH R44 4 Blue C-3 Seat heater LH R72 2 (1) B-3 Rear ABS wheel speed sensor RH R73 2 (1) C-4 Rear ABS wheel speed sensor LH R146 2 (1) B-3 Rear accessory power supply socket (1) Non-colored - Bulkhead Wiring Harness
Connector Connecting to No. Pole Color Area No. Name B97 8 (1) B-2 R1 Rear wiring harness B98 12 (1) B-2 R2 B99 24 (1) B-2 R3 B266 8 (1) B-2 D28 Rear door cord RH B267 3 (1) C-4 Front door switch LH B268 3 (1) B-2 Front door switch RH B270 8 (1) C-4 D22 Rear door cord LH (1) Non-colored - Roof Cord
Connector Connecting to No. Pole Color Area No. Name R50 6 (1) B-1 B90 Bulkhead wiring harness R52 3 (1) A-3 Room light R55 2 (1) B-2 S2 Sunroof R56 2 (1) B-3 Spot light R139 3 (1) B-2 Compass mirror (1) Non-colored - Fuel Tank Cord
Connector Connecting to No. Pole Color Area No. Name R47 3 (1) B-4 Fuel tank pressure sensor R57 16 (1) B-3 R15 Rear wiring harness R58 6 (1) B-3 Fuel pump R59 2 (1) B-4 Fuel sub level sensor R68 2 (1) B-4 Pressure control solenoid valve R69 2 (1) B-4 Vent control solenoid R144 2 (1) B-4 Fuel tank sensor control valve (1) Non-colored - Airbag Wiring Harness
Connector Connecting to No. Pole Color Area No. Name AB7 12 Yellow C-2 Airbag control module AB8 12 Yellow C-2 Airbag control module AB9 2 Yellow C-4 Seat airbag module LH AB10 4 Yellow C-5 Side sensor LH AB11 2 Yellow B-2 Seat airbag module RH AB12 4 Yellow B-2 Side sensor RH AB19 2 Black C-4 Pretensioner LH AB20 2 Black B-3 Pretensioner RH
