Rear Wiring Harness and Rear Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Name
R16	3	(1)	C-5		Rear door switch RH
R26	6	(1)	C-4		Rear combination light RH
R28	6	(1)	C-1		Rear combination light LH
R30	2	Black	C-4		Diode (Luggage room light)
R32	2	(1)	C-4		Rear accessory power supply socket
R38	4	(1)	C-4	D33	Rear gate cord
R39	4	(1)	C-4	D34	Rear gate cord
R79	6	(1)	D-3		Trailer connector
R97	2	(1)	C-1		Antenna amp
R116	8	(1)	C-4		Rear wiper intermittent module
R117	2	(1)	C-2		Sub woofer
R122	10	(1)	C-4		Fuel pump control module (Turbo Model)
R147	5	(1)	C-3		Ground joint connector
(1) Non-colored

Connector				Connecting to
No.	Pole	Color	Area	No.	Name
D33	2	(1)	C-4	R38	Rear wiring harness
D34	4	(1)	C-4	R39	Rear wiring harness
D39	2	(1)	B-3		High-mounted stop light
D40	1	(1)	B-3		Rear defogger
D43	4	(1)	A-2		Rear wiper motor
D44	2	(1)	A-2		License plate light
D46	2	Black	A-2		Rear gate latch switch
D47	2	(1)	A-1		Rear gate lock actuator cord
D79	1	Black	B-2		Rear defogger
D80	8	(1)	A-3	D81	Rear gate cord
D81	8	(1)	A-3	D80	Rear gate cord
D82	3	(1)	B-3		Luggage room light
(1) Non-colored

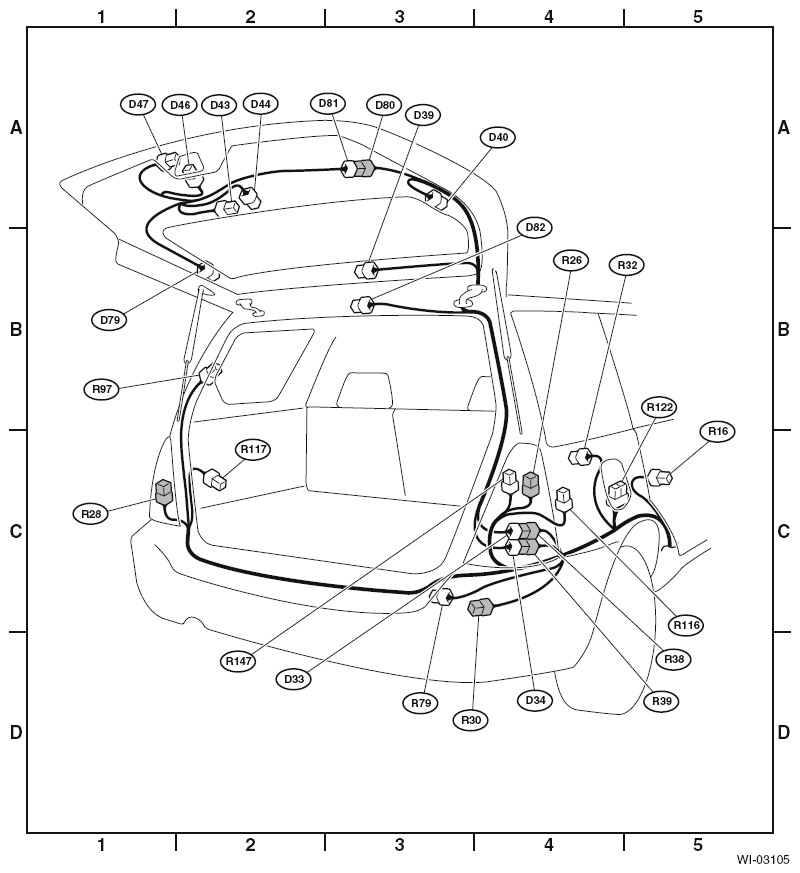

Fig 1: Rear Wiring Harness And Rear Gate Cord Location

Courtesy of SUBARU OF AMERICA, INC.
