Parking Brake and Brake Fluid Level Warning System: Wiring Diagram

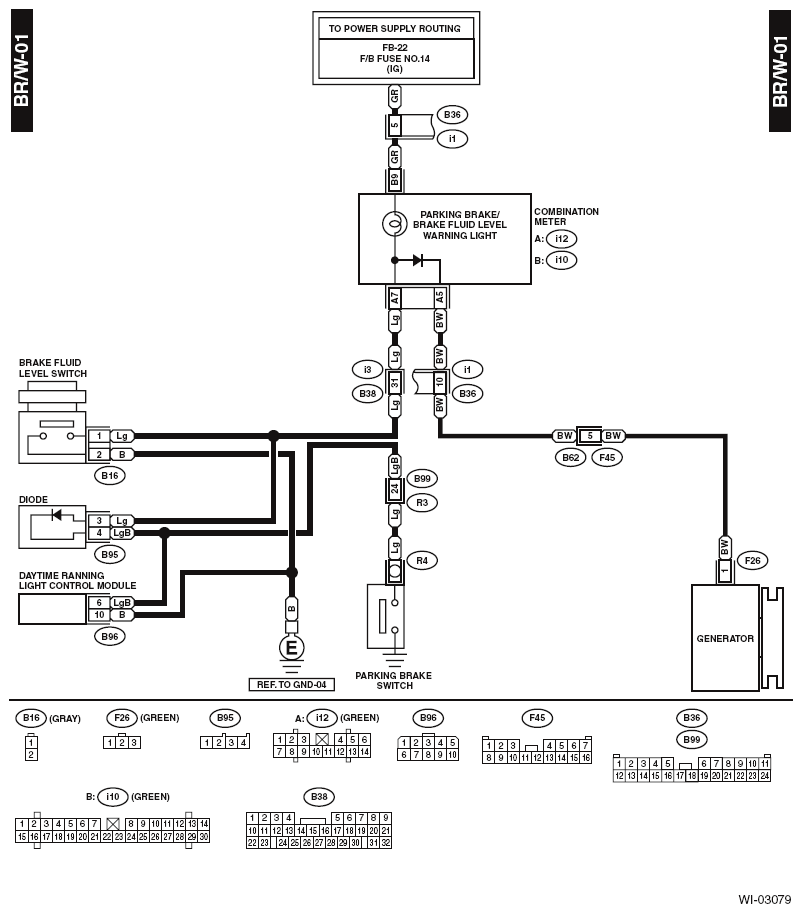

Fig 1: Parking Brake And Brake Fluid Level Warning System Wiring Diagram

G11888076

Courtesy of SUBARU OF AMERICA, INC.
