Instrument Panel Wiring Harness: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Name
i1	24	(1)	C-1	B36	Bulkhead wiring harness
i3	32	(1)	C-1	B38
i10	30	Green	B-2		Combination meter
i11	10	Green	B-2
i12	14	Green	B-3
i15	6	(1)	B-4		Blower fan switch (Manual A/C)
i16	12	(1)	C-4		A/C switch (Manual A/C)
i22	8	(1)	B-4		Hazard switch
i26	14	(1)	B-3		Audio
i27	2	(1)	B-4		CD player illumination light
i29	1	Black	C-4		Audio bracket earth
i40	24	Black	C-4	B201	Bulkhead wiring harness
i41	24	(1)	C-4	B202	Bulkhead wiring harness (Auto A/C)
	20	(1)	C-4	B202	Bulkhead wiring harness (Manual A/C)
i48	16	Gray	C-4		Auto A/C control module
i49	20	Gray	C-4
i51	2	(1)	B-5		Sunload sensor
i55	2	(1)	B-3		Invehicle temperature sensor
i59	7	Green	B-4		Clock
i64	8	Black	B-4		Sub woofer
i65	6	Black	B-4		Air mix actuator (Auto A/C)
(1) Non-colored

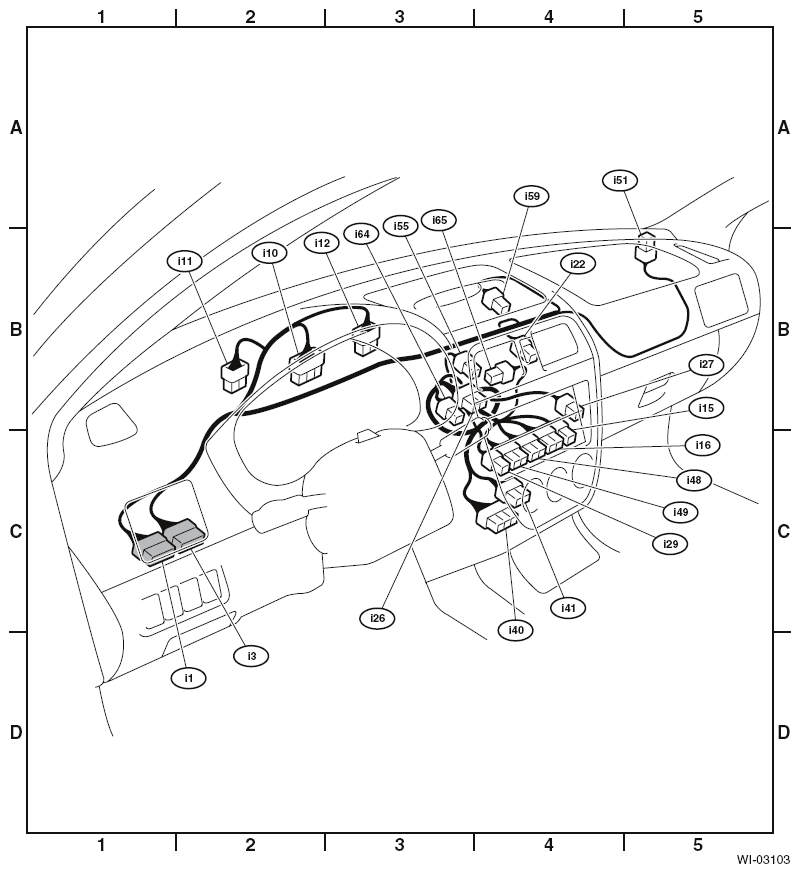

Fig 1: Instrument Panel Wiring Harness Location

Courtesy of SUBARU OF AMERICA, INC.
