Door Cord: Location

Connector

Connecting to

No.

Pole

Color

Area

No.

Name

⁽¹⁾

C-2

B30

Bulkhead wiring harness

⁽¹⁾

C-3

Front door speaker RH

Green

C-3

Front power window motor RH

Black

C-3

Front door tweeter RH

⁽¹⁾

C-3

Remote controlled rearview mirror RH (Without mirror heater)

⁽¹⁾

C-3

Remote controlled rearview mirror RH (With mirror heater)

⁽¹⁾

C-4

Front power window main switch

⁽¹⁾

C-4

Front door lock actuator RH

D11

⁽¹⁾

C-1

B101

Bulkhead wiring harness

D12

⁽¹⁾

C-1

Front door speaker LH

D13

Green

B-2

Front power window motor LH

D14

Black

B-1

Front door tweeter LH

D15

⁽¹⁾

B-1

Remote controlled rearview mirror LH (Without mirror heater)

⁽¹⁾

B-1

Remote controlled rearview mirror LH (With mirror heater)

D17

⁽¹⁾

B-2

Front power window sub switch

D18

⁽¹⁾

B-2

Front door lock actuator LH

D22

⁽¹⁾

C-4

B270

Bulkhead wiring harness

D23

⁽¹⁾

C-4

Rear speaker LH

D24

Green

C-4

Rear power window motor LH

D25

⁽¹⁾

B-4

Rear power window sub switch LH

D26

⁽¹⁾

B-5

Rear door lock actuator LH

D28

⁽¹⁾

B-3

B266

Bulkhead wiring harness

D29

⁽¹⁾

B-3

Rear speaker RH

D30

Green

B-3

Rear power window motor RH

D31

⁽¹⁾

B-3

Rear power window sub switch RH

D32

⁽¹⁾

B-3

Rear door lock actuator RH

D61

⁽¹⁾

C-3

Remote controlled rearview mirror switch

D62

⁽¹⁾

B-2

Front door sub switch

⁽¹⁾	Non-colored

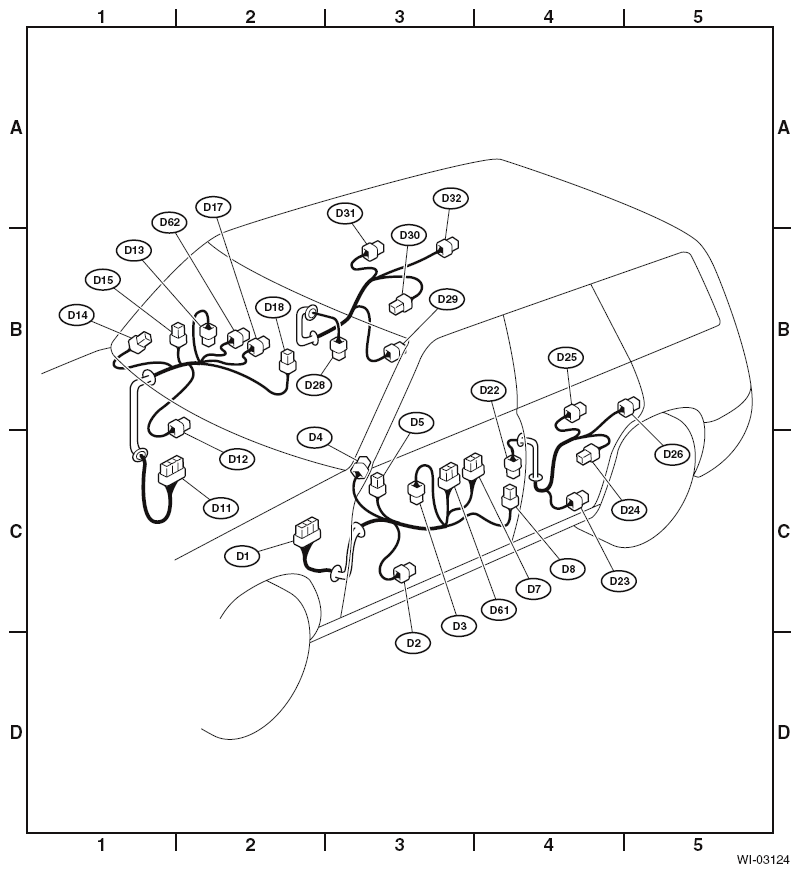

Fig 1: Door Cord Location

Courtesy of SUBARU OF AMERICA, INC.
