Clearance Light and Illumination Light System: Wiring Diagram

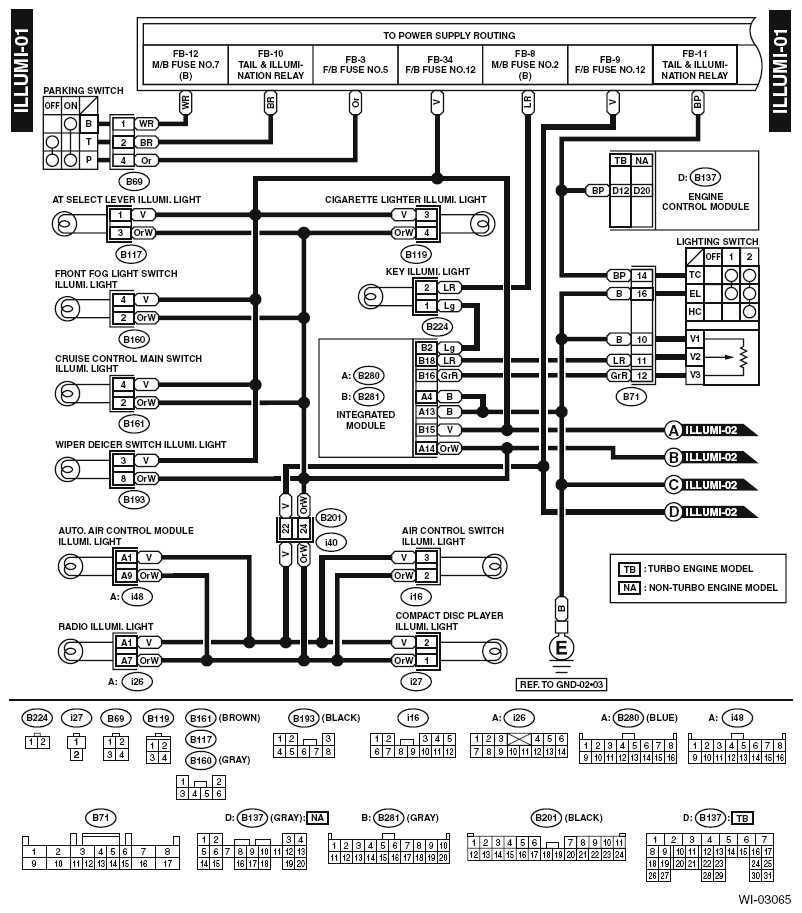

Fig 1: Clearance Light And Illumination Light System Wiring Diagram (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

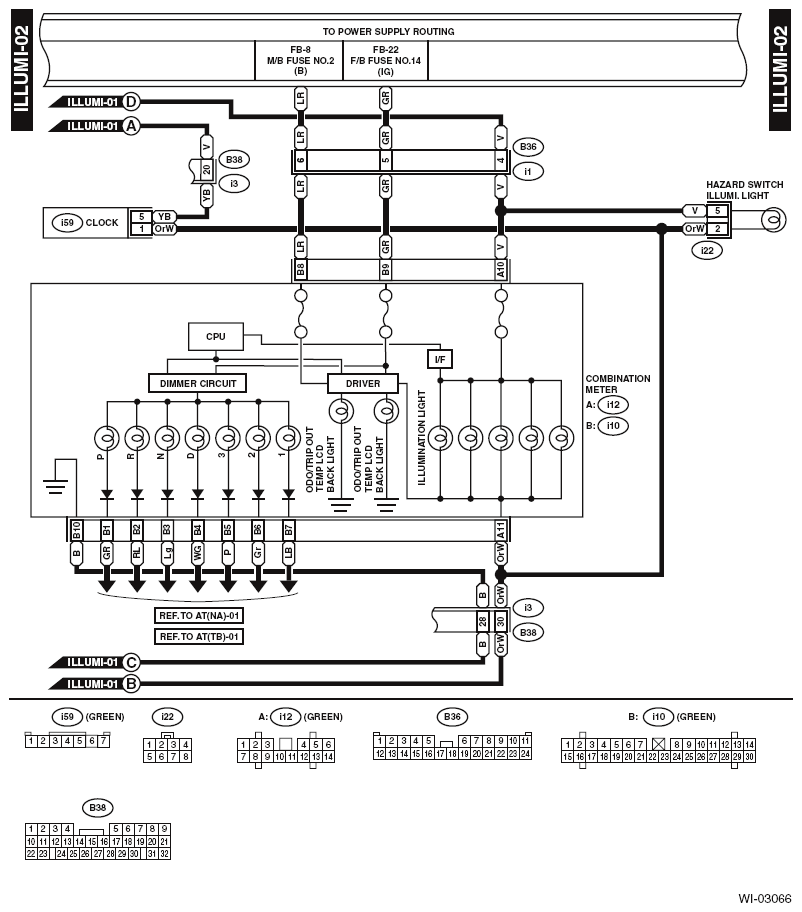

Fig 2: Clearance Light And Illumination Light System Wiring Diagram (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

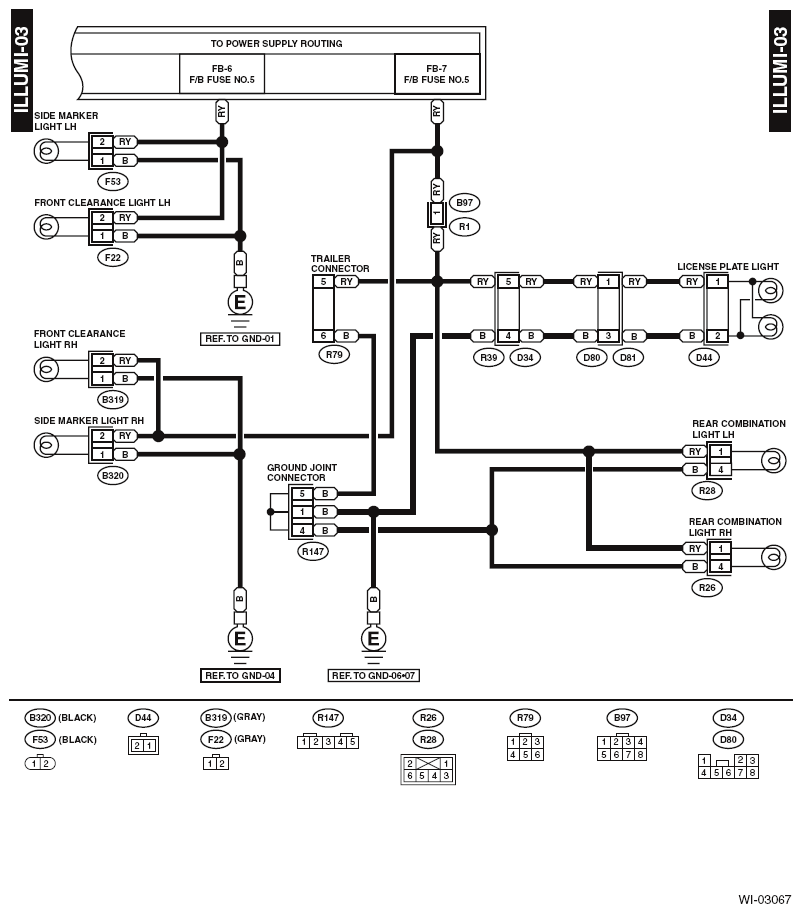

Fig 3: Clearance Light And Illumination Light System Wiring Diagram (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
